Overview
The P89LPC916FDH,129 is an 8-bit microcontroller from NXP USA Inc., part of the LPC900 series. This microcontroller is designed to provide a high level of integration and performance, making it suitable for a variety of embedded system applications. It is based on the 8051 core architecture and features a range of peripherals and interfaces to support diverse application needs.
Key Specifications
| Parameter | Value |
|---|---|
| Core Processor | 8051 |
| Core Size | 8-Bit |
| Program Memory Type | FLASH |
| Program Memory Size | 2KB (2K x 8) |
| RAM Size | 256 x 8 |
| Speed | 18MHz |
| Voltage - Supply (Vcc/Vdd) | 2.4 V ~ 3.6 V |

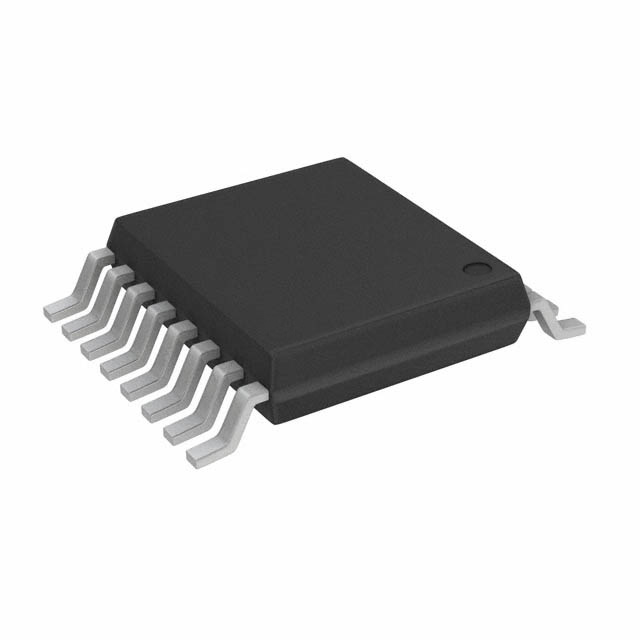

| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Number of I/O | 14 |
| Oscillator Type | Internal |
| Data Converters | A/D 4x8b; D/A 1x8b |
| Connectivity | I²C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
Key Features
- High-performance 8-bit 8051 core with 18 MHz clock speed.
- 2KB of FLASH program memory and 256 bytes of RAM.
- Internal oscillator and support for external clock sources.
- Multiple communication interfaces including I²C, SPI, and UART/USART.
- Integrated peripherals such as Brown-out Detect/Reset, POR, PWM, and WDT.
- Compact 16-TSSOP package with 14 I/O pins.
- Operating temperature range from -40°C to 85°C.
Applications
The P89LPC916FDH,129 is versatile and can be used in various applications, including:
- Industrial control systems.
- Consumer electronics.
- Automotive systems.
- Medical devices.
- IoT devices and smart home appliances.
Q & A
- What is the core processor of the P89LPC916FDH,129?
The core processor is the 8051. - How much program memory does the P89LPC916FDH,129 have?
The P89LPC916FDH,129 has 2KB of FLASH program memory. - What is the maximum clock speed of the P89LPC916FDH,129?
The maximum clock speed is 18 MHz. - What are the supported communication interfaces?
The supported interfaces include I²C, SPI, and UART/USART. - What is the operating temperature range of the P89LPC916FDH,129?
The operating temperature range is from -40°C to 85°C. - What kind of package does the P89LPC916FDH,129 come in?
The P89LPC916FDH,129 comes in a 16-TSSOP package. - Does the P89LPC916FDH,129 have any integrated peripherals?
Yes, it includes Brown-out Detect/Reset, POR, PWM, and WDT. - How many I/O pins does the P89LPC916FDH,129 have?
The P89LPC916FDH,129 has 14 I/O pins. - Is the P89LPC916FDH,129 RoHS compliant?
Yes, the P89LPC916FDH,129 is RoHS compliant. - What is the voltage supply range for the P89LPC916FDH,129?
The voltage supply range is 2.4 V to 3.6 V.
