Overview
The P89LPC915FDH,129 is a single-chip microcontroller produced by NXP USA Inc. This microcontroller is based on a high-performance processor architecture and is available in low-cost packages. It is designed to execute instructions efficiently, making it suitable for a variety of embedded system applications. The P89LPC915FDH,129 is part of the P89LPC915/916/917 family, which offers a range of features and configurations to meet different design requirements.
Key Specifications
| Specification | Value |
|---|---|
| Manufacturer | NXP USA Inc. |
| Part Number | P89LPC915FDH,129 |

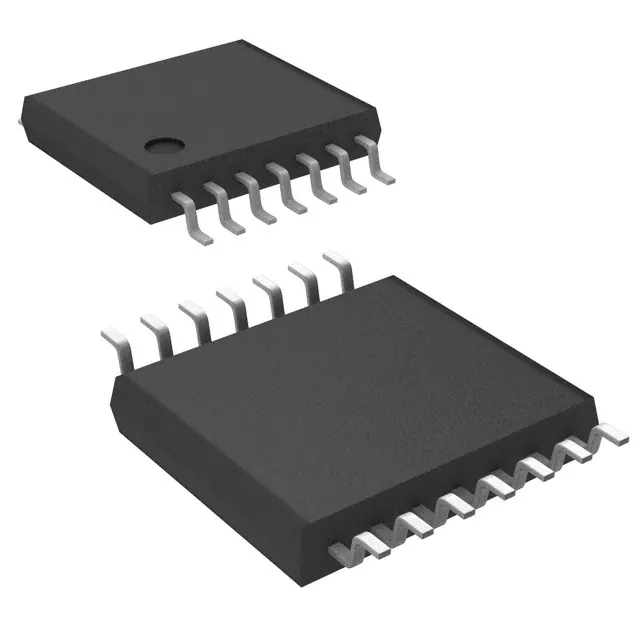

| Package Type | 14-TSSOP |
| Flash Memory | 2 KB |
| Operating Temperature Range | -40 °C to 85 °C |
| Minimum Supply Voltage | 2.4 V |
| Number of ADC Channels | 4 |
| Number of I2C Channels | 1 |
| Number of I/Os | 12 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Key Features
- High-performance processor architecture for efficient instruction execution.
- Low-cost packaging options, including 14-TSSOP.
- 2 KB of flash memory for program storage.
- Operating temperature range from -40 °C to 85 °C, making it suitable for various environmental conditions.
- Minimum supply voltage of 2.4 V, supporting low-power applications.
- Four ADC channels for analog-to-digital conversion.
- One I2C channel for serial communication.
- Twelve I/O pins for interfacing with external devices.
Applications
The P89LPC915FDH,129 microcontroller is versatile and can be used in a wide range of applications, including:
- Industrial control systems: For monitoring and controlling industrial processes.
- Consumer electronics: In devices such as remote controls, appliances, and other consumer products.
- Automotive systems: For various automotive applications requiring low-power and efficient processing.
- Medical devices: In medical equipment that requires precise and reliable control.
- IoT devices: For Internet of Things applications that need low-power and compact microcontrollers.
Q & A
- What is the part number of this microcontroller?
The part number is P89LPC915FDH,129. - Who is the manufacturer of this microcontroller?
The manufacturer is NXP USA Inc. - What is the package type of this microcontroller?
The package type is 14-TSSOP. - How much flash memory does this microcontroller have?
This microcontroller has 2 KB of flash memory. - What is the operating temperature range of this microcontroller?
The operating temperature range is from -40 °C to 85 °C. - What is the minimum supply voltage for this microcontroller?
The minimum supply voltage is 2.4 V. - How many ADC channels does this microcontroller have?
This microcontroller has 4 ADC channels. - How many I2C channels does this microcontroller have?
This microcontroller has 1 I2C channel. - How many I/O pins does this microcontroller have?
This microcontroller has 12 I/O pins. - What is the moisture sensitivity level (MSL) of this microcontroller?
The MSL is 1 (Unlimited).
