Overview

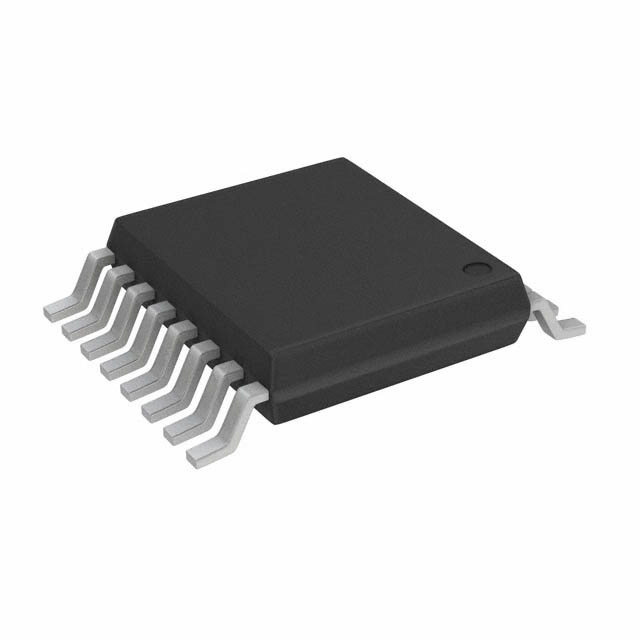

The P89LPC916FDH,118 is an 8-bit microcontroller from NXP Semiconductors, part of the LPC900 series. This microcontroller is designed for a variety of applications requiring low power consumption, compact size, and robust functionality. It features a powerful 80C51 core, making it suitable for embedded systems that need efficient processing and control. The device is packaged in a 16-pin TSSOP (Thin Shrink Small Outline Package) and is RoHS compliant, ensuring environmental sustainability.
Key Specifications
| Parameter | Value |
|---|---|
| Manufacturer | NXP Semiconductors |
| Package/Case | 16-TSSOP |
| Core | 80C51 |
| Data Bus Width | 8 bit |
| Maximum Clock Frequency | 18 MHz |
| Program Memory Size | 2 KB (2K x 8) |
| Data RAM Size | 256 B |
| On Chip ADC | Yes, 4 channels, 8-bit |
| Operating Supply Voltage | 2.4 V to 3.6 V |
| Operating Temperature Range | -40°C to +85°C |
| Interface Type | I2C, SPI, UART/USART |
| Number of Programmable I/Os | 14 |
| Number of Timers | 2 |
| Program Memory Type | Flash |
| Mounting Style | SMD/SMT |
Key Features
- 80C51 Core: The P89LPC916FDH is based on the 80C51 core, providing a high level of compatibility with existing 8051 code and tools.
- Low Power Consumption: Operates within a voltage range of 2.4 V to 3.6 V, making it suitable for battery-powered devices.
- On-Chip ADC: Features a 4-channel, 8-bit analog-to-digital converter for analog signal processing.
- Communication Interfaces: Includes I2C, SPI, and UART/USART interfaces for versatile communication capabilities.
- Programmable I/Os: Offers 14 programmable I/O pins, providing flexibility in application design.
- Timers and Peripherals: Equipped with two timers and additional peripherals such as brown-out detect/reset, LED, POR, PWM, and WDT.
Applications
- Embedded Systems: Suitable for a wide range of embedded system applications due to its compact size and low power consumption.
- Industrial Automation: Can be used in industrial automation for control and monitoring tasks.
- Consumer Electronics: Applicable in consumer electronics such as remote controls, appliances, and other handheld devices.
- Automotive Systems: Used in automotive systems for various control and monitoring functions.
- Medical Devices: Suitable for medical devices that require low power and compact design.
Q & A
- Q: What is the core architecture of the P89LPC916FDH microcontroller?
A: The P89LPC916FDH is based on the 80C51 core. - Q: What is the maximum clock frequency of the P89LPC916FDH?
A: The maximum clock frequency is 18 MHz. - Q: How much program memory does the P89LPC916FDH have?
A: It has 2 KB (2K x 8) of program memory. - Q: What is the operating voltage range of the P89LPC916FDH?
A: The operating voltage range is from 2.4 V to 3.6 V. - Q: Does the P89LPC916FDH have an on-chip ADC?
A: Yes, it features a 4-channel, 8-bit analog-to-digital converter. - Q: What communication interfaces are available on the P89LPC916FDH?
A: It includes I2C, SPI, and UART/USART interfaces. - Q: How many programmable I/O pins does the P89LPC916FDH have?
A: It has 14 programmable I/O pins. - Q: What is the package type of the P89LPC916FDH?
A: It is packaged in a 16-pin TSSOP (Thin Shrink Small Outline Package). - Q: Is the P89LPC916FDH RoHS compliant?
A: Yes, it is RoHS compliant. - Q: What is the operating temperature range of the P89LPC916FDH?
A: The operating temperature range is from -40°C to +85°C.
