Overview

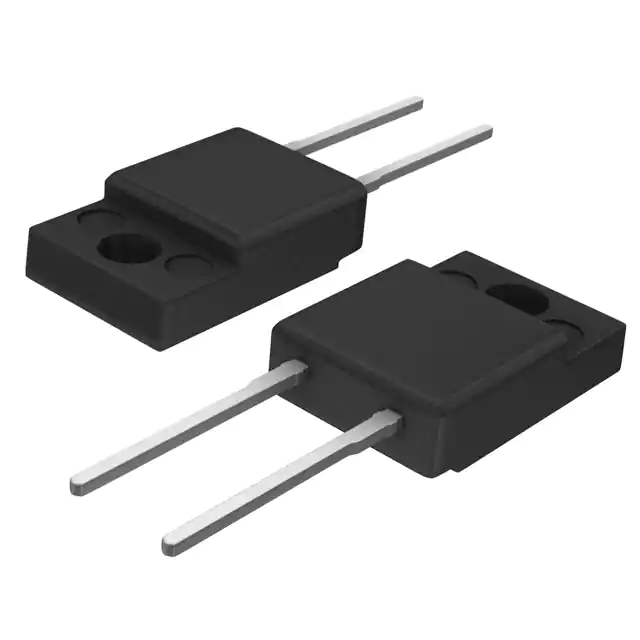

The BY459X-1500,127 is a high-voltage, fast recovery diode manufactured by NXP USA Inc. This diode is designed for general-purpose applications and is known for its high reliability and performance in various electrical systems. It features a TO-220F package, making it suitable for through-hole mounting. The diode is part of NXP's extensive range of discrete semiconductor products, offering robust solutions for power management and rectification needs.
Key Specifications
| Parameter | Value |
|---|---|
| Manufacturer | NXP USA Inc. |
| Part Number | BY459X-1500,127 |
| Description | DIODE GEN PURP 1.5KV 12A TO220F |
| Voltage - DC Reverse (Vr) (Max) | 1500V (1.5kV) |
| Voltage - Forward (Vf) (Max) @ If | 1.3V @ 6.5A |
| Current - Average Rectified (Io) | 12A (DC) |
| Reverse Recovery Time (trr) | 350ns |
| Operating Temperature - Junction | 150°C (Max) |
| Mounting Type | Through Hole |
| Package / Case | TO-220F |
| Diode Type | Standard |
| Current - Reverse Leakage @ Vr | 250µA @ 1300V |
Key Features
- High Voltage Capability: The diode can handle a maximum DC reverse voltage of 1500V, making it suitable for high-voltage applications.
- Fast Recovery Time: With a reverse recovery time of 350ns, this diode is ideal for applications requiring fast switching times.
- High Current Rating: It has an average rectified current rating of 12A, making it suitable for high-current applications.
- Through-Hole Mounting: The TO-220F package allows for easy through-hole mounting, enhancing mechanical stability and heat dissipation.
- High Operating Temperature: The diode can operate up to a junction temperature of 150°C, ensuring reliability in demanding environments.
Applications
- Power Supplies: Suitable for use in power supply units due to its high voltage and current ratings.
- Rectifier Circuits: Ideal for rectification in AC-DC conversion circuits.
- Motor Control: Can be used in motor control circuits where high voltage and current are required.
- Industrial Automation: Used in various industrial automation applications requiring reliable and high-performance diodes.
Q & A
- What is the maximum DC reverse voltage of the BY459X-1500,127 diode?
The maximum DC reverse voltage is 1500V (1.5kV).
- What is the forward voltage drop (Vf) of the BY459X-1500,127 diode?
The forward voltage drop (Vf) is 1.3V at 6.5A.
- What is the average rectified current (Io) rating of the BY459X-1500,127 diode?
The average rectified current (Io) rating is 12A (DC).
- What is the reverse recovery time (trr) of the BY459X-1500,127 diode?
The reverse recovery time (trr) is 350ns.
- What is the operating temperature range of the BY459X-1500,127 diode?
The junction temperature can operate up to 150°C (Max).
- What type of package does the BY459X-1500,127 diode come in?
The diode comes in a TO-220F package.
- Is the BY459X-1500,127 diode suitable for through-hole mounting?
- What is the current - reverse leakage @ Vr for the BY459X-1500,127 diode?
The current - reverse leakage @ Vr is 250µA @ 1300V.
- What are some common applications of the BY459X-1500,127 diode?
- Who is the manufacturer of the BY459X-1500,127 diode?
