Overview
The BY459X-1500S,127 is a high-voltage, general-purpose rectifier diode manufactured by NXP USA Inc. This diode is designed for applications requiring fast recovery times and high current handling. It features a glass-passivated double diffused structure, ensuring reliable performance in various electrical systems.
Key Specifications
| Parameter | Value |
|---|---|
| Voltage - DC Reverse (Vrrm) | 1500 V |
| Current - Average Rectified (Io) | 10 A |
| Voltage - Forward (Vf) (Max) @ If | 1.35 V @ 6.5 A |
| Speed | Fast Recovery <= 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 220 ns |

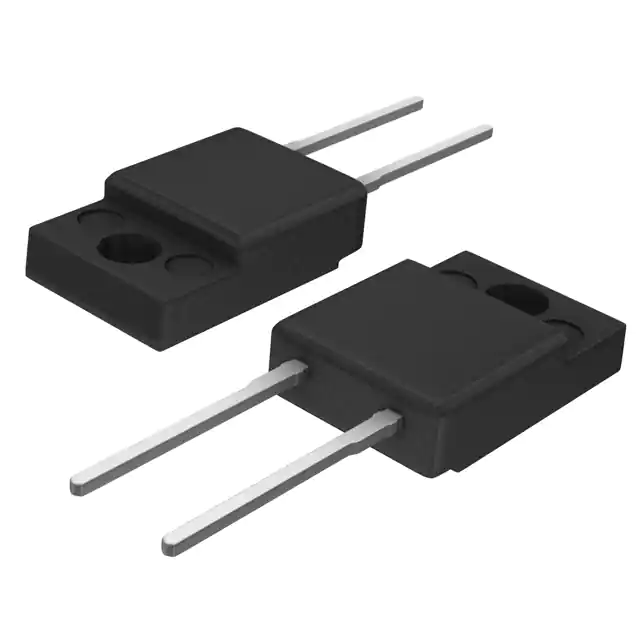

| Package / Case | TO-220-2 Full Pack |
| Mounting Type | Through Hole |
Key Features
- High-voltage capability up to 1500 V
- Fast recovery time of <= 500ns
- High current handling of up to 10 A
- Glass-passivated double diffused structure for reliability
- Through-hole mounting in TO-220-2 Full Pack package
Applications
The BY459X-1500S,127 is suitable for a variety of high-voltage applications, including power supplies, motor control circuits, and other industrial and automotive systems where fast recovery and high current handling are essential.
Q & A
- What is the maximum DC reverse voltage of the BY459X-1500S,127 diode?
The maximum DC reverse voltage is 1500 V. - What is the average rectified current rating of this diode?
The average rectified current rating is 10 A. - What is the forward voltage drop at 6.5 A?
The forward voltage drop at 6.5 A is 1.35 V. - What is the reverse recovery time of this diode?
The reverse recovery time is 220 ns. - In what package is the BY459X-1500S,127 diode available?
The diode is available in the TO-220-2 Full Pack package. - What is the mounting type of this diode?
The mounting type is through-hole. - What are the key applications for this diode?
The key applications include power supplies, motor control circuits, and other industrial and automotive systems. - Is the BY459X-1500S,127 diode suitable for high-frequency applications?
Yes, due to its fast recovery time, it is suitable for high-frequency applications. - What is the structure of the BY459X-1500S,127 diode?
The diode features a glass-passivated double diffused structure. - Is the BY459X-1500S,127 diode RoHS compliant?
Yes, the diode is RoHS compliant.
