Overview

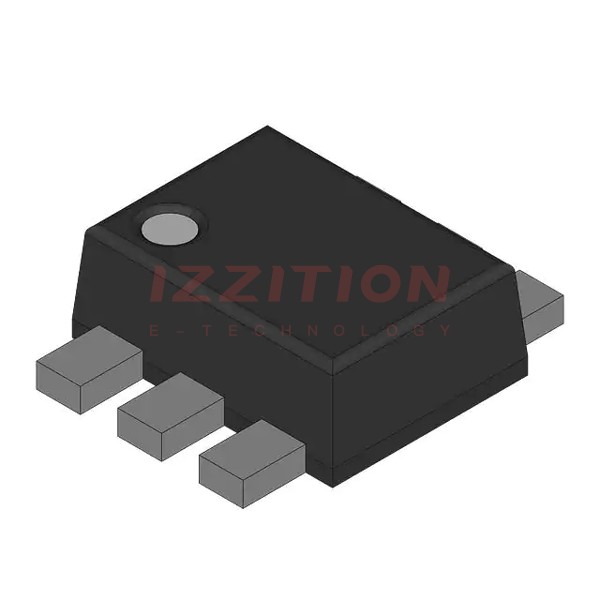

The BAS40-07,115 is a discrete semiconductor product manufactured by NXP USA Inc. It is a single diode rectifier, designed to meet various electrical and electronic application needs. This component is part of NXP's extensive range of diodes, known for their reliability and performance.
Key Specifications
| Parameter | Value |
|---|---|
| Part Number | BAS40-07,115 |
| Manufacturer | NXP USA Inc. |
| Category | Discrete Semiconductor Products - Diodes - Rectifiers - Single |
| Forward Current (IF) | 200 mA |
| Reverse Voltage (VR) | 70 V |
| Forward Voltage (VF) | 1.1 V at 200 mA |
| Package Type | SOT23 |
| Operating Temperature Range | -55°C to 150°C |
Key Features
- Low forward voltage drop (VF) of 1.1 V at 200 mA, ensuring efficient operation.
- High reverse voltage (VR) of 70 V, providing robust protection against reverse voltage conditions.
- Compact SOT23 package, suitable for space-constrained applications.
- Wide operating temperature range from -55°C to 150°C, making it versatile for various environments.
- High reliability and durability, typical of NXP semiconductor products.
Applications
The BAS40-07,115 diode is suitable for a variety of applications, including:
- General-purpose rectification in power supplies and DC-DC converters.
- Clamping and protection circuits to prevent voltage spikes.
- Signal rectification and detection in communication systems.
- Automotive and industrial control systems where reliability and robustness are critical.
Q & A
- What is the part number of this diode?
The part number of this diode is BAS40-07,115. - Who is the manufacturer of the BAS40-07,115?
The manufacturer is NXP USA Inc. - What is the forward current rating of the BAS40-07,115?
The forward current rating is 200 mA. - What is the reverse voltage rating of the BAS40-07,115?
The reverse voltage rating is 70 V. - What is the typical forward voltage drop of the BAS40-07,115?
The typical forward voltage drop is 1.1 V at 200 mA. - What package type is the BAS40-07,115 available in?
The BAS40-07,115 is available in the SOT23 package. - What is the operating temperature range of the BAS40-07,115?
The operating temperature range is from -55°C to 150°C. - What are some common applications of the BAS40-07,115?
Common applications include general-purpose rectification, clamping and protection circuits, signal rectification, and automotive and industrial control systems. - Why is the BAS40-07,115 preferred in many applications?
The BAS40-07,115 is preferred due to its low forward voltage drop, high reverse voltage rating, compact package, and wide operating temperature range. - Where can I find detailed specifications for the BAS40-07,115?
Detailed specifications can be found on official NXP websites, as well as on distributor websites such as Digi-Key, Mouser, and Cytech Systems.
