PTVS22VS1UR/8X
  • Share:

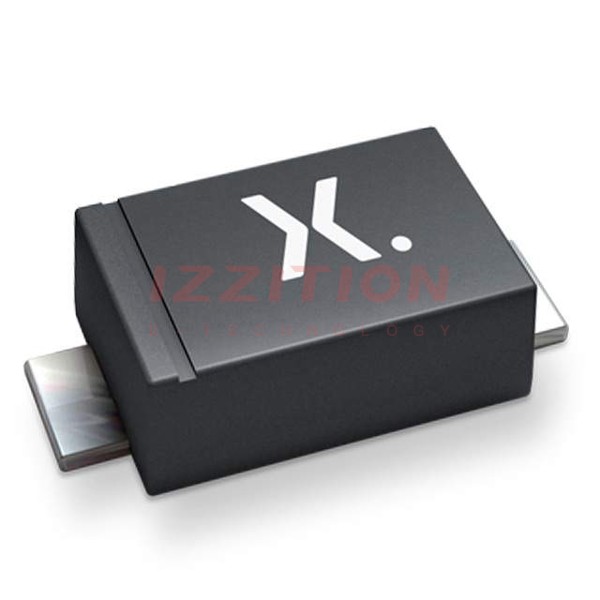

Nexperia USA Inc. PTVS22VS1UR/8X

Manufacturer No:
PTVS22VS1UR/8X
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:
TVS DIODE 22VWM 35.5VC CFP3
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The PTVS22VS1UR/8X is a Transient Voltage Suppressor (TVS) device manufactured by Nexperia USA Inc. This component is designed to provide robust protection against voltage transients and electrostatic discharges (ESD) in high-speed interfaces and general-purpose applications. It is part of the PTVSxS1UR series, known for its low capacitance and high reliability.

Key Specifications

ParameterValue
Type NumberPTVS22VS1UR
Package VersionSOD123W
Pulse Power (PPM) @ 10/1000 µs [max]400 W
VRWM (V)22 V
ConfigurationUnidirectional
Number of Lines1
VBR [min] (V)24.4 V
VBR [max] (V)26.9 V
VCL @ IPPM 10/1000 µs [max] (V)35.5 V
IPPM @ 10/1000 µs [max] (A)11.3 A
IRM [max] (µA)0.1 µA
Tj [max] (°C)150 °C

Key Features

  • Low capacitance, making it suitable for high-speed interfaces.
  • High pulse power rating of 400 W to handle transient voltage surges.
  • Unidirectional configuration for single-line protection.
  • Compact SOD123W package for space-efficient designs.
  • High junction temperature rating of up to 150 °C, ensuring reliability in harsh environments.
  • Low leakage current (IRM) of 0.1 µA, minimizing power consumption.

Applications

The PTVS22VS1UR/8X is ideal for various applications requiring robust ESD and transient voltage protection, including:

  • High-speed data interfaces such as USB, HDMI, and Ethernet.
  • Automotive systems where transient voltages are common.
  • Industrial control systems and automation.
  • Consumer electronics requiring ESD protection.
  • Telecommunication equipment and networks.

Q & A

  1. What is the primary function of the PTVS22VS1UR/8X?
    The primary function is to protect electronic circuits from transient voltage surges and electrostatic discharges (ESD).
  2. What is the maximum pulse power rating of the PTVS22VS1UR/8X?
    The maximum pulse power rating is 400 W.
  3. What is the package type of the PTVS22VS1UR/8X?
    The package type is SOD123W.
  4. What is the configuration of the PTVS22VS1UR/8X?
    The configuration is unidirectional.
  5. What is the minimum breakdown voltage (VBR) of the PTVS22VS1UR/8X?
    The minimum breakdown voltage is 24.4 V.
  6. What is the maximum clamping voltage (VCL) at the specified pulse current?
    The maximum clamping voltage is 35.5 V.
  7. What is the maximum junction temperature (Tj) of the PTVS22VS1UR/8X?
    The maximum junction temperature is 150 °C.
  8. What are some common applications for the PTVS22VS1UR/8X?
    Common applications include high-speed data interfaces, automotive systems, industrial control systems, consumer electronics, and telecommunication equipment.
  9. What is the leakage current (IRM) of the PTVS22VS1UR/8X?
    The leakage current is 0.1 µA.
  10. Where can I find detailed specifications and documentation for the PTVS22VS1UR/8X?
    Detailed specifications and documentation can be found on the Nexperia website or through authorized distributors like Digi-Key, Mouser, etc.

Product Attributes

Type:Zener
Unidirectional Channels:1
Bidirectional Channels:-
Voltage - Reverse Standoff (Typ):22V
Voltage - Breakdown (Min):24.4V
Voltage - Clamping (Max) @ Ipp:35.5V
Current - Peak Pulse (10/1000µs):11.3A
Power - Peak Pulse:400W
Power Line Protection:No
Applications:Automotive
Capacitance @ Frequency:-
Operating Temperature:-55°C ~ 150°C (TA)
Mounting Type:Surface Mount
Package / Case:SOD-123W
Supplier Device Package:SOD-123W
0 Remaining View Similar

In Stock

$0.11
2,935

Please send RFQ , we will respond immediately.

Same Series
RD15S10H00/AA
RD15S10H00/AA
CONN D-SUB RCPT 15POS CRIMP
CBC46W4S10G0X/AA
CBC46W4S10G0X/AA
CONN D-SUB RCPT 46POS CRIMP
RD15S10HT20/AA
RD15S10HT20/AA
CONN D-SUB RCPT 15POS CRIMP
RD15S10HV50/AA
RD15S10HV50/AA
CONN D-SUB RCPT 15POS CRIMP
CBC47W1S10000
CBC47W1S10000
CONN D-SUB RCPT 47POS CRIMP
DD26S20000
DD26S20000
CONN D-SUB HD RCPT 26P SLDR CUP
DD26S2S5000
DD26S2S5000
CONN D-SUB HD RCPT 26P SLDR CUP
DD44S32S0TX
DD44S32S0TX
CONN D-SUB HD RCPT 44P VERT SLDR
DD44S32S600X/AA
DD44S32S600X/AA
CONN D-SUB HD RCPT 44P VERT SLDR
DD44S32S60TX
DD44S32S60TX
CONN D-SUB HD RCPT 44P VERT SLDR
DD44S32S60V30
DD44S32S60V30
CONN D-SUB HD RCPT 44P VERT SLDR
DD44S32S0V5X
DD44S32S0V5X
CONN D-SUB HD RCPT 44P VERT SLDR

Similar Products

Part Number PTVS22VS1UR/8X PTVS24VS1UR/8X PTVS26VS1UR/8X PTVS12VS1UR/8X PTVS20VS1UR/8X
Manufacturer Nexperia USA Inc. Nexperia USA Inc. Nexperia USA Inc. Nexperia USA Inc. Nexperia USA Inc.
Product Status Active Active Active Active Active
Type Zener Zener Zener Zener Zener
Unidirectional Channels 1 1 1 1 1
Bidirectional Channels - - - - -
Voltage - Reverse Standoff (Typ) 22V 24V (Max) 26V 12V (Max) 20V (Max)
Voltage - Breakdown (Min) 24.4V 26.7V 28.9V 13.3V 22.2V
Voltage - Clamping (Max) @ Ipp 35.5V 38.9V 42.1V 19.9V 32.4V
Current - Peak Pulse (10/1000µs) 11.3A 10.3A 9.5A 20.1A 12.3A
Power - Peak Pulse 400W 400W 400W 400W 400W
Power Line Protection No No No No No
Applications Automotive Automotive Automotive Automotive Automotive
Capacitance @ Frequency - - - - -
Operating Temperature -55°C ~ 150°C (TA) -55°C ~ 150°C (TA) -55°C ~ 150°C (TA) -55°C ~ 150°C (TA) -55°C ~ 150°C (TA)
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
Package / Case SOD-123W SOD-123W SOD-123W SOD-123W SOD-123W
Supplier Device Package SOD-123W SOD-123W SOD-123W SOD-123W SOD-123W
