Overview

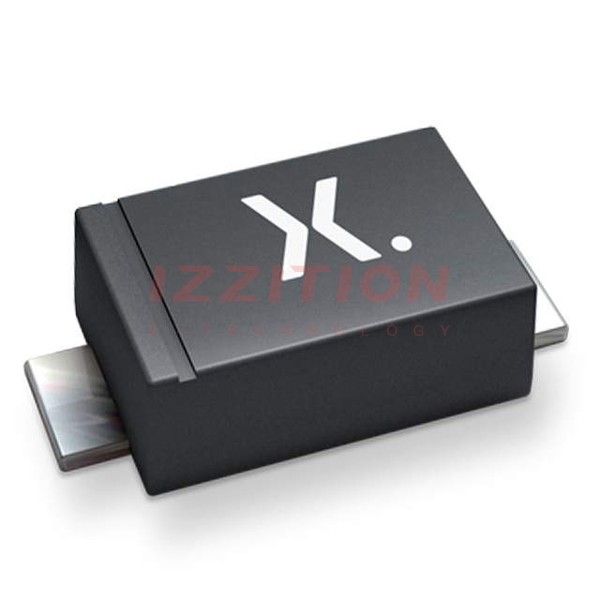

The PMEG3020ER-QX is a Schottky rectifier diode produced by Nexperia USA Inc. This component is designed to offer high efficiency and low forward voltage drop, making it suitable for a variety of power management and rectification applications. The PMEG3020ER-QX is part of Nexperia's MEGA Schottky barrier rectifier family, known for its reliability and performance in demanding environments.
Key Specifications
| Parameter | Value |
|---|---|
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Current - Average Rectified (Io) | 2 A |
| Current - Reverse Leakage @ Vr | 1.5 mA @ 30 V |
| Capacitance @ Vr, F | 170 pF @ 1 V, 1 MHz |
| Package Type | SOD-123W |
Key Features
- Low forward voltage drop (VF) for high efficiency.
- High current handling capability of up to 2 A.
- Low reverse leakage current of 1.5 mA at 30 V.
- Compact SOD-123W package for space-saving designs.
- High reliability and performance in various applications.
Applications
The PMEG3020ER-QX is suitable for a range of applications including power supplies, DC-DC converters, battery chargers, and other power management circuits where high efficiency and low voltage drop are critical. It is also used in automotive and industrial systems due to its robust performance and reliability.
Q & A
- What is the maximum DC reverse voltage of the PMEG3020ER-QX? The maximum DC reverse voltage is 30 V.
- What is the average rectified current rating of the PMEG3020ER-QX? The average rectified current rating is 2 A.
- What is the package type of the PMEG3020ER-QX? The package type is SOD-123W.
- What is the typical forward voltage drop of the PMEG3020ER-QX? The PMEG3020ER-QX is known for its low forward voltage drop, but the exact value can be found in the datasheet.
- What are some common applications for the PMEG3020ER-QX? Common applications include power supplies, DC-DC converters, battery chargers, and automotive and industrial systems.
- What is the reverse leakage current at 30 V for the PMEG3020ER-QX? The reverse leakage current at 30 V is 1.5 mA.
- What is the capacitance at 1 V and 1 MHz for the PMEG3020ER-QX? The capacitance at 1 V and 1 MHz is 170 pF.
- Who is the manufacturer of the PMEG3020ER-QX? The manufacturer is Nexperia USA Inc.
- What family does the PMEG3020ER-QX belong to? The PMEG3020ER-QX belongs to Nexperia's MEGA Schottky barrier rectifier family.
- Why is the PMEG3020ER-QX preferred in power management applications? It is preferred due to its high efficiency, low forward voltage drop, and high reliability.
