Overview

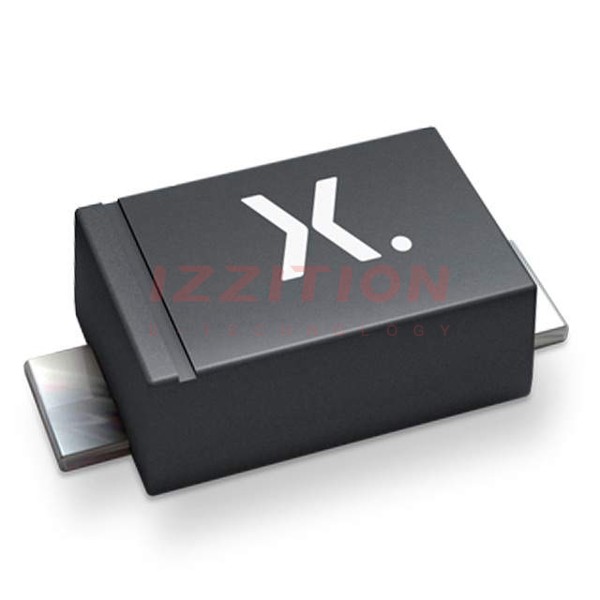

The PMEG3010ER-QX is a 30 V, 1 A low forward voltage (VF) Schottky barrier rectifier produced by Nexperia USA Inc. This component is designed to offer high power capability and efficiency, making it suitable for a wide range of applications. The PMEG3010ER-QX features Nexperia's clip-bond technology, which enhances its thermal performance and reliability.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Reverse Voltage (VR) | 30 | V |
| Average Forward Current (IF(AV)) | 1 | A |
| Typical Forward Voltage (VF) at 25°C | 320 | mV |
| Maximum Forward Voltage (VF) at 25°C | 360 | mV |
| Typical Reverse Current (IR) at 25°C | 600 | µA |
| Maximum Reverse Current (IR) at 25°C | 1500 | µA |
| Maximum Capacitance (Cd) | 170 | pF |
| Package Type | SOD123W (CFP3) | |
| Package Dimensions | 2.6 x 1.7 x 1 mm | |
| Automotive Qualified | No |
Key Features
- Low forward voltage (VF) for reduced power losses.
- High power capability due to clip-bond technology.
- Surface mount SOD123W package for ease of integration.
- High reliability and thermal performance.
- AEC-Q101 qualified, ensuring suitability for automotive applications.
Applications
The PMEG3010ER-QX is versatile and can be used in various applications across different industries, including:
- Automotive systems: For power management and rectification in vehicle electronics.
- Industrial power supplies: To improve efficiency and reduce heat generation.
- Consumer electronics: In power adapters, chargers, and other portable devices.
- Power management: In DC-DC converters, switching power supplies, and other power management circuits.
Q & A
- What is the maximum reverse voltage of the PMEG3010ER-QX?
The maximum reverse voltage (VR) is 30 V. - What is the average forward current rating of the PMEG3010ER-QX?
The average forward current (IF(AV)) is 1 A. - What is the typical forward voltage of the PMEG3010ER-QX at 25°C?
The typical forward voltage (VF) at 25°C is 320 mV. - What package type does the PMEG3010ER-QX use?
The PMEG3010ER-QX uses the SOD123W (CFP3) package. - Is the PMEG3010ER-QX automotive qualified?
No, the PMEG3010ER-QX is not automotive qualified according to the provided specifications. - What are the dimensions of the PMEG3010ER-QX package?
The package dimensions are 2.6 x 1.7 x 1 mm. - What is the maximum capacitance of the PMEG3010ER-QX?
The maximum capacitance (Cd) is 170 pF. - What technology enhances the thermal performance of the PMEG3010ER-QX?
The clip-bond technology enhances the thermal performance. - In which industries can the PMEG3010ER-QX be applied?
The PMEG3010ER-QX can be applied in automotive, industrial, consumer electronics, and power management industries. - Where can I purchase the PMEG3010ER-QX?
The PMEG3010ER-QX can be purchased from distributors such as Mouser, Digi-Key, and Farnell.
