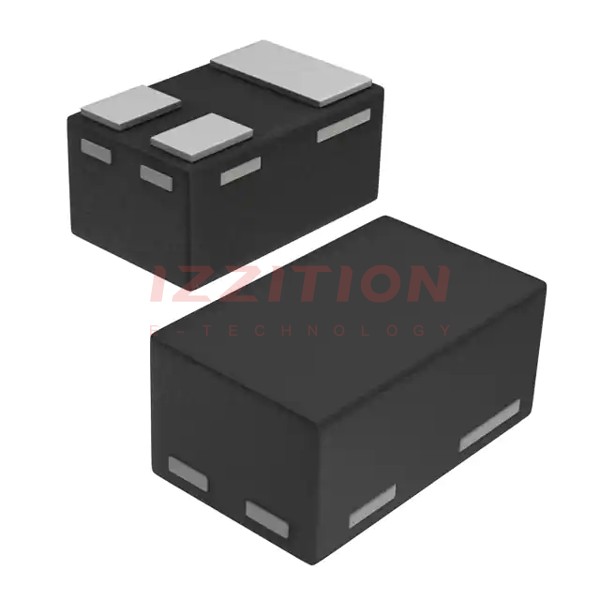

PMBT2907AMYL
  • Share:

Nexperia USA Inc. PMBT2907AMYL

Manufacturer No:
PMBT2907AMYL
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:
PMBT2907AM/SOT883/XQFN3
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The PMBT2907AMYL is a PNP switching transistor produced by Nexperia USA Inc. This transistor is designed for general-purpose switching and linear amplification applications. It is housed in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package, making it suitable for a wide range of electronic designs where space is a constraint.

The PMBT2907AMYL is AEC-Q101 qualified, indicating its suitability for automotive applications. It is also part of Nexperia’s extensive portfolio of discrete semiconductors, which are used in various industries including automotive, industrial, power, computing, and consumer electronics.

Key Specifications

Parameter Value Unit
Type Designator PMBT2907A -
Polarity PNP -
Maximum Collector Power Dissipation (Pc) 0.25 W
Maximum Collector-Base Voltage (Vcb) 60 V
Maximum Collector-Emitter Voltage (Vce) 60 V
Maximum Emitter-Base Voltage (Veb) 5 V
Maximum Collector Current (Ic max) 0.6 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft) 200 MHz
Forward Current Transfer Ratio (hFE), MIN 100 -
Package SOT23 (TO-236AB) -

Key Features

  • High current capability up to 600 mA
  • Low voltage operation up to 60 V
  • AEC-Q101 qualified for automotive applications
  • Small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package
  • General-purpose switching and linear amplification
  • NPN complement: PMBT2222
  • Transition frequency of 200 MHz
  • Forward current transfer ratio (hFE) minimum of 100

Applications

  • Switching and linear amplification in various electronic circuits
  • Automotive applications due to AEC-Q101 qualification
  • Industrial and power electronics
  • Consumer and mobile electronics
  • General-purpose transistor applications where high current and low voltage are required

Q & A

  1. What is the maximum collector current of the PMBT2907AMYL transistor?

    The maximum collector current is 0.6 A.

  2. What is the maximum collector-emitter voltage of the PMBT2907AMYL transistor?

    The maximum collector-emitter voltage is 60 V.

  3. What package type is the PMBT2907AMYL transistor available in?

    The transistor is available in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package.

  4. Is the PMBT2907AMYL transistor AEC-Q101 qualified?
  5. What is the transition frequency of the PMBT2907AMYL transistor?

    The transition frequency is 200 MHz.

  6. What is the minimum forward current transfer ratio (hFE) of the PMBT2907AMYL transistor?

    The minimum forward current transfer ratio (hFE) is 100.

  7. What are the typical applications of the PMBT2907AMYL transistor?

    The transistor is used in switching and linear amplification, automotive, industrial, power electronics, and consumer electronics.

  8. What is the maximum operating junction temperature of the PMBT2907AMYL transistor?

    The maximum operating junction temperature is 150 °C.

  9. Is the PMBT2907AMYL transistor RoHS compliant?
  10. What is the NPN complement of the PMBT2907AMYL transistor?

    The NPN complement is the PMBT2222 transistor.

Product Attributes

Transistor Type:PNP
Current - Collector (Ic) (Max):600 mA
Voltage - Collector Emitter Breakdown (Max):60 V
Vce Saturation (Max) @ Ib, Ic:1.6V @ 50mA, 500mA
Current - Collector Cutoff (Max):10nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:100 @ 150mA, 10V
Power - Max:250 mW
Frequency - Transition:210MHz
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:SC-101, SOT-883
Supplier Device Package:SOT-883
