Overview

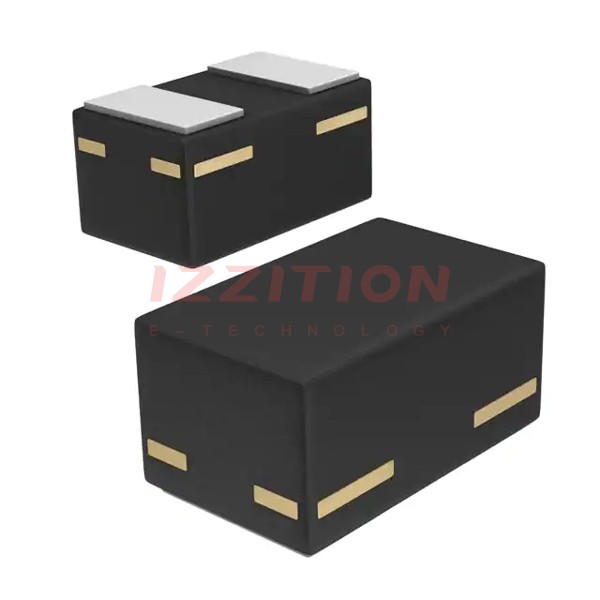

The PESD12VV1BL,315 is a very low capacitance bidirectional ElectroStatic Discharge (ESD) protection diode manufactured by Nexperia. This component is designed to protect sensitive electronic components against ESD events and other transients. It is housed in a leadless ultra-small DFN1006-2 (SOD882) Surface-Mounted Device (SMD) plastic package, making it ideal for applications requiring minimal space and low capacitance.
Key Specifications
| No of Channels | 1 |
|---|---|
| Directional | Bidirectional |
| Clamping Voltage-Max | 38 V |
| Breakdown Voltage-Max | 16.8 V |
| Breakdown Voltage-Min | 14.6 V |
| Capacitance | 17 pF |
| Operating Temp Range | -55°C to +150°C |
| Package Style | SOD882 (DFN1006-2) |
| Mounting Method | Surface Mount |
| Rated Peak Pulse Power | 290 W |
| Ultra Low Leakage Current | 1 nA |
| ESD Protection | Up to 30 kV (IEC 61000-4-2, level 4) |
Key Features
- Very low capacitance of 17 pF, which is beneficial for applications requiring low switching times and power dissipation.
- Bidirectional ESD protection, ensuring comprehensive protection against both positive and negative ESD events.
- Ultra-low leakage current of 1 nA, minimizing power consumption.
- High ESD protection up to 30 kV according to IEC 61000-4-2, level 4.
- Wide operating temperature range from -55°C to +150°C, making it suitable for various environmental conditions.
- Compact SOD882 (DFN1006-2) package, ideal for space-constrained designs.
Applications
- Computers and peripherals
- Audio and video equipment
- Cellular handsets and accessories
- Portable electronics
- Communication systems
- Automotive and industrial electronics
- Power, computing, consumer, mobile, and wearable devices
Q & A
- What is the PESD12VV1BL,315 used for?
The PESD12VV1BL,315 is used to protect sensitive electronic components against ElectroStatic Discharge (ESD) events and other transients.
- What is the capacitance of the PESD12VV1BL,315?
The capacitance of the PESD12VV1BL,315 is 17 pF.
- What is the operating temperature range of the PESD12VV1BL,315?
The operating temperature range is from -55°C to +150°C.
- What type of package does the PESD12VV1BL,315 come in?
The component is housed in a leadless ultra-small DFN1006-2 (SOD882) Surface-Mounted Device (SMD) plastic package.
- What is the ESD protection level of the PESD12VV1BL,315?
The device provides ESD protection up to 30 kV according to IEC 61000-4-2, level 4.
- What are some common applications for the PESD12VV1BL,315?
Common applications include computers and peripherals, audio and video equipment, cellular handsets, portable electronics, and communication systems.
- What is the clamping voltage of the PESD12VV1BL,315?
The clamping voltage is 38 V.
- Is the PESD12VV1BL,315 RoHS compliant?
Yes, the PESD12VV1BL,315 is RoHS compliant.
- What is the rated peak pulse power of the PESD12VV1BL,315?
The rated peak pulse power is 290 W.
- How does the PESD12VV1BL,315 benefit applications requiring low switching times?
The very low capacitance of 17 pF benefits applications that require low switching times and power dissipation.
