PBHV9560ZX
  • Share:

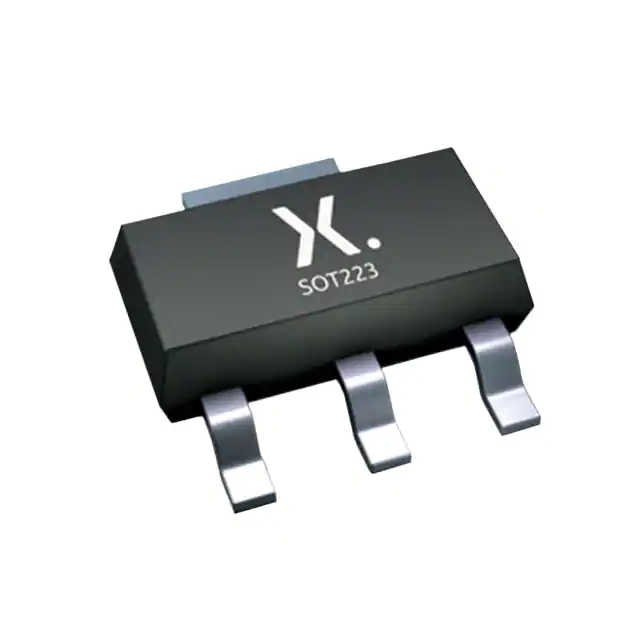

Nexperia USA Inc. PBHV9560ZX

Manufacturer No:
PBHV9560ZX
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:
TRANS PNP 600V 0.5A SOT223
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The PBHV9560ZX is a high-performance Bipolar Junction Transistor (BJT) manufactured by Nexperia USA Inc. This PNP transistor is designed for surface mount applications and features a compact SOT-223 package, which significantly reduces board space usage, allowing for more design flexibility. It is known for its low collector-emitter saturation voltage and high collector current capability, making it suitable for a variety of power and switching applications.

Key Specifications

ParameterValue
ConfigurationSingle
Maximum DC Collector Current500 mA
Collector-Emitter Voltage (VCEO) Max600 V
Collector-Base Voltage (VCBO)600 V
Frequency (fT)38 MHz
Power Dissipation (Pd)650 mW
Package TypeSOT-223 (SC-73)

Key Features

  • Compact SOT-223 package, reducing board space by approximately 75% and enhancing design flexibility.
  • Low collector-emitter saturation voltage, ensuring efficient operation in power and switching applications.
  • High collector current capability of up to 500 mA, making it suitable for demanding applications.
  • High frequency capability of 38 MHz, suitable for high-speed switching and amplification tasks.
  • Compliant with REACH regulation, ensuring environmental safety and compliance.

Applications

The PBHV9560ZX is versatile and can be used in a variety of applications, including:

  • Power switching and amplification in industrial and consumer electronics.
  • High-frequency amplifiers and oscillators.
  • Automotive systems requiring high reliability and performance.
  • General-purpose amplification and switching in electronic circuits.

Q & A

  1. What is the maximum collector current of the PBHV9560ZX?
    The maximum DC collector current is 500 mA.
  2. What is the collector-emitter voltage (VCEO) of the PBHV9560ZX?
    The collector-emitter voltage (VCEO) is 600 V.
  3. What package type does the PBHV9560ZX use?
    The PBHV9560ZX uses the SOT-223 (SC-73) package.
  4. What is the frequency (fT) of the PBHV9560ZX?
    The frequency (fT) is 38 MHz.
  5. Is the PBHV9560ZX compliant with environmental regulations?
    Yes, it is compliant with REACH regulation and does not contain SVHC substances exceeding 1000 ppm.
  6. What is the power dissipation (Pd) of the PBHV9560ZX?
    The power dissipation (Pd) is 650 mW.
  7. What are some common applications of the PBHV9560ZX?
    It is used in power switching, high-frequency amplifiers, automotive systems, and general-purpose amplification and switching.
  8. What are the benefits of the SOT-223 package used by the PBHV9560ZX?
    The SOT-223 package reduces board space usage by about 75% and enhances design flexibility.
  9. Is the PBHV9560ZX suitable for high-speed switching applications?
    Yes, it is suitable due to its high frequency capability of 38 MHz.
  10. Where can I purchase the PBHV9560ZX?
    You can purchase the PBHV9560ZX from distributors such as Mouser, Digi-Key, and Cytech Systems.

Product Attributes

Transistor Type:PNP
Current - Collector (Ic) (Max):500 mA
Voltage - Collector Emitter Breakdown (Max):600 V
Vce Saturation (Max) @ Ib, Ic:250mV @ 5mA, 50mA
Current - Collector Cutoff (Max):100nA
DC Current Gain (hFE) (Min) @ Ic, Vce:70 @ 50mA, 10V
Power - Max:650 mW
Frequency - Transition:38MHz
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-261-4, TO-261AA
Supplier Device Package:SOT-223
0 Remaining View Similar

In Stock

$0.61
1,397

Please send RFQ , we will respond immediately.

Similar Products

Part Number PBHV9560ZX PBHV8560ZX
Manufacturer Nexperia USA Inc. Nexperia USA Inc.
Product Status Active Active
Transistor Type PNP NPN
Current - Collector (Ic) (Max) 500 mA 500 mA
Voltage - Collector Emitter Breakdown (Max) 600 V 600 V
Vce Saturation (Max) @ Ib, Ic 250mV @ 5mA, 50mA 100mV @ 5mA, 50mA
Current - Collector Cutoff (Max) 100nA 100nA
DC Current Gain (hFE) (Min) @ Ic, Vce 70 @ 50mA, 10V 70 @ 50mA, 10V
Power - Max 650 mW 650 mW
Frequency - Transition 38MHz -
Operating Temperature 150°C (TJ) 150°C (TJ)
Mounting Type Surface Mount Surface Mount
Package / Case TO-261-4, TO-261AA TO-261-4, TO-261AA
Supplier Device Package SOT-223 SOT-223
