Overview

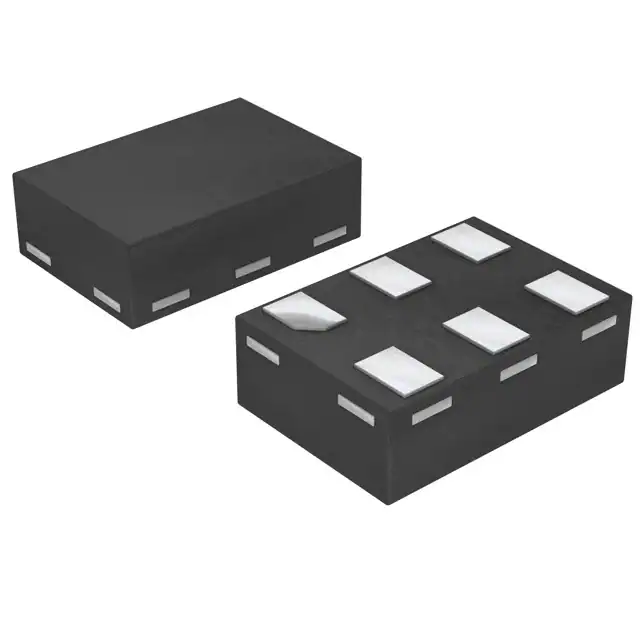

The IP4221CZ6-S,115 is a high-speed ElectroStatic Discharge (ESD) protection device manufactured by Nexperia USA Inc. This component is designed to protect sensitive electronic components in high-speed interfaces such as USB 2.0, Ethernet, and Digital Visual Interface (DVI) from ESD and transient voltage spikes. Encapsulated in a leadless ultra-small DFN1410-6 (SOT886) package, it offers compact and efficient integration into electronic circuits.
Key Specifications
| Parameter | Description | Value |
|---|---|---|
| Product Status | Obsolete | |
| Unidirectional Channels | 4 | |
| Voltage - Reverse Standoff (Typ) | 5.5V | |
| Voltage - Breakdown (Min) | 6V | |
| Power Line Protection | Yes | |
| Applications | General Purpose | |
| Capacitance @ Frequency | 1 pF @ 1 MHz | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Mounting Type | Surface Mount | |
| Package / Case | 6-XFDFN |
Key Features
- System ESD protection for high-speed data lines such as USB 2.0, Ethernet, and DVI.
- All signal lines with integrated rail-to-rail clamping diodes for downstream ESD protection of ±8 kV according to IEC 61000-4-2, level 4.
- Ultra-low line capacitance of only 1 pF for each channel.
- Leadless ultra-small DFN1410-6 package: 1 × 1.45 × 0.5 mm; pitch 0.5 mm.
- Operates with a nominal supply voltage of 5 V.
Applications
The IP4221CZ6-S,115 is commonly used in various electronic systems that require high-speed interface protection, including:
- Mobile phones, smartphones, and handsets.
- TVs and monitors.
- DVD recorders and players.
- Notebooks, motherboards, graphic cards, and ports.
- Set-top boxes and game consoles.
Q & A
- What is the primary function of the IP4221CZ6-S,115? The primary function is to protect high-speed interfaces such as USB 2.0, Ethernet, and DVI from ElectroStatic Discharge (ESD) and transient voltage spikes.
- What package type does the IP4221CZ6-S,115 come in? It comes in a leadless ultra-small DFN1410-6 (SOT886) package.
- What is the operating temperature range of the IP4221CZ6-S,115? The operating temperature range is -40°C to 85°C.
- How many unidirectional channels does the IP4221CZ6-S,115 have? It has 4 unidirectional channels.
- What is the typical capacitance of the IP4221CZ6-S,115 at 1 MHz? The typical capacitance is 1 pF at 1 MHz.
- Is the IP4221CZ6-S,115 still in active production? No, the IP4221CZ6-S,115 is obsolete and no longer in active production.
- What are the common applications of the IP4221CZ6-S,115? Common applications include mobile phones, TVs, notebooks, and set-top boxes.
- What is the ESD protection level of the IP4221CZ6-S,115 according to IEC 61000-4-2? The ESD protection level is ±8 kV according to IEC 61000-4-2, level 4.
- What is the nominal supply voltage of the IP4221CZ6-S,115? The nominal supply voltage is 5 V.
- What is the breakdown voltage of the IP4221CZ6-S,115? The breakdown voltage is a minimum of 6 V.
