Overview

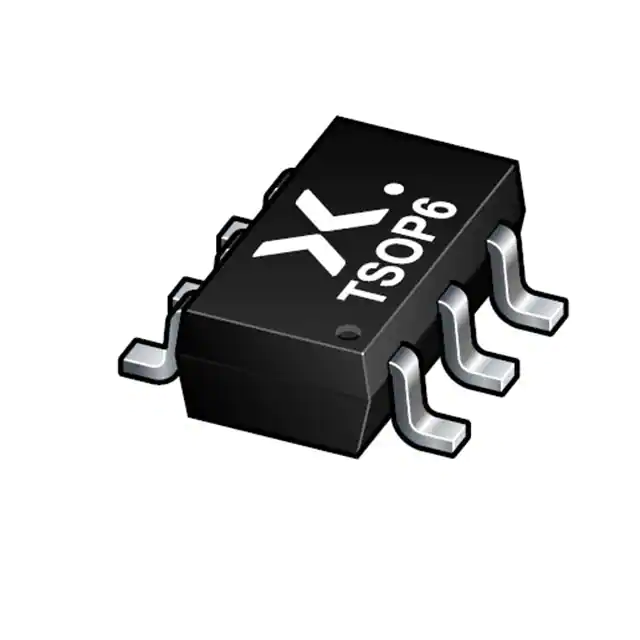

The BZA456A,135 is a quadruple ESD (Electrostatic Discharge) transient voltage suppressor diode manufactured by Nexperia USA Inc. This component is designed to provide 4-bit wide ESD transient suppression at a 5.6 V level. It is packaged in a six lead SOT457 (SC-74) package, making it suitable for surface mount applications. The BZA456A,135 is part of Nexperia's range of TVS diodes, which are essential for protecting electronic circuits from voltage spikes and other transient events.
Key Specifications
| Parameter | Value |
|---|---|
| Type Number | BZA456A |
| Orderable Part Number | BZA456A,135 |
| Package | SOT457 (SC-74) |
| VWM (Working Voltage) | 5.6 V |
| VCL (Clamping Voltage) | 8 V |
| Ipp (Peak Pulse Current) | 3 A (8/20 µs) |
| Lead Count | 6 |
Key Features
- Quadruple ESD transient voltage suppressor in a single package.
- Surface mount SOT457 (SC-74) package for compact design.
- Working voltage of 5.6 V and clamping voltage of 8 V.
- Peak pulse current of 3 A (8/20 µs).
- Designed for protecting electronic circuits from ESD and other transient voltage events.
Applications
The BZA456A,135 is suitable for a variety of applications where protection against ESD and transient voltages is crucial. These include:
- Consumer electronics such as smartphones, tablets, and laptops.
- Automotive systems requiring robust ESD protection.
- Industrial control systems and automation equipment.
- Medical devices that need reliable protection against voltage spikes.
Q & A
- What is the primary function of the BZA456A,135?
The primary function is to provide ESD transient voltage suppression to protect electronic circuits. - What package type does the BZA456A,135 use?
The component is packaged in a six lead SOT457 (SC-74) package. - What is the working voltage of the BZA456A,135?
The working voltage is 5.6 V. - What is the clamping voltage of the BZA456A,135?
The clamping voltage is 8 V. - What is the peak pulse current rating of the BZA456A,135?
The peak pulse current rating is 3 A (8/20 µs). - Where can I purchase the BZA456A,135?
You can purchase it from distributors such as Digi-Key, Mouser, and Nexperia's official website. - Is the BZA456A,135 RoHS compliant?
Yes, the component is designed to be environmentally friendly and complies with relevant regulations such as RoHS. - What are some common applications for the BZA456A,135?
Common applications include consumer electronics, automotive systems, industrial control systems, and medical devices. - How many leads does the BZA456A,135 have?
The component has six leads. - What is the environmental friendly use period (EFUP) for this component?
The BZA456A,135 has an indefinite environmental friendly use period (EFUP).
