Overview

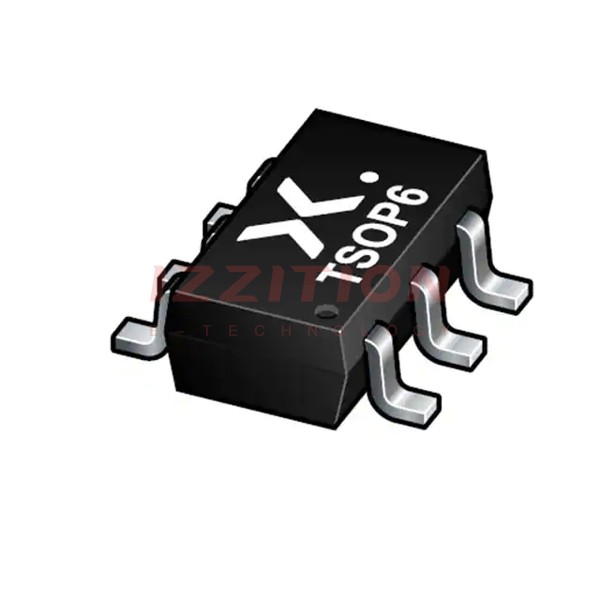

The BZA456A,115 is a quadruple ESD (Electrostatic Discharge) transient voltage suppressor diode manufactured by Nexperia USA Inc. This component is designed to provide protection against ESD events in electronic circuits. It is packaged in a six-lead SOT457 (SC-74) package, making it suitable for a wide range of applications requiring multi-channel ESD protection.
Key Specifications
| Parameter | Value |
|---|---|
| Type Number | BZA456A,115 |
| Package | SOT457 (SC-74), 6-TSOP |
| Maximum Reverse Stand-off Voltage | 5.6 V |
| Voltage - Breakdown (Min) | - |
| Voltage - Clamping (Max) @ Ipp | 8 V |
| Current - Peak Pulse (10/1000µs) | 3 A (8/20µs) |
| Power - Peak Pulse | 24 W |
| Operating Temperature | -65°C to 150°C (TJ) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Key Features
- Quad-element unidirectional TVS diode for 4-bit wide ESD transient suppression.
- Maximum reverse stand-off voltage of 5.6 V and maximum clamping voltage of 8 V.
- Peak pulse power of 24 W and peak pulse current of 3 A (8/20µs).
- Surface mount package in SOT457 (SC-74) with 6 leads.
- Operating temperature range from -65°C to 150°C.
- Lead-free and RoHS compliant, ensuring environmental sustainability.
Applications
The BZA456A,115 is suitable for general-purpose unidirectional ESD protection in various electronic devices and systems. It is particularly useful in applications requiring multi-channel protection, such as in consumer electronics, automotive systems, and industrial control equipment.
Q & A
- What is the BZA456A,115 used for?
The BZA456A,115 is used for ESD transient voltage suppression in electronic circuits. - What is the package type of the BZA456A,115?
The BZA456A,115 is packaged in a six-lead SOT457 (SC-74) package. - What is the maximum reverse stand-off voltage of the BZA456A,115?
The maximum reverse stand-off voltage is 5.6 V. - What is the peak pulse power of the BZA456A,115?
The peak pulse power is 24 W. - Is the BZA456A,115 lead-free and RoHS compliant?
Yes, the BZA456A,115 is lead-free and RoHS compliant. - What is the operating temperature range of the BZA456A,115?
The operating temperature range is from -65°C to 150°C. - How many channels does the BZA456A,115 provide for ESD protection?
The BZA456A,115 provides protection for 4 channels. - What is the moisture sensitivity level (MSL) of the BZA456A,115?
The MSL is 1 (Unlimited). - Where can I purchase the BZA456A,115?
The BZA456A,115 can be purchased from various distributors such as Digi-Key, Mouser, and IC Components Ltd. - What are some common applications for the BZA456A,115?
Common applications include consumer electronics, automotive systems, and industrial control equipment.
