Overview

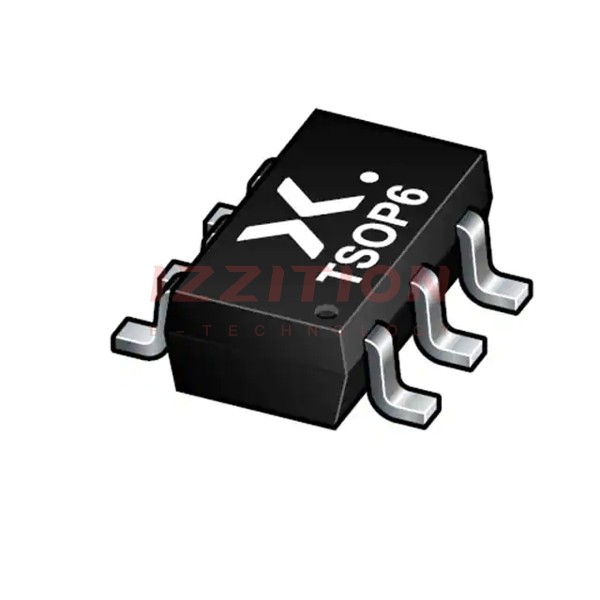

The BZA456A,125 is a quadruple ESD (Electrostatic Discharge) transient voltage suppressor diode manufactured by Nexperia USA Inc. This component is designed to provide robust protection against ESD events in electronic circuits. It is packaged in a six-lead SOT457 (SC-74) package, making it suitable for a wide range of applications where space is limited.
Key Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Nexperia USA Inc. |
| Part Number | BZA456A,125 |
| Package | SOT457 (SC-74) |
| Operating Temperature | -65°C to 150°C (TJ) |
| Voltage - Reverse Standoff (Typ) | 5.6V |
| Voltage - Breakdown (Min) | - |
| Voltage - Clamping (Max) @ Ipp | 8V |
| Current - Peak Pulse (10/1000µs) | 3A (8/20µs) |
| Power - Peak Pulse | 24W |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Key Features
- Monolithic transient voltage suppressor diode in a six-lead SOT457 (SC-74) package.
- Designed for 4-bit wide ESD transient suppression at a 5.6 V level.
- High peak pulse current capability of 3A (8/20µs).
- Low capacitance of 240pF at 1MHz.
- Operating temperature range from -65°C to 150°C.
- Lead-free and RoHS compliant.
Applications
The BZA456A,125 is suitable for various applications requiring ESD protection, including:
- General-purpose ESD protection in electronic circuits.
- Protection of sensitive components in automotive, industrial, and consumer electronics.
- Use in high-speed data lines, such as USB, HDMI, and Ethernet.
- Protection in mobile devices, laptops, and other portable electronics.
