Nexperia USA Inc. BF620,115

Manufacturer No:
BF620,115
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:
TRANS NPN 300V 0.05A SOT89
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

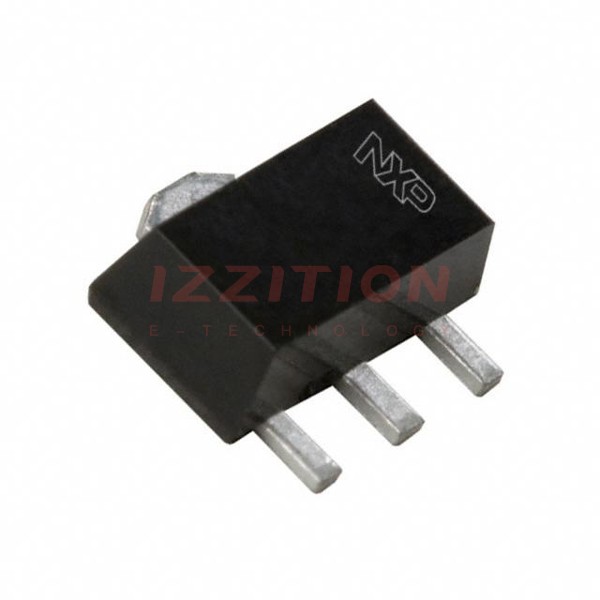

The BF620,115 is an NPN high-voltage bipolar transistor manufactured by Nexperia USA Inc. This transistor is packaged in a SOT89 (SC-62) flat lead Surface-Mounted Device (SMD) plastic package. It is designed for high-voltage applications and offers a PNP complement in the form of the BF621 model.

Key Specifications

ParameterValue
Transistor TypeNPN
Maximum Collector Current50 mA
Maximum Collector-Emitter Voltage (VCEO)300 V
Maximum Collector Power Dissipation1.1 W
Transition Frequency (fT)60 MHz
Package TypeSOT89 (SC-62)

Key Features

  • High-voltage capability with a maximum collector-emitter voltage of 300 V.
  • Low power consumption with a maximum collector current of 50 mA.
  • High transition frequency of 60 MHz, suitable for high-frequency applications.
  • Compact SOT89 (SC-62) surface-mount package for efficient board space utilization.
  • PNP complement available as BF621.

Applications

The BF620,115 is suitable for a variety of high-voltage applications, including:

  • Power amplifiers and switches.
  • High-frequency circuits such as RF amplifiers and oscillators.
  • Automotive and industrial control systems requiring high reliability and voltage handling.
  • General-purpose amplification and switching in electronic devices.

Q & A

  1. What is the maximum collector current of the BF620,115 transistor?
    The maximum collector current is 50 mA.
  2. What is the maximum collector-emitter voltage (VCEO) of the BF620,115?
    The maximum collector-emitter voltage is 300 V.
  3. What is the transition frequency (fT) of the BF620,115 transistor?
    The transition frequency is 60 MHz.
  4. What package type is the BF620,115 transistor available in?
    The transistor is available in a SOT89 (SC-62) surface-mount package.
  5. Is there a PNP complement for the BF620,115 transistor?
    Yes, the PNP complement is the BF621 model.
  6. What are some typical applications for the BF620,115 transistor?
    Typical applications include power amplifiers, high-frequency circuits, automotive and industrial control systems, and general-purpose amplification and switching.
  7. What is the maximum power dissipation of the BF620,115 transistor?
    The maximum power dissipation is 1.1 W.
  8. Is the BF620,115 suitable for high-frequency applications?
    Yes, it is suitable due to its high transition frequency of 60 MHz.
  9. Where can I find detailed specifications for the BF620,115 transistor?
    Detailed specifications can be found on the official Nexperia website, as well as on distributor websites such as Digi-Key, Mouser, and Avnet.
  10. What is the significance of the '115' in the part number BF620,115?
    The '115' is part of the part number and does not signify any specific parameter; it is a unique identifier for the component.

Product Attributes

Transistor Type:NPN
Current - Collector (Ic) (Max):50 mA
Voltage - Collector Emitter Breakdown (Max):300 V
Vce Saturation (Max) @ Ib, Ic:600mV @ 5mA, 30mA
Current - Collector Cutoff (Max):10nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:50 @ 25mA, 20V
Power - Max:1.1 W
Frequency - Transition:60MHz
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-243AA
Supplier Device Package:SOT-89
