Overview

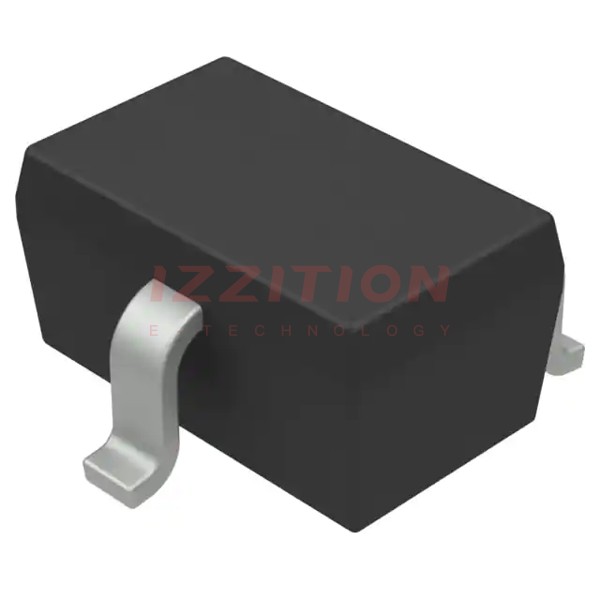

The BC860BW,135 is a PNP bipolar junction transistor (BJT) manufactured by Nexperia USA Inc. This transistor is part of the BC860 series and is known for its reliability and performance in various electronic circuits. It is packaged in a SOT323 (SC-70) package, making it suitable for surface-mount technology (SMT) applications.
Key Specifications
| Parameter | Value |
|---|---|
| Transistor Type | PNP |
| Voltage - Collector Emitter (Vceo) | 45V |
| Current - Collector (Ic) (Max) | 100mA |
| Package Type | SOT323 (SC-70) |
| Operating Temperature Range | -55°C to 150°C |
Key Features
- PNP bipolar junction transistor with a collector-emitter voltage of 45V.
- Maximum collector current of 100mA.
- SOT323 (SC-70) package for surface-mount applications.
- Wide operating temperature range from -55°C to 150°C.
- High reliability and performance in various electronic circuits.
Applications
The BC860BW,135 is versatile and can be used in a variety of applications, including:
- General-purpose switching and amplification.
- Audio and signal processing circuits.
- Automotive and industrial control systems.
- Consumer electronics such as audio equipment and home appliances.
Q & A
- What is the transistor type of the BC860BW,135?
The BC860BW,135 is a PNP bipolar junction transistor. - What is the maximum collector-emitter voltage (Vceo) of the BC860BW,135?
The maximum collector-emitter voltage (Vceo) is 45V. - What is the maximum collector current (Ic) of the BC860BW,135?
The maximum collector current (Ic) is 100mA. - What is the package type of the BC860BW,135?
The package type is SOT323 (SC-70). - What is the operating temperature range of the BC860BW,135?
The operating temperature range is from -55°C to 150°C. - Where can the BC860BW,135 be used?
The BC860BW,135 can be used in general-purpose switching and amplification, audio and signal processing circuits, automotive and industrial control systems, and consumer electronics. - Why is the SOT323 package important?
The SOT323 package is important because it allows for surface-mount technology (SMT) applications, which are common in modern electronic manufacturing. - What are the advantages of using the BC860BW,135?
The advantages include high reliability, good performance, and a wide operating temperature range. - Can the BC860BW,135 be used in high-temperature environments?
Yes, the BC860BW,135 can operate in temperatures up to 150°C. - Is the BC860BW,135 suitable for low-power applications?
Yes, with a maximum collector current of 100mA, it is suitable for low to medium power applications.
