BC817-16QBZ
  • Share:

Nexperia USA Inc. BC817-16QBZ

Manufacturer No:
BC817-16QBZ
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:

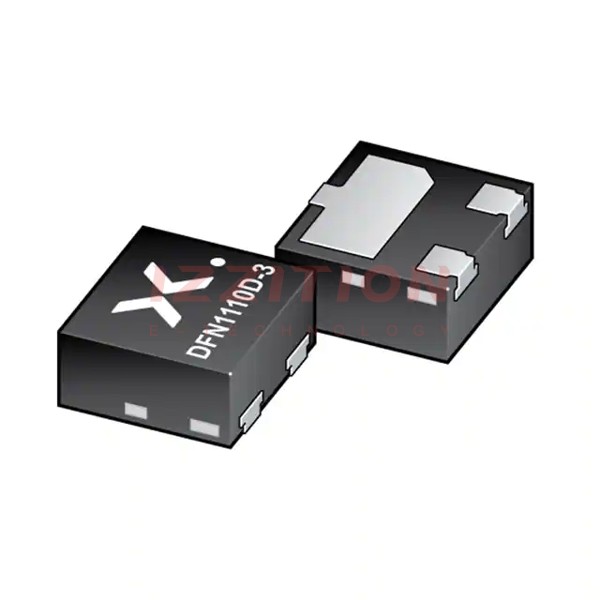

TRANS NPN 45V 0.5A DFN1110D-3
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BC817-16QBZ is an NPN general-purpose transistor produced by Nexperia USA Inc. This transistor is housed in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package, making it suitable for a wide range of applications where space is limited. It is part of Nexperia’s extensive portfolio of bipolar transistors, which are known for their high performance and reliability in various electronic designs.

Key Specifications

Type numberPackage versionPackage nameSize (mm)Channel typeP tot (mW)V CEO [max] (V)I C [max] (mA)h FE [min]h FE [max]T J [max] (°C)
BC817-16SOT23SOT232.9 x 1.3 x 1NPN250.045.0500.0100.0250.0150

Key Features

  • High Current Capability: The BC817-16QBZ can handle up to 500 mA of collector current, making it suitable for applications requiring moderate to high current levels.
  • Three Current Gain Selections: This transistor is available with different current gain (hFE) selections, providing flexibility in design.
  • General-Purpose Switching and Amplification: It is designed for general-purpose switching and amplification applications.
  • Automotive Qualified: The BC817-16-Q variant is qualified according to AEC-Q101, making it suitable for use in automotive applications.

Applications

The BC817-16QBZ transistor is versatile and can be used in a variety of applications across different industries, including:

  • Automotive: Qualified according to AEC-Q101, it is suitable for automotive systems.
  • Industrial: Used in industrial control systems and automation.
  • Consumer Electronics: Found in various consumer electronic devices such as audio equipment and home appliances.
  • Power and Computing: Used in power management and computing applications where reliable switching and amplification are required.

Q & A

  1. What is the maximum collector current of the BC817-16QBZ transistor? The maximum collector current is 500 mA.
  2. What is the maximum collector-emitter voltage (VCEO) of the BC817-16QBZ transistor? The maximum collector-emitter voltage is 45 V.
  3. What package type is the BC817-16QBZ transistor available in? It is available in the SOT23 (TO-236AB) package.
  4. What are the dimensions of the SOT23 package? The dimensions are 2.9 x 1.3 x 1 mm.
  5. Is the BC817-16-Q variant automotive qualified? Yes, it is qualified according to AEC-Q101.
  6. What is the minimum and maximum current gain (hFE) of the BC817-16QBZ transistor? The minimum current gain is 100 and the maximum is 250.
  7. What is the maximum junction temperature (TJ) of the BC817-16QBZ transistor? The maximum junction temperature is 150°C.
  8. Can I use the BC817-16QBZ for both switching and amplification applications? Yes, it is designed for general-purpose switching and amplification.
  9. Where can I find more detailed technical information and support for the BC817-16QBZ transistor? Detailed information and support can be found on Nexperia’s official website and through their network of global and regional distributors.
  10. Is the BC817-16QBZ RoHS compliant? Yes, it is RoHS compliant.

Product Attributes

Transistor Type:NPN
Current - Collector (Ic) (Max):500 mA
Voltage - Collector Emitter Breakdown (Max):45 V
Vce Saturation (Max) @ Ib, Ic:700mV @ 50mA, 500mA
Current - Collector Cutoff (Max):100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:100 @ 100mA, 1V
Power - Max:350 mW
Frequency - Transition:100MHz
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount, Wettable Flank
Package / Case:3-XDFN Exposed Pad
Supplier Device Package:DFN1110D-3
