Nexperia USA Inc. BC807-40QB-QZ

Manufacturer No:
BC807-40QB-QZ
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:

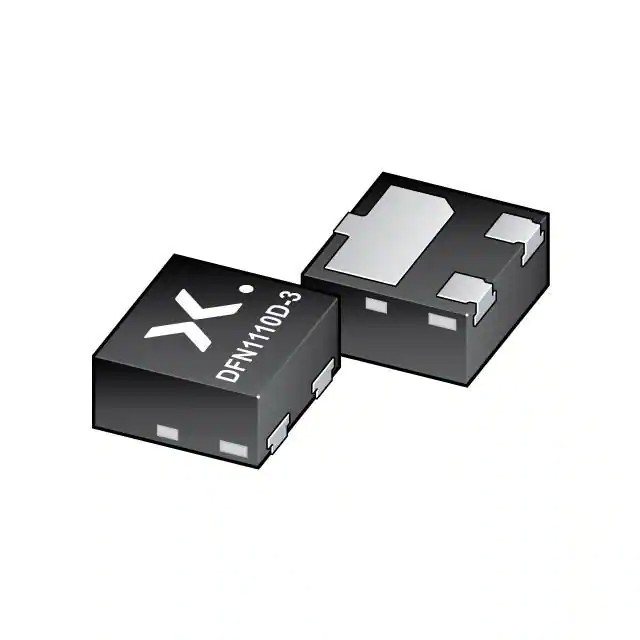

TRANS PNP 45V 0.5A DFN1110D-3
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BC807-40QB-QZ is a PNP general-purpose bipolar junction transistor (BJT) manufactured by Nexperia USA Inc. This transistor is designed for a wide range of applications, including automotive, industrial, and consumer electronics. It features a surface-mount package, specifically the DFN1110D-3, which is known for its compact size and wettable flank design, enhancing solderability and reliability.

The BC807-40QB-QZ is part of the BC807 series, which is known for its high current handling and versatility in both switching and amplification roles. The transistor is qualified according to AEC-Q101, making it suitable for use in automotive applications where reliability and robustness are critical.

Key Specifications

Parameter Value Unit
Collector-Base Voltage 45 V
Collector Current 500 mA
Transition Frequency 80 MHz
Power Dissipation 350 mW
Package Type DFN1110D-3 -
Package Size - -
Operating Temperature - -

Key Features

  • High Current Handling: The BC807-40QB-QZ can handle up to 500 mA of collector current, making it suitable for applications requiring moderate to high current levels.
  • Automotive Qualified: This transistor is qualified according to AEC-Q101, ensuring it meets the stringent reliability and performance standards required for automotive applications.
  • Compact Package: The DFN1110D-3 package is compact and features a wettable flank design, which enhances solderability and reduces the risk of soldering defects.
  • Versatile Use: The transistor is suitable for both switching and amplification applications, making it a versatile component in various electronic designs.
  • High Transition Frequency: With a transition frequency of 80 MHz, this transistor is capable of handling high-frequency signals effectively.

Applications

  • Automotive Electronics: Given its AEC-Q101 qualification, the BC807-40QB-QZ is ideal for use in automotive systems, including engine control units, lighting systems, and other vehicle electronics.
  • Industrial Control Systems: The transistor's robustness and reliability make it suitable for industrial control systems, such as motor control, power supplies, and automation equipment.
  • Consumer Electronics: It can be used in various consumer electronic devices, including audio amplifiers, power supplies, and other general-purpose electronic circuits.
  • Power Management: The BC807-40QB-QZ can be used in power management circuits, such as voltage regulators, current limiters, and power switches.

Q & A

  1. What is the collector-base voltage of the BC807-40QB-QZ transistor?

    The collector-base voltage of the BC807-40QB-QZ transistor is 45 V.

  2. What is the maximum collector current of the BC807-40QB-QZ transistor?

    The maximum collector current of the BC807-40QB-QZ transistor is 500 mA.

  3. What is the transition frequency of the BC807-40QB-QZ transistor?

    The transition frequency of the BC807-40QB-QZ transistor is 80 MHz.

  4. What type of package does the BC807-40QB-QZ transistor use?

    The BC807-40QB-QZ transistor uses a DFN1110D-3 package.

  5. Is the BC807-40QB-QZ transistor qualified for automotive applications?

    Yes, the BC807-40QB-QZ transistor is qualified according to AEC-Q101, making it suitable for automotive applications.

  6. What are the typical applications of the BC807-40QB-QZ transistor?

    The BC807-40QB-QZ transistor is typically used in automotive electronics, industrial control systems, consumer electronics, and power management circuits.

  7. What is the power dissipation of the BC807-40QB-QZ transistor?

    The power dissipation of the BC807-40QB-QZ transistor is 350 mW.

  8. Does the BC807-40QB-QZ transistor have a wettable flank design?

    Yes, the BC807-40QB-QZ transistor features a wettable flank design in its DFN1110D-3 package.

  9. Can the BC807-40QB-QZ transistor be used for both switching and amplification?

    Yes, the BC807-40QB-QZ transistor is suitable for both switching and amplification applications.

  10. Where can I purchase the BC807-40QB-QZ transistor?

    The BC807-40QB-QZ transistor can be purchased from various distributors, including Digi-Key, Mouser, Newark element14, and other authorized Nexperia distributors.

Product Attributes

Transistor Type:PNP
Current - Collector (Ic) (Max):500 mA
Voltage - Collector Emitter Breakdown (Max):45 V
Vce Saturation (Max) @ Ib, Ic:700mV @ 50mA, 500mA
Current - Collector Cutoff (Max):100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:250 @ 100mA, 1V
Power - Max:350 mW
Frequency - Transition:80MHz
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount, Wettable Flank
Package / Case:3-XDFN Exposed Pad
Supplier Device Package:DFN1110D-3
