Overview

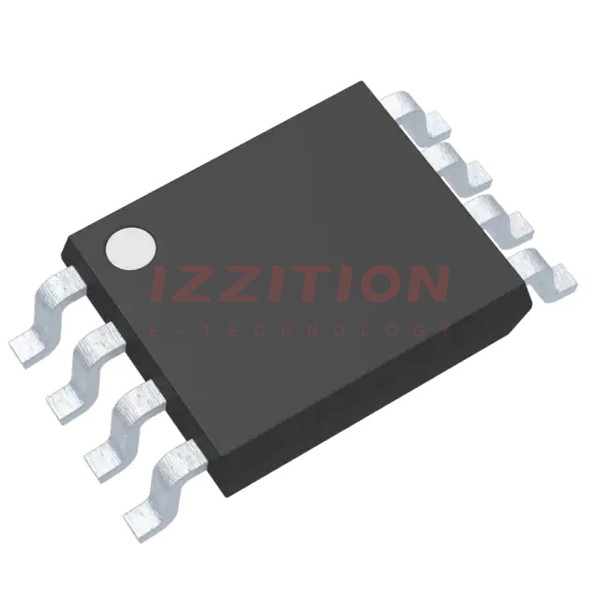

The 74LVC2G240DC,125 is a dual non-inverting buffer/line driver integrated circuit produced by Nexperia USA Inc. This component is part of the 74LVC family, known for its low-voltage CMOS logic series. It is designed to operate at low power consumption and high speed, making it suitable for a variety of applications requiring reliable signal buffering and driving.
Key Specifications
| Specification | Value |
|---|---|
| Package Type | VSSOP8 |
| Number of Gates | 2 |
| Logic Function | Dual Non-Inverting Buffer/Line Driver |
| Operating Temperature Range | -40°C to +125°C |
| Supply Voltage Range | 1.65 V to 3.6 V |
| Propagation Delay | Typically 2.5 ns at 3.3 V, 3.5 ns at 2.5 V, and 5.5 ns at 1.8 V |
| Input/Output Voltage Levels | CMOS compatible |
| Power Dissipation (Static) | Typically 10 μA at 3.3 V, 10 μA at 2.5 V, and 10 μA at 1.8 V |
Key Features
- Low power consumption with a typical static power dissipation of 10 μA.
- High speed with propagation delays as low as 2.5 ns at 3.3 V.
- Wide operating temperature range from -40°C to +125°C.
- CMOS compatible input/output levels.
- Compact VSSOP8 package, suitable for space-constrained designs.
- Supply voltage range from 1.65 V to 3.6 V, making it versatile for various applications.
Applications
- General-purpose logic and buffer applications.
- Low-power consumer electronics.
- Automotive systems requiring low power and high reliability.
- Industrial control systems and automation.
- Communication and networking equipment.
Q & A
- What is the primary function of the 74LVC2G240DC,125?
The primary function is to act as a dual non-inverting buffer/line driver.
- What is the operating temperature range of this component?
The operating temperature range is from -40°C to +125°C.
- What is the typical propagation delay at 3.3 V?
The typical propagation delay at 3.3 V is 2.5 ns.
- What is the supply voltage range for this IC?
The supply voltage range is from 1.65 V to 3.6 V.
- What package type is used for the 74LVC2G240DC,125?
The package type is VSSOP8.
- Is this component suitable for automotive applications?
Yes, it is suitable for automotive systems due to its low power consumption and high reliability.
- What are the typical power dissipation values at different supply voltages?
Typically 10 μA at 3.3 V, 2.5 V, and 1.8 V.
- Is the input/output compatible with CMOS logic levels?
Yes, the input/output levels are CMOS compatible.
- Where can I find detailed specifications and datasheets for this component?
Detailed specifications and datasheets can be found on the Nexperia website or through distributors like Digi-Key and LCSC Electronics.
- What are some common applications for this IC?
Common applications include general-purpose logic, low-power consumer electronics, automotive systems, industrial control systems, and communication equipment.
