BC858B-TP
  • Share:

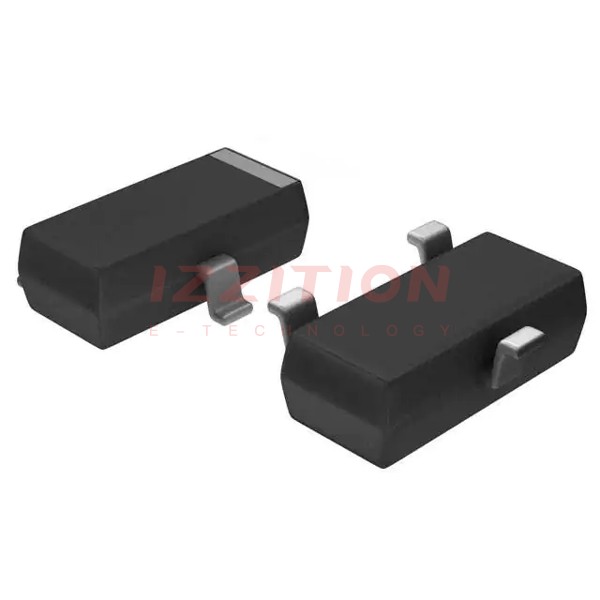

Micro Commercial Co BC858B-TP

Manufacturer No:
BC858B-TP
Manufacturer:
Micro Commercial Co
Package:
Tape & Reel (TR)
Description:
TRANS PNP 30V 0.1A SOT23
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BC858B-TP is a PNP general-purpose transistor produced by Micro Commercial Co, utilizing the SOT23 (TO-236AB) surface-mounted device (SMD) plastic package. This transistor is part of the BC856, BC857, and BC858 series, known for their low current and low voltage characteristics, making them suitable for a variety of general-purpose switching and amplification applications.

Key Specifications

ParameterMinTypMaxUnit
Collector-Emitter Voltage (VCEO)---30V
Collector Current (IC)---100mA
Peak Collector Current (ICM)---200mA
DC Current Gain (hFE)220-475-
Total Power Dissipation (Ptot)--250mW
Junction Temperature (Tj)--150°C
Transition Frequency (fT)--100MHz

Key Features

  • Low current capability (max. 100 mA)
  • Low voltage operation (max. 30 V)
  • PNP general-purpose transistor in SOT23 (TO-236AB) SMD plastic package
  • Automotive qualified
  • Halogen-free and meets UL 94 V-0 flammability rating
  • Moisture Sensitivity Level 1

Applications

The BC858B-TP is suitable for various applications, including general-purpose switching and amplification. It is particularly useful in automotive and industrial contexts due to its automotive qualification and robust specifications. Other applications include mobile, consumer, and power electronics where low current and low voltage transistors are required.

Q & A

  1. What is the maximum collector-emitter voltage of the BC858B-TP? The maximum collector-emitter voltage (VCEO) is -30 V.
  2. What is the maximum collector current of the BC858B-TP? The maximum collector current (IC) is -100 mA.
  3. What is the typical DC current gain (hFE) of the BC858B-TP? The DC current gain (hFE) ranges from 220 to 475.
  4. What is the total power dissipation (Ptot) of the BC858B-TP? The total power dissipation (Ptot) is 250 mW.
  5. What is the junction temperature (Tj) of the BC858B-TP? The junction temperature (Tj) is up to 150 °C.
  6. Is the BC858B-TP automotive qualified? Yes, the BC858B-TP is automotive qualified.
  7. What package type does the BC858B-TP use? The BC858B-TP uses the SOT23 (TO-236AB) surface-mounted device (SMD) plastic package.
  8. What are the common applications of the BC858B-TP? Common applications include general-purpose switching and amplification, automotive, industrial, mobile, and consumer electronics.
  9. Is the BC858B-TP halogen-free? Yes, the BC858B-TP is halogen-free and meets UL 94 V-0 flammability rating.
  10. What is the moisture sensitivity level of the BC858B-TP? The moisture sensitivity level is 1.

Product Attributes

Transistor Type:PNP
Current - Collector (Ic) (Max):100 mA
Voltage - Collector Emitter Breakdown (Max):30 V
Vce Saturation (Max) @ Ib, Ic:650mV @ 5mA, 100mA
Current - Collector Cutoff (Max):15nA
DC Current Gain (hFE) (Min) @ Ic, Vce:220 @ 2mA, 5V
Power - Max:200 mW
Frequency - Transition:200MHz
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-236-3, SC-59, SOT-23-3
Supplier Device Package:SOT-23
0 Remaining View Similar

In Stock

$0.15
1,629

Please send RFQ , we will respond immediately.
