Overview
The MBRD835L-T-F is a high-performance Schottky rectifier diode manufactured by Diodes Incorporated. This device is designed to operate as an output rectifier, free-wheeling diode, and protection diode in various switching power supplies, inverters, and other inductive switching circuits. The MBRD835L-T-F utilizes the Schottky Barrier principle with a proprietary barrier metal, ensuring low forward voltage drop and high efficiency.
Key Specifications
| Characteristic | Symbol | Value | Unit |
|---|---|---|---|
| Voltage - DC Reverse (Vr) (Max) | VRRM | 35 | V |
| Current - Average Rectified (Io) | IF(AV) | 8 | A |
| Voltage - Forward (Vf) (Max) @ If | Vf | 0.51 | V @ 8A |
| Peak Repetitive Forward Current | IFRM | 16 | A |
| Operating Junction Temperature | TJ | -65°C to 150°C | °C |
| Storage Temperature | Tstg | -55°C to 150°C | °C |

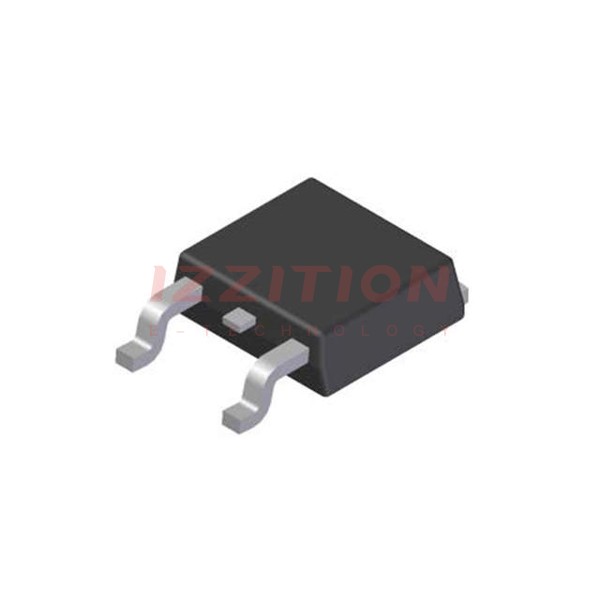

| Package | TO-252-3, DPAK (2 Leads + Tab), SC-63 | ||
| Mounting Type | Surface Mount | ||
| Weight | wt | Approximately 0.39 g | |
| RoHS Compliance | Yes |
Key Features
- Low Forward Voltage Drop: The MBRD835L-T-F features a low forward voltage drop of 0.51 V at 8 A, enhancing efficiency in power conversion applications.
- High Operating Junction Temperature: The device can operate up to a junction temperature of 150°C, making it suitable for high-temperature environments.
- Compact Size: The DPAK package is compact and designed for surface mount, facilitating space-saving designs.
- High Purity Epoxy Encapsulation: The high purity, high temperature epoxy encapsulation ensures reliability and durability.
- RoHS Compliance: The MBRD835L-T-F is lead-free and RoHS compliant, meeting environmental regulations.
- AEC-Q101 Qualified: For automotive and other applications requiring unique site and control change requirements, this device is AEC-Q101 qualified and PPAP capable.
Applications
- Switching Power Supplies: Ideal for use as output rectifiers and free-wheeling diodes in switching power supplies.
- Inverters: Suitable for inverter applications due to its high efficiency and low forward voltage drop.
- Inductive Switching Circuits: Used in various inductive switching circuits where high current handling and low voltage drop are critical.
- Automotive Systems: AEC-Q101 qualified, making it suitable for automotive and other high-reliability applications.
Q & A
- What is the maximum DC reverse voltage of the MBRD835L-T-F?
The maximum DC reverse voltage (VRRM) is 35 V.
- What is the average rectified forward current (IF(AV)) of the MBRD835L-T-F?
The average rectified forward current (IF(AV)) is 8 A.
- What is the maximum forward voltage drop at 8 A for the MBRD835L-T-F?
The maximum forward voltage drop at 8 A is 0.51 V.
- What is the operating junction temperature range of the MBRD835L-T-F?
The operating junction temperature range is -65°C to 150°C.
- Is the MBRD835L-T-F RoHS compliant?
Yes, the MBRD835L-T-F is lead-free and RoHS compliant.
- What package types are available for the MBRD835L-T-F?
The device is available in TO-252-3, DPAK (2 Leads + Tab), and SC-63 packages.
- What are the typical applications of the MBRD835L-T-F?
Typical applications include switching power supplies, inverters, inductive switching circuits, and automotive systems.
- Is the MBRD835L-T-F qualified for automotive use?
Yes, it is AEC-Q101 qualified and PPAP capable, making it suitable for automotive and other high-reliability applications.
- What is the weight of the MBRD835L-T-F?
The approximate weight is 0.39 grams.
- What is the peak repetitive forward current of the MBRD835L-T-F?
The peak repetitive forward current (IFRM) is 16 A.
