Overview

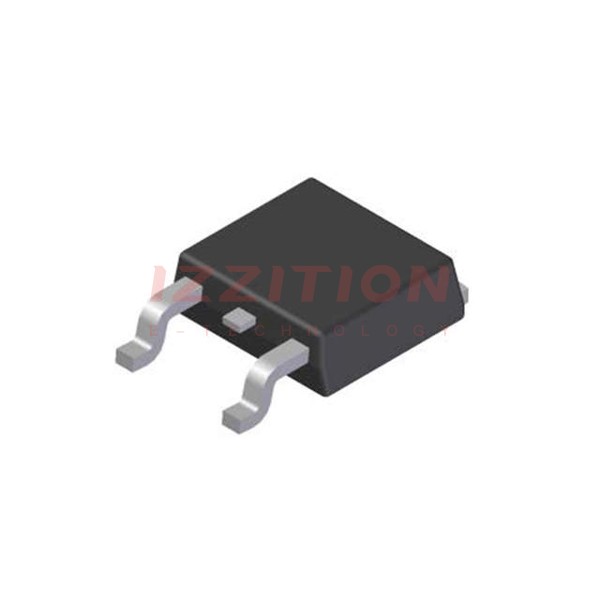

The MBRD835L-T is a Schottky rectifier diode produced by Diodes Incorporated. This component is designed for use in switch-mode power supplies, inverters, and other inductive switching circuits. It utilizes the Schottky Barrier principle with a proprietary barrier metal, offering low forward voltage and high efficiency. The diode is packaged in a TO-252 (D-Pak) surface mount package, making it suitable for a variety of applications requiring compact and reliable rectification.
Key Specifications
| Product Attribute | Attribute Value |
|---|---|
| Manufacturer | Diodes Incorporated |
| Voltage - Forward (Vf) (Max) @ If | 510 mV @ 8 A |
| Voltage - DC Reverse (Vr) (Max) | 35 V |
| Technology | Schottky |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Mounting Type | Surface Mount |
| Current - Average Rectified (Io) | 8 A |
| Current - Reverse Leakage @ Vr | 1.4 mA @ 35 V |
| Operating Temperature - Junction | -65°C ~ 125°C |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| RoHs Status | RoHS Compliant |
| REACH Status | REACH Affected |
Key Features
- Low Forward Voltage: The MBRD835L-T features a maximum forward voltage of 510 mV at 8 A, ensuring high efficiency in power conversion.
- Fast Recovery Time: With a recovery time of less than 500 ns and greater than 200 mA, this diode is suitable for high-frequency applications.
- Compact Package: The TO-252 (D-Pak) surface mount package is compact and lead-formed, making it ideal for space-constrained designs.
- High Operating Temperature: The diode can operate over a junction temperature range of -65°C to 125°C.
- RoHS and REACH Compliance: The component is RoHS compliant and REACH affected, ensuring environmental sustainability.
Applications
The MBRD835L-T is designed for use in various applications, including:
- Switch-mode Power Supplies: It serves as an output rectifier, free-wheeling diode, and protection diode in switching power supplies.
- Inverters and Inductive Switching Circuits: Its low forward voltage and fast recovery time make it suitable for inverter and other inductive switching applications.
- Protection and Steering Diodes: It can be used as a protection diode to safeguard against voltage spikes and as a steering diode to direct current flow.
Q & A
- What is the maximum forward voltage of the MBRD835L-T?
The maximum forward voltage of the MBRD835L-T is 510 mV at 8 A. - What is the maximum DC reverse voltage of the MBRD835L-T?
The maximum DC reverse voltage is 35 V. - What is the average rectified forward current of the MBRD835L-T?
The average rectified forward current is 8 A. - What is the operating junction temperature range of the MBRD835L-T?
The operating junction temperature range is -65°C to 125°C. - Is the MBRD835L-T RoHS compliant?
Yes, the MBRD835L-T is RoHS compliant. - What is the recovery time of the MBRD835L-T?
The recovery time is less than 500 ns and greater than 200 mA. - What type of package does the MBRD835L-T use?
The MBRD835L-T uses a TO-252-3 (D-Pak) surface mount package. - What are the typical applications of the MBRD835L-T?
The MBRD835L-T is typically used in switch-mode power supplies, inverters, and other inductive switching circuits. - What is the moisture sensitivity level (MSL) of the MBRD835L-T?
The MSL is 1 (Unlimited). - Is the MBRD835L-T lead-free?
Yes, the MBRD835L-T is lead-free and RoHS compliant.
