Overview

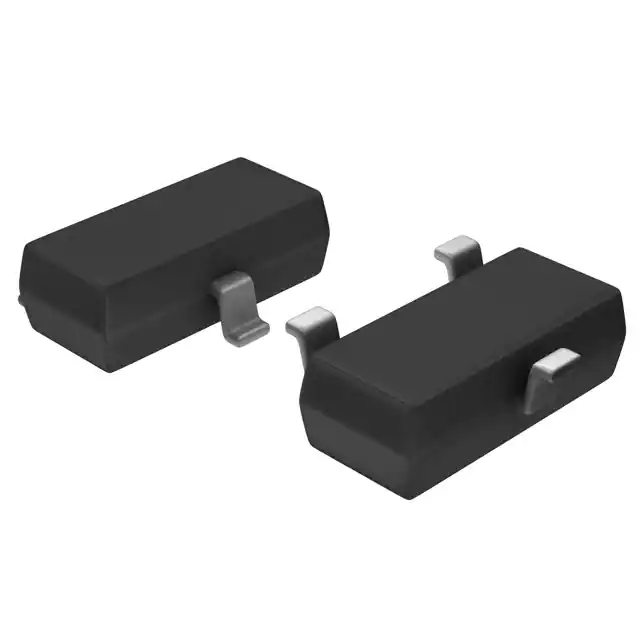

The BZX84C6V2-7-F-31 is a zener diode produced by Diodes Incorporated. This component is part of the BZX84 series, known for its high reliability and stability in voltage regulation applications. The BZX84C6V2-7-F-31 is packaged in a SOT-23 enclosure, making it suitable for a wide range of electronic circuits where space is a concern.
Key Specifications
| Parameter | Value |
|---|---|
| Zener Voltage (Vz) | 6.2V ±6% |
| Power Dissipation (Pz) | 250 mW |
| Maximum Zener Current (Iz) | 52 mA |
| Maximum Zener Impedance (Zz) | 10 Ω |
| Operating Temperature Range | -65°C to +150°C |
| Package Type | SOT-23 |
Key Features
- High stability and low noise zener diode.
- Compact SOT-23 package for space-saving designs.
- Wide operating temperature range from -65°C to +150°C.
- Low zener impedance for better voltage regulation.
- High reliability and long lifespan.
Applications
The BZX84C6V2-7-F-31 zener diode is suitable for various applications requiring stable voltage regulation, such as:
- Voltage reference circuits.
- Overvoltage protection.
- Signal clipping and clamping.
- Audio and RF circuits.
- Automotive and industrial control systems.
Q & A
- What is the zener voltage of the BZX84C6V2-7-F-31?
The zener voltage is 6.2V with a tolerance of ±6%. - What is the maximum power dissipation of this diode?
The maximum power dissipation is 250 mW. - What is the package type of the BZX84C6V2-7-F-31?
The package type is SOT-23. - What is the operating temperature range of this diode?
The operating temperature range is from -65°C to +150°C. - What are the typical applications of the BZX84C6V2-7-F-31?
Typical applications include voltage reference circuits, overvoltage protection, signal clipping and clamping, audio and RF circuits, and automotive and industrial control systems. - What is the maximum zener current of the BZX84C6V2-7-F-31?
The maximum zener current is 52 mA. - Is the BZX84C6V2-7-F-31 suitable for high-frequency applications?
Yes, it is suitable due to its low zener impedance and high stability. - Can the BZX84C6V2-7-F-31 be used in automotive applications?
Yes, it can be used in automotive applications due to its wide operating temperature range and high reliability. - What is the significance of the 'F-31' suffix in the part number?
The 'F-31' suffix indicates specific packaging and manufacturing details, such as the manufacturing site and packaging configuration. - Where can I find detailed specifications and datasheets for the BZX84C6V2-7-F-31?
Detailed specifications and datasheets can be found on the Diodes Incorporated website, as well as on distributor websites like Digi-Key and Mouser Electronics.
