Overview

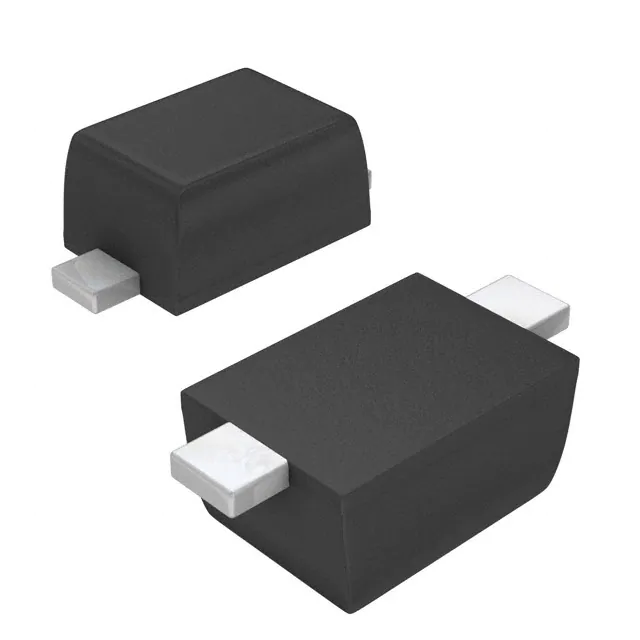

The BAS521Q-13 is a high voltage switching diode manufactured by Diodes Incorporated. This component is designed for high-performance applications requiring fast switching speeds and high reverse breakdown voltage. It is particularly suited for automotive and general-purpose use due to its robust specifications and reliability.
Key Specifications
| Parameter | Value |
|---|---|
| Maximum Reverse Breakdown Voltage | 300V |
| Maximum Forward Current | 1A |
| Maximum Forward Voltage Drop | 1.2V at 1A |
| Leakage Current at Room Temperature | 100nA |
| Switching Speed | Max. 50ns |
| Package Type | SOD523 |
| Operating Temperature Range | -55°C to 150°C |
Key Features
- Fast Switching Speed: Maximum of 50ns, ensuring quick response times in high-frequency applications.
- High Reverse Breakdown Voltage: 300V, providing robust protection against reverse voltage spikes.
- Low Leakage Current: 100nA at room temperature, minimizing power loss and enhancing efficiency.
- Automotive Grade: Suitable for use in automotive applications due to its reliability and performance under varying conditions.
Applications
- Automotive Systems: Ideal for use in various automotive electronic systems where high reliability and performance are critical.
- General Purpose Switching: Suitable for general-purpose switching applications requiring fast switching speeds and high voltage handling.
- Power Supplies: Can be used in power supply circuits to protect against voltage spikes and ensure efficient operation.
Q & A
- What is the maximum reverse breakdown voltage of the BAS521Q-13?
The maximum reverse breakdown voltage is 300V. - What is the typical leakage current at room temperature?
The leakage current at room temperature is 100nA. - What is the maximum switching speed of the BAS521Q-13?
The maximum switching speed is 50ns. - What package type is the BAS521Q-13 available in?
The BAS521Q-13 is available in the SOD523 package type. - Is the BAS521Q-13 suitable for automotive applications?
Yes, the BAS521Q-13 is suitable for automotive applications. - What is the operating temperature range of the BAS521Q-13?
The operating temperature range is -55°C to 150°C. - What is the maximum forward current rating of the BAS521Q-13?
The maximum forward current rating is 1A. - What is the typical forward voltage drop at 1A?
The typical forward voltage drop at 1A is 1.2V. - Where can I find detailed specifications for the BAS521Q-13?
Detailed specifications can be found in the datasheet available on Diodes Incorporated's official website or through distributors like Digi-Key. - Is the BAS521Q-13 available in tape and reel packaging?
Yes, the BAS521Q-13 is available in tape and reel packaging, with 10,000 units per reel.
