BC869TA
  • Share:

Diodes Incorporated BC869TA

Manufacturer No:
BC869TA
Manufacturer:
Diodes Incorporated
Package:
Digi-Reel®
Description:

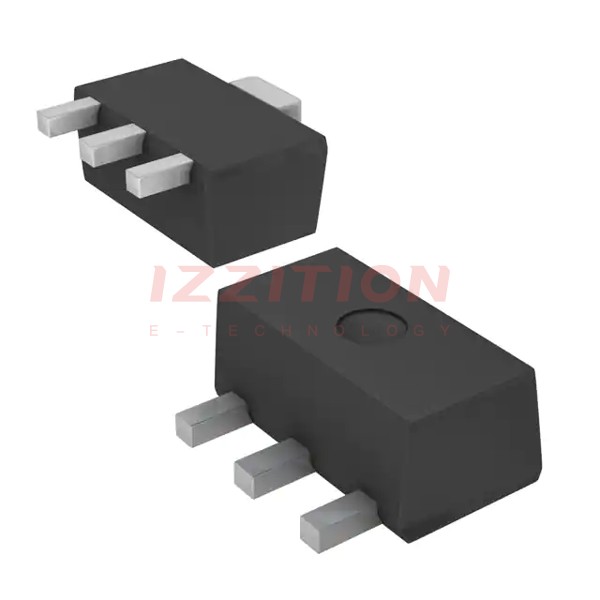

TRANS PNP 20V 1A SOT-89
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BC869TA is a PNP medium power transistor manufactured by Diodes Incorporated. This transistor is designed to handle high current and low voltage applications, making it suitable for a variety of electronic circuits. It is part of the BC869 series, which includes several variants with different current gain selections.

Key Specifications

ParameterMin.Typ.Max.Unit
VCEO (Collector-Emitter Voltage)--20V
IC (Collector Current, DC)--1A
ICM (Peak Collector Current)--2A
hFE (DC Current Gain)85-375-
VCEsat (Collector-Emitter Saturation Voltage)--500 mV-
Ptot (Total Power Dissipation)--1.2 W-
Tj (Junction Temperature)--150 °C-
Tamb (Ambient Temperature)-65 °C-150 °C-

Key Features

  • High current handling capability
  • Low voltage operation
  • Three current gain selections (BC869, BC869-16, BC869-25)
  • High total power dissipation of up to 1.2 W
  • Collector pad for good heat transfer in SOT89 package

Applications

  • Linear voltage regulators
  • High side switch
  • Supply line switch
  • MOSFET driver
  • Audio (pre-) amplifiers
  • Low voltage, high current LF applications

Q & A

  1. What is the maximum collector-emitter voltage of the BC869TA?
    The maximum collector-emitter voltage (VCEO) is 20 V.
  2. What is the maximum collector current of the BC869TA?
    The maximum collector current (IC) is 1 A.
  3. What are the different current gain selections available for the BC869 series?
    The BC869 series includes BC869, BC869-16, and BC869-25 with different current gain ranges.
  4. What is the total power dissipation of the BC869TA?
    The total power dissipation (Ptot) is up to 1.2 W.
  5. What are the typical applications of the BC869TA?
    The BC869TA is used in linear voltage regulators, high side switches, supply line switches, MOSFET drivers, and audio amplifiers.
  6. What is the junction temperature range of the BC869TA?
    The junction temperature (Tj) range is up to 150 °C.
  7. What is the ambient temperature range of the BC869TA?
    The ambient temperature (Tamb) range is from -65 °C to 150 °C.
  8. What package type is the BC869TA available in?
    The BC869TA is available in the SOT89 package.
  9. Does the BC869TA have a collector pad for heat transfer?
    Yes, the SOT89 package includes a collector pad for good heat transfer.
  10. What are the emitter-base cut-off current and collector-base cut-off current of the BC869TA?
    The emitter-base cut-off current (IEBO) and collector-base cut-off current (ICBO) are typically in the range of -100 nA to -10 μA.

Product Attributes

Transistor Type:PNP
Current - Collector (Ic) (Max):1 A
Voltage - Collector Emitter Breakdown (Max):20 V
Vce Saturation (Max) @ Ib, Ic:500mV @ 100mA, 1A
Current - Collector Cutoff (Max):-
DC Current Gain (hFE) (Min) @ Ic, Vce:85 @ 500mA, 1V
Power - Max:1 W
Frequency - Transition:60MHz
Operating Temperature:-65°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-243AA
Supplier Device Package:SOT-89-3
0 Remaining View Similar

In Stock

-
603

Please send RFQ , we will respond immediately.
