Overview

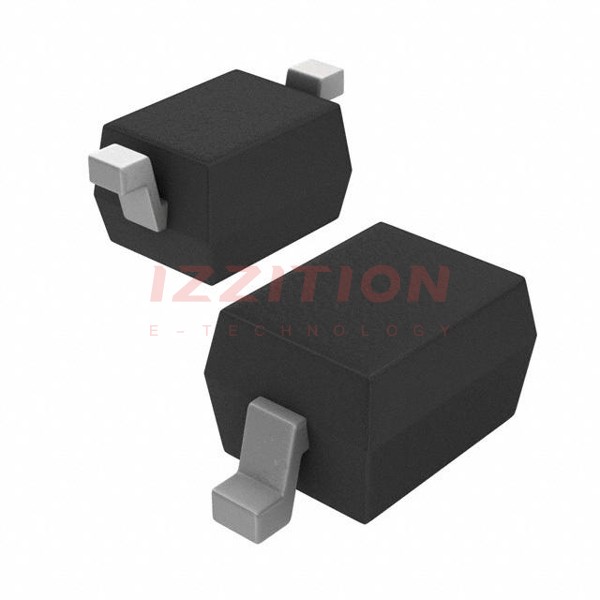

The BAT760-7 from Diodes Incorporated is a high-performance Schottky barrier diode designed for various electronic applications. This component is characterized by its low forward voltage drop, high conductance, and robust transient protection. The BAT760-7 is packaged in a SOD-323 format, making it suitable for surface-mount applications. It is fully RoHS compliant, lead-free, and halogen and antimony free, aligning with modern environmental standards. This diode is also qualified to JEDEC standards for high reliability, ensuring its suitability for demanding environments.
Key Specifications
| Attribute | Value | Unit |
|---|---|---|
| Peak Repetitive Reverse Voltage (VRRM) | 30 | V |
| Working Peak Reverse Voltage (VRWM) | 30 | V |
| Average Rectified Output Current (IO) | 1 | A |
| Non-Repetitive Peak Forward Surge Current (IFSM) | 5.5 | A |
| Forward Voltage Drop (VF) at 1A | 550 | mV |
| Leakage Current (IR) at 15V | 50 | µA |
| Total Capacitance (CT) at 1MHz | 25 | pF |
| Operating and Storage Temperature Range | -65 to +150 | °C |
| Package | SOD-323 | |
| Moisture Sensitivity | Level 1 per J-STD-020 |
Key Features
- Very Low Forward Voltage Drop: The BAT760-7 features a very low forward voltage drop, which is crucial for minimizing power losses in high-current applications.
- Guard Ring Construction for Transient Protection: This diode includes a guard ring construction to provide enhanced protection against transient voltages.
- High Conductance: It offers high conductance, making it suitable for applications requiring high current handling.
- RoHS Compliant and Lead-Free: The BAT760-7 is fully RoHS compliant, lead-free, and halogen and antimony free, ensuring environmental sustainability.
- High Reliability: Qualified to JEDEC standards, this diode is designed for high reliability in various applications.
Applications
The BAT760-7 Schottky diode is versatile and can be used in a variety of applications, including:
- Power Supplies: Due to its low forward voltage drop and high current handling, it is ideal for use in power supply circuits.
- Rectifier Circuits: Its high conductance and low leakage current make it suitable for rectifier circuits in AC-DC converters.
- Automotive Systems: An automotive-compliant version (BAT760Q) is available, making it a reliable choice for automotive applications.
- High-Frequency Switching: The fast recovery time and low capacitance of this diode make it suitable for high-frequency switching applications.
Q & A
- What is the peak repetitive reverse voltage of the BAT760-7?
The peak repetitive reverse voltage (VRRM) of the BAT760-7 is 30V. - What is the average rectified output current of the BAT760-7?
The average rectified output current (IO) of the BAT760-7 is 1A. - What is the forward voltage drop of the BAT760-7 at 1A?
The forward voltage drop (VF) at 1A is 550mV. - Is the BAT760-7 RoHS compliant?
Yes, the BAT760-7 is fully RoHS compliant, lead-free, and halogen and antimony free. - What is the package type of the BAT760-7?
The BAT760-7 is packaged in a SOD-323 format. - What is the operating temperature range of the BAT760-7?
The operating and storage temperature range of the BAT760-7 is -65 to +150°C. - What are the key features of the BAT760-7?
The key features include very low forward voltage drop, guard ring construction for transient protection, high conductance, and full RoHS compliance. - What are some common applications of the BAT760-7?
- Is the BAT760-7 suitable for high-reliability applications?
Yes, the BAT760-7 is qualified to JEDEC standards for high reliability. - What is the total capacitance of the BAT760-7 at 1MHz?
The total capacitance (CT) at 1MHz is 25pF.
