Overview

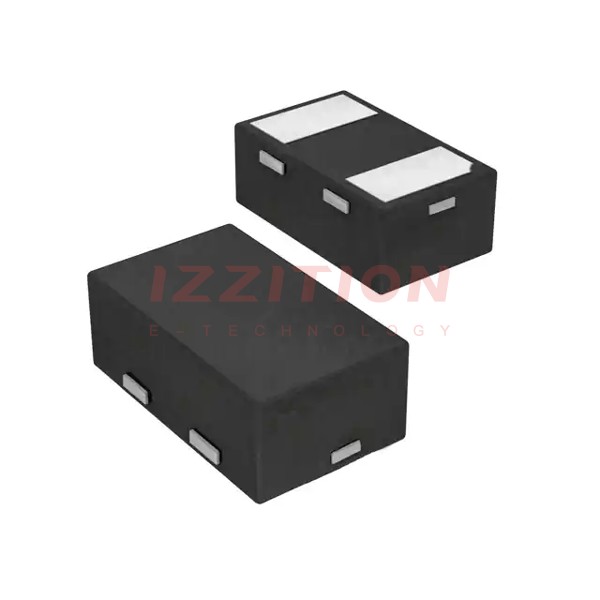

The BAT54LP-7-79 is a small signal Schottky diode produced by Diodes Incorporated. This component is designed for high-performance applications requiring low forward voltage drop and fast switching times. The BAT54LP-7-79 is packaged in a 2-DFN (Dual Flat No-Lead) package, making it suitable for space-constrained designs. It is widely used in various electronic circuits where efficient rectification and switching are critical.
Key Specifications
| Parameter | Value |
|---|---|
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 100 mA |
| Current - Average Rectified (Io) | 200 mA |
| Reverse Recovery Time (trr) | 5 ns |
| Current - Reverse Leakage @ Vr | 2 µA @ 25 V |
| Capacitance @ Vr, F | 10 pF @ 1 V, 1 MHz |
| Maximum Operating Voltage | 30 V |
| Package Type | 2-DFN (Dual Flat No-Lead) |
Key Features
- Low forward voltage drop (Vf) of 1 V at 100 mA, reducing power losses in the circuit.
- Fast switching times with a reverse recovery time (trr) of 5 ns, making it suitable for high-frequency applications.
- Low reverse leakage current of 2 µA at 25 V, ensuring minimal current drain when not in use.
- Compact 2-DFN package, ideal for space-constrained designs.
- High capacitance of 10 pF at 1 V and 1 MHz, suitable for applications requiring low capacitance.
Applications
- Switching power supplies and DC-DC converters where fast switching and low voltage drop are essential.
- High-frequency rectification in RF and microwave circuits.
- Audio and video signal processing where low distortion and fast switching are required.
- Automotive and industrial control systems needing reliable and efficient diodes.
Q & A
- What is the maximum forward voltage drop of the BAT54LP-7-79?
The maximum forward voltage drop (Vf) of the BAT54LP-7-79 is 1 V at 100 mA.
- What is the reverse recovery time of the BAT54LP-7-79?
The reverse recovery time (trr) of the BAT54LP-7-79 is 5 ns.
- What is the average rectified current (Io) of the BAT54LP-7-79?
The average rectified current (Io) of the BAT54LP-7-79 is 200 mA.
- What is the package type of the BAT54LP-7-79?
The BAT54LP-7-79 is packaged in a 2-DFN (Dual Flat No-Lead) package.
- What is the maximum operating voltage of the BAT54LP-7-79?
The maximum operating voltage of the BAT54LP-7-79 is 30 V.
- What is the capacitance of the BAT54LP-7-79 at 1 V and 1 MHz?
The capacitance of the BAT54LP-7-79 at 1 V and 1 MHz is 10 pF.
- What are some common applications of the BAT54LP-7-79?
The BAT54LP-7-79 is commonly used in switching power supplies, high-frequency rectification, audio and video signal processing, and automotive and industrial control systems.
- Why is the BAT54LP-7-79 preferred in high-frequency applications?
The BAT54LP-7-79 is preferred in high-frequency applications due to its fast switching times and low forward voltage drop).
- How does the BAT54LP-7-79 reduce power losses in circuits?
The BAT54LP-7-79 reduces power losses in circuits through its low forward voltage drop, minimizing the energy dissipated as heat).
- What are the benefits of the 2-DFN package of the BAT54LP-7-79?
The 2-DFN package of the BAT54LP-7-79 offers a compact design, making it ideal for space-constrained applications).
