B560C-13-F
  • Share:

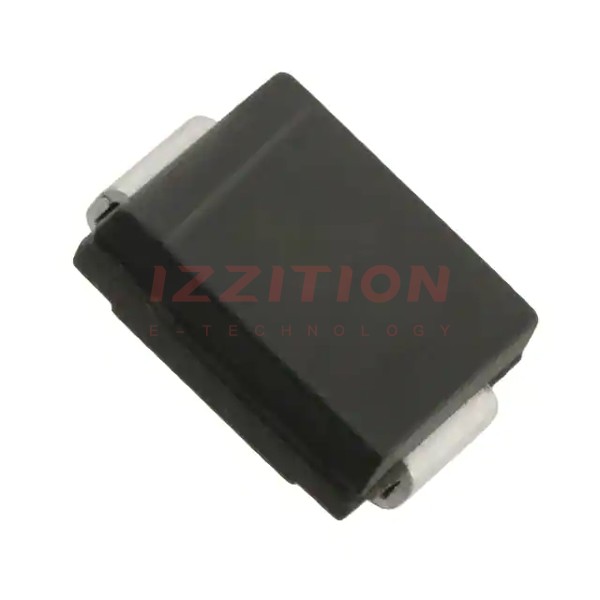

Diodes Incorporated B560C-13-F

Manufacturer No:
B560C-13-F
Manufacturer:
Diodes Incorporated
Package:
Tape & Reel (TR)
Description:
DIODE SCHOTTKY 60V 5A SMC
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The B560C-13-F is a high-efficiency 60 V, 5 A surface mount Schottky barrier rectifier produced by Diodes Incorporated. This component is part of the B560 series and is available in an SMC (DO-214AB) package. It is designed to meet the general requirements of commercial applications, offering low power loss and high efficiency. The device operates over a wide temperature range from -55°C to +125°C, making it suitable for various industrial and automotive applications.

Key Specifications

Attribute Value
Average Rectified Current-Max 5 A
Peak Current-Max 175 A
Reverse Voltage-Max [Vrrm] 60 V
Reverse Current-Max 0.5 mA
Forward Voltage 0.7 V
Package Style SMC (DO-214AB)
Mounting Method Surface Mount
Operating Temperature Range -55°C to +125°C
Storage Temperature Range -55°C to +150°C

Key Features

The B560C-13-F features several key benefits:

  • Guard Ring Die Construction for Transient Protection
  • Ideally Suited for Automated Assembly
  • Low Power Loss, High Efficiency
  • Lead-Free Finish; RoHS Compliant
  • Halogen and Antimony Free, 'Green' Device
  • Qualified to JEDEC standards for High Reliability

Applications

The B560C-13-F is suitable for a variety of applications, including:

  • Low Voltage, High Frequency Inverters
  • Free Wheeling Diodes
  • Polarity Protection Diodes
  • Re-circulating Diodes
  • Switching Diodes

Q & A

  1. What is the maximum average rectified current of the B560C-13-F?

    5 A.

  2. What is the peak current rating of the B560C-13-F?

    175 A.

  3. What is the maximum reverse voltage of the B560C-13-F?

    60 V.

  4. What is the forward voltage drop of the B560C-13-F?

    0.7 V.

  5. In what package style is the B560C-13-F available?

    SMC (DO-214AB).

  6. What is the operating temperature range of the B560C-13-F?

    -55°C to +125°C.

  7. Is the B560C-13-F RoHS compliant?
  8. What are the key features of the B560C-13-F?

    Guard Ring Die Construction, low power loss, high efficiency, and suitability for automated assembly.

  9. What applications is the B560C-13-F suited for?

    Low voltage, high frequency inverters, free wheeling, polarity protection, and switching diodes.

  10. Is the B560C-13-F qualified to any specific standards?

Product Attributes

Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):60 V
Current - Average Rectified (Io):5A
Voltage - Forward (Vf) (Max) @ If:700 mV @ 5 A
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):-
Current - Reverse Leakage @ Vr:500 µA @ 60 V
Capacitance @ Vr, F:300pF @ 4V, 1MHz
Mounting Type:Surface Mount
Package / Case:DO-214AB, SMC
Supplier Device Package:SMC
Operating Temperature - Junction:-55°C ~ 150°C
0 Remaining View Similar

In Stock

$0.56
1,326

Please send RFQ , we will respond immediately.

Same Series
B540C-13-F
B540C-13-F
DIODE SCHOTTKY 40V 5A SMC
B530C-13-F
B530C-13-F
DIODE SCHOTTKY 30V 5A SMC
B550C-13-F
B550C-13-F
DIODE SCHOTTKY 50V 5A SMC
B520C-13-F
B520C-13-F
DIODE SCHOTTKY 20V 5A SMC
B540CQ-13-F
B540CQ-13-F
DIODE SCHOTTKY 40V 5A SMC
B560C-13
B560C-13
DIODE SCHOTTKY 60V 5A SMC
B520C-13
B520C-13
DIODE SCHOTTKY 20V 5A SMC
B530C-13
B530C-13
DIODE SCHOTTKY 30V 5A SMC
B540C-13
B540C-13
DIODE SCHOTTKY 40V 5A SMC
B550C-13
B550C-13
DIODE SCHOTTKY 50V 5A SMC

Similar Products

Part Number B560C-13-F B560CQ-13-F B520C-13-F B530C-13-F B540C-13-F B550C-13-F
Manufacturer Diodes Incorporated Diodes Incorporated Diodes Incorporated Diodes Incorporated Diodes Incorporated Diodes Incorporated
Product Status Active Active Active Active Active Active
Diode Type Schottky Schottky Schottky Schottky Schottky Schottky
Voltage - DC Reverse (Vr) (Max) 60 V 60 V 20 V 30 V 40 V 50 V
Current - Average Rectified (Io) 5A 5A 5A 5A 5A 5A
Voltage - Forward (Vf) (Max) @ If 700 mV @ 5 A 700 mV @ 5 A 550 mV @ 5 A 550 mV @ 5 A 550 mV @ 5 A 700 mV @ 5 A
Speed Fast Recovery =< 500ns, > 200mA (Io) Fast Recovery =< 500ns, > 200mA (Io) Fast Recovery =< 500ns, > 200mA (Io) Fast Recovery =< 500ns, > 200mA (Io) Fast Recovery =< 500ns, > 200mA (Io) Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) - - - - - -
Current - Reverse Leakage @ Vr 500 µA @ 60 V 500 µA @ 60 V 500 µA @ 20 V 500 µA @ 30 V 500 µA @ 40 V 500 µA @ 50 V
Capacitance @ Vr, F 300pF @ 4V, 1MHz 300pF @ 4V, 1MHz 300pF @ 4V, 1MHz 300pF @ 4V, 1MHz 300pF @ 4V, 1MHz 300pF @ 4V, 1MHz
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
Package / Case DO-214AB, SMC DO-214AB, SMC DO-214AB, SMC DO-214AB, SMC DO-214AB, SMC DO-214AB, SMC
Supplier Device Package SMC SMC SMC SMC SMC SMC
Operating Temperature - Junction -55°C ~ 150°C -55°C ~ 150°C -55°C ~ 150°C -55°C ~ 150°C -55°C ~ 150°C -55°C ~ 150°C
