Overview
The Texas Instruments TMS320TCI6482DZTZA is a fixed-point digital signal processor (DSP) designed for high-performance applications in communications infrastructure. This device is part of the TMS320TCI6482 series and is known for its robust processing capabilities and extensive peripheral set. The TCI6482 DSP is built on the C64x+ core, which provides a highly efficient and flexible processing environment. It is particularly suited for applications requiring intense signal processing, such as wireless base stations, media gateways, and other high-end communication systems.
Key Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Texas Instruments |
| Series | TMS320TCI6482 |
| Core | C64x+ |
| Clock Frequency | Up to 1 GHz |
| Instruction Set | Fixed-Point |

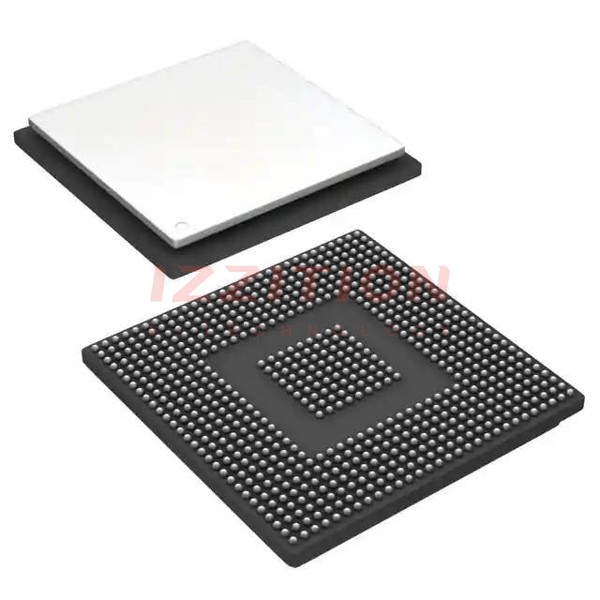

| Package Type | FCBGA (ZTZ) |
| Pins | 697 |
| Dimensions (mm) | 24 x 24 x 2.65 |
| Pitch (mm) | 0.8 |
| RoHS Compliance | Not Compliant |
| Pb Free | No |
Key Features
- High-Performance Core: The C64x+ core provides high processing power with up to 1 GHz clock frequency.
- Enhanced DMA (EDMA3): Supports data transfers at up to 21 GB/sec, enhancing system performance and debugging capabilities.
- Integrated Peripherals: Includes Ethernet MAC (EMAC) supporting 10/100/1000Mbps, Serial RapidIO (SRIO), and other interfaces like MII, RMII, GMII, and RGMII.
- Viterbi and Turbo Coprocessors: VCP2 and TCP2 coprocessors for efficient decoding of convolutional and turbo codes, respectively.
- Memory and Cache: Supports various internal memory configurations, including cache and SRAM options.
- Power Management: Application-dependent power consumption with tools for modeling and optimizing power usage.
Applications
- Wireless Base Stations: Ideal for baseband processing in wireless communication systems.
- Media Gateways: Used in media gateway applications requiring high-performance signal processing.
- High-End Communication Systems: Suitable for various high-end communication infrastructure applications.
- Embedded Systems: Can be used in other embedded systems requiring intense signal processing capabilities.
Q & A
- What is the clock frequency of the TMS320TCI6482DZTZA?
The clock frequency of the TMS320TCI6482DZTZA can be up to 1 GHz.
- What type of core does the TMS320TCI6482DZTZA use?
The TMS320TCI6482DZTZA uses the C64x+ core.
- What is the package type of the TMS320TCI6482DZTZA?
The package type is FCBGA (ZTZ) with 697 pins.
- Is the TMS320TCI6482DZTZA RoHS compliant?
No, the TMS320TCI6482DZTZA is not RoHS compliant.
- What is the maximum data transfer rate of the EDMA3 controller?
The EDMA3 controller can maintain transfers at up to 21 GB/sec.
- What types of interfaces does the EMAC module support?
The EMAC module supports MII, RMII, GMII, and RGMII interfaces.
- What are the VCP2 and TCP2 coprocessors used for?
The VCP2 and TCP2 coprocessors are used for decoding convolutional and turbo codes, respectively.
- How can I optimize power consumption on the TMS320TCI6482DZTZA?
Power consumption can be optimized using the provided power spreadsheet and application notes on power management.
- What is the purpose of the Serial RapidIO (SRIO) interface?
The SRIO interface is an industry-standard high-speed switched-packet interconnect used for high-speed data transfer.
- Can I use the TMS320TCI6482DZTZA for I2C boot load?
