Overview

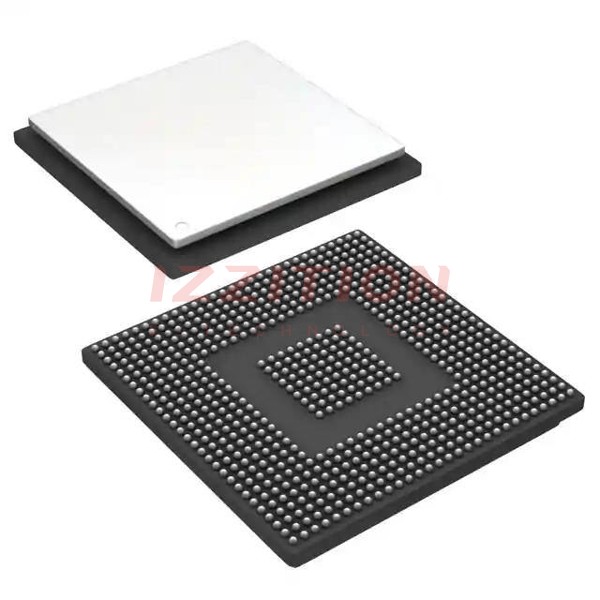

The TMS320TCI6482BZTZA is a high-performance, low-power Digital Signal Processor (DSP) from Texas Instruments, designed specifically for wireless infrastructure applications. This DSP is part of the TMS320C64x+ family and is optimized for soft digital baseband processing in wireless base stations. It leverages advanced very long instruction word (VLIW) architecture, enabling the execution of up to eight 32-bit instructions per cycle. The TCI6482BZTZA offers a powerful and efficient platform for multi-standard, soft digital baseband solutions, making it a cornerstone in contemporary wireless infrastructure equipment.
Key Specifications
| Specification | Details |
|---|---|
| Processor Core | TMS320C64x+™ DSP core |
| Operating Frequency | 1 GHz |
| Instruction Cycle Time | 1 ns |
| Performance | Up to 8000 MIPS, 8000 MMACs |
| Power Consumption | Approximately 3 watts |
| Memory | 2 MB of L2 memory, L1P and L1D cache memory (32K each) |
| Interfaces | Four 1x serial RapidIO™ interfaces, Gigabit Ethernet MAC, UTOPIA, PCI, HPI, GPIO |
| Coprocessors | Viterbi decoder coprocessor (VCP2), Turbo decoder coprocessor (TCP2) |
| Process Technology | 90nm process technology |
Key Features
- Leverages industry-leading 90nm process technology for high performance and low power consumption.
- Features a VLIW architecture, allowing up to eight 32-bit instructions per cycle.
- Includes 28 new instructions to improve baseband performance, such as packing, sorting, bit manipulation, and Galois field multiplications.
- First DSP with serial RapidIO interface, providing scalable connectivity and control among processing components.
- Integrated coprocessors: VCP2 and TCP2 for enhanced channel decoding operations.
- High-performance memory subsystem with 2 MB of L2 memory and scalable L1 cache.
- Enhanced Direct Memory Access (EDMA) controller for low-latency data transfer.
- Gigabit Ethernet MAC and UTOPIA interface for network communication.
Applications
- Wireless base stations: Supports TD-SCDMA, UMTS (3GPP), CDMA2000 (3GPP2), GSM-EDGE, and 802.16 standards.
- Macro and micro base stations: Enables high-density, low-power solutions for various wireless infrastructure applications.
- Multi-standard, soft digital baseband solutions: Facilitates the use of a single hardware platform for multiple wireless standards.
Q & A
- What is the TMS320TCI6482BZTZA DSP primarily used for?
The TMS320TCI6482BZTZA DSP is primarily used for wireless infrastructure applications, particularly for soft digital baseband processing in wireless base stations.
- What is the operating frequency of the TMS320TCI6482BZTZA?
The operating frequency of the TMS320TCI6482BZTZA is 1 GHz.
- How much power does the TMS320TCI6482BZTZA consume?
The TMS320TCI6482BZTZA consumes approximately 3 watts when operating at full speed.
- What type of memory does the TMS320TCI6482BZTZA have?
The TMS320TCI6482BZTZA has 2 MB of L2 memory and scalable L1 cache memory (32K each for L1P and L1D).
- What are the key interfaces supported by the TMS320TCI6482BZTZA?
The key interfaces include four 1x serial RapidIO™ interfaces, Gigabit Ethernet MAC, UTOPIA, PCI, HPI, and GPIO.
- Does the TMS320TCI6482BZTZA support any coprocessors?
Yes, it includes a Viterbi decoder coprocessor (VCP2) and a Turbo decoder coprocessor (TCP2).
- What process technology is used in the TMS320TCI6482BZTZA?
The TMS320TCI6482BZTZA uses 90nm process technology.
- What are the benefits of the serial RapidIO interface in the TMS320TCI6482BZTZA?
The serial RapidIO interface provides scalable connectivity and control among processing components, reducing system cost and improving system performance.
- Can the TMS320TCI6482BZTZA support multiple wireless standards?
Yes, it supports TD-SCDMA, UMTS (3GPP), CDMA2000 (3GPP2), GSM-EDGE, and 802.16 standards.
- How does the TMS320TCI6482BZTZA enhance channel decoding operations?
The TMS320TCI6482BZTZA enhances channel decoding operations through its integrated VCP2 and TCP2 coprocessors, which significantly speed up channel decoding for various cellular standards.
