TMS320C5504AZCH10
  • Share:

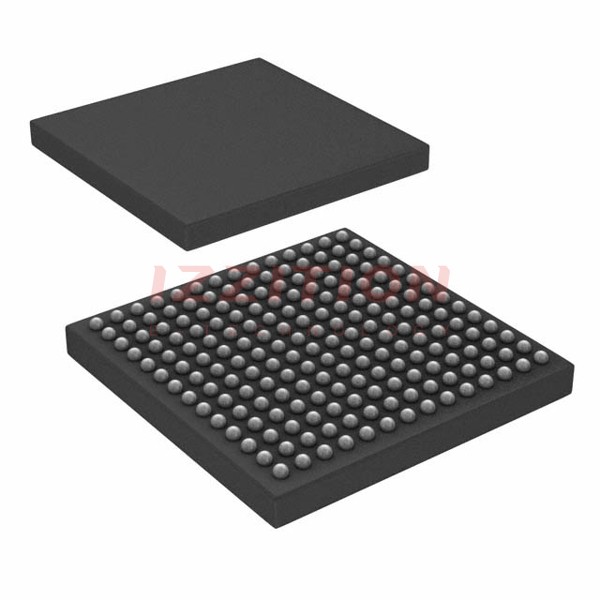

Texas Instruments TMS320C5504AZCH10

Manufacturer No:
TMS320C5504AZCH10
Manufacturer:
Texas Instruments
Package:
Bulk
Description:
IC DSP FIXED-POINT 196NFBGA
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The TMS320C5504AZCH10 is a high-performance, low-power fixed-point Digital Signal Processor (DSP) from Texas Instruments, part of the TMS320C5000™ DSP product family. This device is designed for low-power applications and is based on the TMS320C55x™ DSP generation CPU processor core. It features a robust architecture that achieves high performance through increased parallelism and a focus on power savings. The processor operates at clock rates up to 150 MHz and supports various interfaces such as USB, I²C, I²S, SPI, and UART/USART, making it versatile for a wide range of applications.

Key Specifications

SpecificationValue
Lifecycle StatusActive
RoHS ComplianceYes
REACH ComplianceYes
Package Type196-NFBGA (ZCH)
Operating Temperature-40°C to 85°C
Supply Voltage0.998V to 1.15V (Nominal: 1.05V)
Clock FrequencyUp to 150 MHz
Instruction Cycle Time16.67, 13.33, 10, 8.33, 6.66 ns
RAM256K Bytes (64K Bytes DARAM, 192K Bytes SARAM)
ROM128K Bytes
External Memory Interface16-/8-Bit EMIF
DMA Channels16 (4 DMA controllers with 4 channels each)
TimersThree 32-Bit General-Purpose Timers
InterfacesEBI/EMI, I²C, I²S, MMC/SD, SPI, UART/USART, USB

Key Features

  • High-performance, low-power TMS320C55x™ fixed-point DSP
  • Dual multipliers capable of up to 200, 240, or 300 million multiply-accumulates per second (MMACS)
  • Two arithmetic/logic units (ALUs)
  • Three internal data/operand read buses and two internal data/operand write buses
  • Software-compatible with C55x devices
  • Industrial temperature devices available
  • 256K Bytes of zero-wait state on-chip RAM and 128K Bytes of zero-wait state on-chip ROM
  • Direct Memory Access (DMA) controller with 16 channels
  • MultiMedia Card/Secure Digital (MMC/SD) interfaces, UART, SPI, and I²C
  • USB 2.0 full- and high-speed device support
  • Real-Time Clock (RTC) with crystal input and separate clock domain and power supply

Applications

The TMS320C5504AZCH10 is suitable for a variety of applications that require high-performance signal processing with low power consumption. These include:

  • Audio and video processing
  • Industrial control systems
  • Medical devices
  • Consumer electronics
  • Automotive systems
  • Telecommunications equipment

Q & A

  1. What is the TMS320C5504AZCH10?

    The TMS320C5504AZCH10 is a high-performance, low-power fixed-point Digital Signal Processor (DSP) from Texas Instruments.

  2. What is the maximum clock frequency of the TMS320C5504AZCH10?

    The maximum clock frequency is up to 150 MHz.

  3. What types of interfaces does the TMS320C5504AZCH10 support?

    The device supports EBI/EMI, I²C, I²S, MMC/SD, SPI, UART/USART, and USB interfaces.

  4. How much on-chip RAM does the TMS320C5504AZCH10 have?

    The device has 256K Bytes of zero-wait state on-chip RAM.

  5. Is the TMS320C5504AZCH10 RoHS and REACH compliant?

    Yes, it is both RoHS and REACH compliant.

  6. What is the operating temperature range of the TMS320C5504AZCH10?

    The operating temperature range is -40°C to 85°C.

  7. How many DMA channels does the TMS320C5504AZCH10 have?

    The device has 16 DMA channels, organized into four DMA controllers with four channels each.

  8. Does the TMS320C5504AZCH10 support USB?

    Yes, it supports USB 2.0 full- and high-speed device operations.

  9. What is the package type of the TMS320C5504AZCH10?

    The package type is 196-NFBGA (ZCH).

  10. Is the TMS320C5504AZCH10 suitable for industrial applications?

    Yes, it is suitable for industrial applications due to its industrial temperature range and robust features.

Product Attributes

Type:Fixed Point
Interface:EBI/EMI, I²C, I²S, MMC/SD, SPI, UART/USART, USB
Clock Rate:100MHz
Non-Volatile Memory:ROM (128kB)
On-Chip RAM:256KB
Voltage - I/O:1.8V, 2.5V, 2.8V, 3.3V
Voltage - Core:1.05V, 1.30V
Operating Temperature:-10°C ~ 70°C (TC)
Mounting Type:Surface Mount
Package / Case:196-LFBGA
Supplier Device Package:196-NFBGA (10x10)
