Overview
The TMS320TCI6482BZTZ is a 64-bit fixed-point digital signal processor (DSP) manufactured by Texas Instruments. This device is part of the TMS320TCI6482 series and is designed for communications infrastructure applications. It utilizes CMOS technology and operates at a frequency of 66.6 MHz. The TCI6482 is known for its high-performance capabilities, making it suitable for demanding signal processing tasks in various communication systems.
Key Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Texas Instruments |
| Series | TMS320TCI6482 |

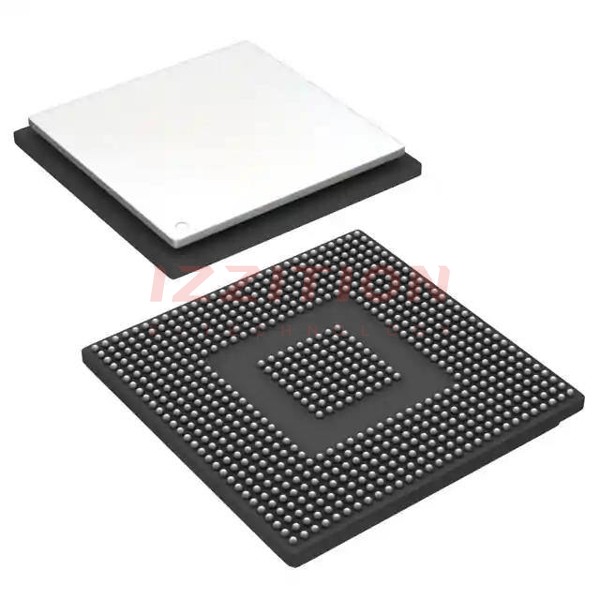

| Package Type | FCBGA (ZTZ) |
| Pins | 697 |
| Package Dimensions (mm) | 24 x 24 x 2.65 |
| Pitch (mm) | 0.8 |
| Max Height (mm) | 3.5 |
| Operating Frequency | 66.6 MHz |
| RoHS Compliance | Not Compliant |
| Pb Free | No |
Key Features
- High-Performance DSP Core: The TMS320TCI6482BZTZ features a 64-bit C64x+ DSP core, providing high computational power for complex signal processing tasks.
- Enhanced DMA (EDMA3): The device includes an EDMA3 controller, which is a highly efficient data transfer engine capable of maintaining transfers at up to 21 GB/sec at a 1 GHz CPU clock frequency.
- Viterbi and Turbo Coprocessors: Integrated VCP2 and TCP2 coprocessors for efficient decoding of convolutional and turbo codes, respectively.
- Ethernet MAC (EMAC): Supports 10/100/1000Mbps Ethernet with various interfaces to the physical layer device (PHY) including MII, RMII, GMII, and RGMII.
- Serial RapidIO (SRIO): An industry-standard high-speed switched-packet interconnect for high-bandwidth data transfer.
- DDR2 Interface: Supports DDR2 memory for high-speed data access.
Applications
- Communications Infrastructure: Ideal for use in base stations, media gateways, and other communication infrastructure equipment.
- Wireless Systems: Suitable for 3G and 4G wireless communication systems due to its integrated VCP2 and TCP2 coprocessors.
- Networking Equipment: Used in routers, switches, and other networking devices requiring high-performance signal processing.
- Industrial Automation: Can be used in industrial automation systems that require advanced signal processing capabilities.
Q & A
- What is the operating frequency of the TMS320TCI6482BZTZ?
The operating frequency of the TMS320TCI6482BZTZ is 66.6 MHz.
- What type of package does the TMS320TCI6482BZTZ use?
The TMS320TCI6482BZTZ uses a FCBGA (ZTZ) package.
- Does the TMS320TCI6482BZTZ support DDR2 memory?
Yes, the TMS320TCI6482BZTZ supports DDR2 memory.
- What are the integrated coprocessors in the TMS320TCI6482BZTZ?
The device includes VCP2 (Viterbi decoder coprocessor) and TCP2 (Turbo decoder coprocessor).
- Is the TMS320TCI6482BZTZ RoHS compliant?
No, the TMS320TCI6482BZTZ is not RoHS compliant.
- What is the maximum height of the TMS320TCI6482BZTZ package?
The maximum height of the package is 3.5 mm.
- What is the pitch of the package pins?
The pitch of the package pins is 0.8 mm.
- Does the TMS320TCI6482BZTZ support Serial RapidIO (SRIO)?
Yes, the device supports Serial RapidIO (SRIO).
- What is the purpose of the EDMA3 controller in the TMS320TCI6482BZTZ?
The EDMA3 controller is a highly efficient data transfer engine capable of maintaining transfers at up to 21 GB/sec at a 1 GHz CPU clock frequency.
- What are some common applications of the TMS320TCI6482BZTZ?
Common applications include communications infrastructure, wireless systems, networking equipment, and industrial automation.
