Overview

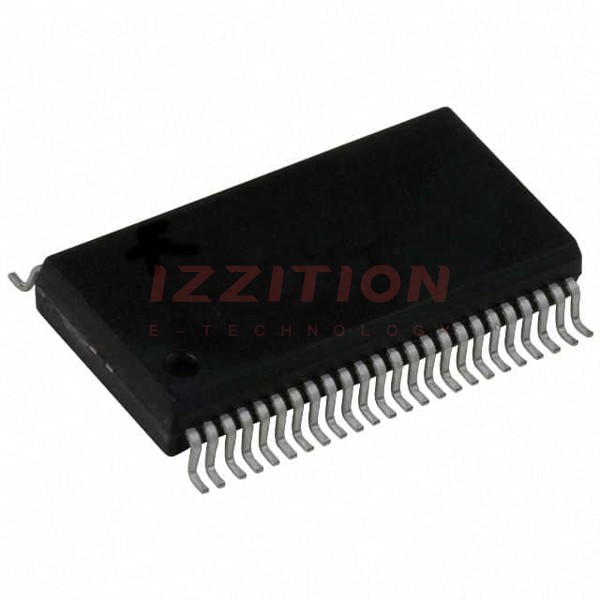

The SN74ALVC164245DGGT is a 16-bit (dual-octal) noninverting bus transceiver produced by Texas Instruments. This component is designed for asynchronous communication between data buses and features two separate supply rails. The A port operates at 2.5 V and 3.3 V, while the B port operates at 3.3 V and 5 V, allowing for voltage level translation between these environments. The control circuitry is powered by VCCA, ensuring efficient and reliable data transmission.
Key Specifications
| Specification | Value |
|---|---|
| Package Type | TSSOP (DGG) |
| Number of Pins | 48 |
| Operating Temperature Range (°C) | -40 to 85 |
| Maximum Propagation Delay (ns) at 3.3 V | 5.8 |
| Output Drive (mA) at 3.3 V | ±24 |
| Latch-Up Performance | Exceeds 250 mA per JESD 17 |
Key Features
- Member of the Texas Instruments Widebus™ Family
- Supports voltage level translation from 2.5 V to 3.3 V and from 3.3 V to 5 V
- Control Inputs V IH/V IL levels are referenced to VCCA voltage
- 3-State Outputs for high-impedance state during power up or power down
- High output drive capability of ±24 mA at 3.3 V
Applications
- Electronic Points of Sale
- Printers and Other Peripherals
- Motor Drives
- Wireless and Telecom Infrastructures
- Wearable Health and Fitness Devices
Q & A
- What is the primary function of the SN74ALVC164245DGGT?
The primary function is to facilitate asynchronous communication between data buses with voltage level translation capabilities. - What are the operating voltage ranges for the A and B ports?
The A port operates at 2.5 V and 3.3 V, while the B port operates at 3.3 V and 5 V. - What is the maximum propagation delay at 3.3 V?
The maximum propagation delay is 5.8 ns at 3.3 V. - What is the output drive capability at 3.3 V?
The output drive capability is ±24 mA at 3.3 V. - How should the output-enable (OE) input be configured during power up or power down?
The OE input should be tied to VCC through a pullup resistor to ensure a high-impedance state. - What is the latch-up performance of the SN74ALVC164245DGGT?
The latch-up performance exceeds 250 mA per JESD 17. - In what package type is the SN74ALVC164245DGGT available?
The component is available in a TSSOP (DGG) package with 48 pins. - What is the operating temperature range of the SN74ALVC164245DGGT?
The operating temperature range is -40°C to 85°C. - What are some typical applications of the SN74ALVC164245DGGT?
Typical applications include electronic points of sale, printers, motor drives, wireless and telecom infrastructures, and wearable health and fitness devices. - Is the SN74ALVC164245DGGT part of any specific family by Texas Instruments?
Yes, it is a member of the Texas Instruments Widebus™ Family.
