Overview

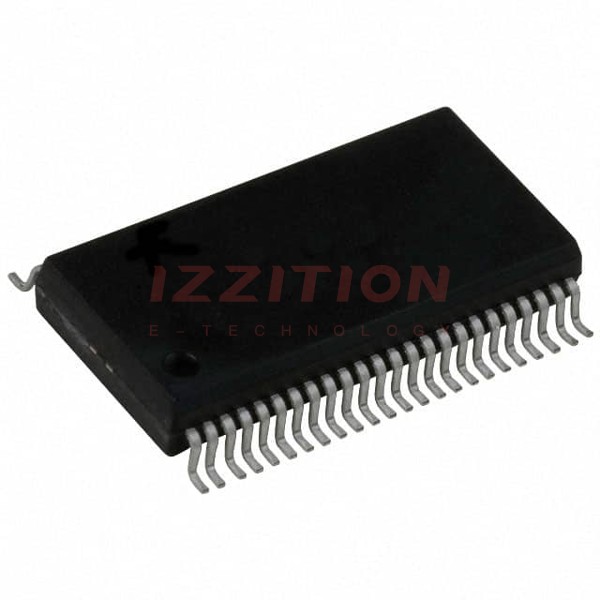

The SN74ALVC164245DGG is a 16-bit bidirectional noninverting bus transceiver produced by Texas Instruments. This device is part of the Texas Instruments Widebus™ Family and is designed for asynchronous communication between data buses. It features two separate supply rails, allowing for level-shifting between 2.5-V, 3.3-V, and 5-V environments. The device can operate as two 8-bit transceivers or one 16-bit transceiver, enabling data transmission from the A bus to the B bus or vice versa based on the direction-control (DIR) input. The output-enable (OE) input allows the device to be disabled, placing both output ports into a high-impedance state.
Key Specifications
| Parameter | Description | Value |
|---|---|---|
| Package | TSSOP (DGG) | 48 pins |
| Operating Voltage (VCCA) | 2.5 V to 3.3 V | |
| Operating Voltage (VCCB) | 3.3 V to 5 V | |
| Propagation Delay (tpd) | Maximum at 3.3 V | 5.8 ns |
| Output Drive | At 3.3 V | ±24 mA |
| Input Voltage Range | Up to VCC + 0.5 V | |
| Operating Temperature Range | -40°C to 85°C | |
| Latch-Up Performance | Exceeds 250 mA per JESD 17 |
Key Features
- Member of the Texas Instruments Widebus™ Family
- Maximum propagation delay of 5.8 ns at 3.3 V
- ±24-mA output drive at 3.3 V
- Control inputs VIH/VIL levels are referenced to VCCA voltage
- Latch-up performance exceeds 250 mA per JESD 17
- Allows for level-shifting between 2.5-V, 3.3-V, and 5-V environments
- Output-enable (OE) input for high-impedance state control
Applications
- Electronic Points of Sale
- Printers and Other Peripherals
- Motor Drives
- Wireless and Telecom Infrastructures
- Wearable Health and Fitness Devices
Q & A
- What is the primary function of the SN74ALVC164245DGG? The primary function is to act as a 16-bit bidirectional noninverting bus transceiver for asynchronous communication between data buses.
- What are the operating voltage ranges for VCCA and VCCB? VCCA operates from 2.5 V to 3.3 V, and VCCB operates from 3.3 V to 5 V.
- What is the maximum propagation delay at 3.3 V? The maximum propagation delay at 3.3 V is 5.8 ns.
- What is the output drive capability at 3.3 V? The output drive capability at 3.3 V is ±24 mA.
- How does the device handle level-shifting? The device allows for level-shifting between 2.5-V, 3.3-V, and 5-V environments.
- What is the purpose of the output-enable (OE) input? The output-enable (OE) input is used to disable the device, placing both output ports into a high-impedance state.
- What are some common applications for this device? Common applications include electronic points of sale, printers, motor drives, wireless and telecom infrastructures, and wearable health and fitness devices.
- What is the operating temperature range for this device? The operating temperature range is -40°C to 85°C.
- What is the latch-up performance of the device? The latch-up performance exceeds 250 mA per JESD 17.
- How many pins does the TSSOP (DGG) package have? The TSSOP (DGG) package has 48 pins.
