Overview
The SN74ALVC164245DGGR is a 16-bit dual-supply bus transceiver produced by Texas Instruments. This device is designed for asynchronous communication between data buses and features configurable voltage translation and 3-state outputs. It allows for voltage-level translation between different voltage environments, such as from 2.5 V to 3.3 V, or from 3.3 V to 5 V, making it versatile for mixed-voltage systems. The control circuitry is powered by VCCA, and the device supports live insertion and withdrawal (partial-power-down mode).
Key Specifications
| Parameter | Value |
|---|---|
| Package Type | TSSOP-48 |
| Pin Count | 48 |
| Logic Family | ALVC |
| Voltage - VCCA | 2.3 V to 3.6 V |
| Voltage - VCCB | 3 V to 5.5 V |
| Operating Temperature Range | -40°C to 85°C |
| Mounting Type | Surface Mount |
| Absolute Propagation Delay Time | 2.4 ns (typical at 3.3 V) |
| Output Drive | ±24 mA at 3.3 V |
| Latch-Up Performance | Exceeds 250 mA per JESD 17 |
| ESD Protection | Exceeds JESD 22 |
Key Features
- Bidirectional voltage-level translation between 2.5 V, 3.3 V, and 5 V environments.
- Dual-supply voltage operation with separate power-supply rails for A and B ports.
- 16-bit bus transceiver with 3-state outputs.
- Supports mixed-mode signal operation and live insertion and withdrawal (partial-power-down mode).
- High-speed data transfer capability with a maximum propagation delay of 5.8 ns at 3.3 V.
- Low power consumption and wide operating temperature range suitable for industrial applications.
- Compatible with various bus standards such as I2C, SPI, and UART.
Applications
- Mixed-voltage systems and voltage translation in multi-VCC systems.
- Data bus interfacing and signal buffering.
- Telecommunications and wireless infrastructure.
- Computing systems and consumer electronics.
- Electronic points of sale, printers, and other peripherals.
- Motor drives and wearable health and fitness devices.
Q & A
- What is the primary function of the SN74ALVC164245DGGR? The SN74ALVC164245DGGR is a 16-bit dual-supply bus transceiver designed for asynchronous communication between data buses and voltage-level translation between different voltage environments.
- What are the supported voltage ranges for VCCA and VCCB? VCCA supports 2.3 V to 3.6 V, and VCCB supports 3 V to 5.5 V.
- What is the typical propagation delay time for this device? The typical propagation delay time is 2.4 ns at 3.3 V.
- What is the output drive capability of the SN74ALVC164245DGGR? The device has an output drive capability of ±24 mA at 3.3 V.
- Does the SN74ALVC164245DGGR support live insertion and withdrawal? Yes, it supports live insertion and withdrawal (partial-power-down mode).
- What are the key applications of the SN74ALVC164245DGGR? Key applications include mixed-voltage systems, telecommunications, computing systems, consumer electronics, and more.
- What is the operating temperature range of the SN74ALVC164245DGGR? The operating temperature range is -40°C to 85°C.

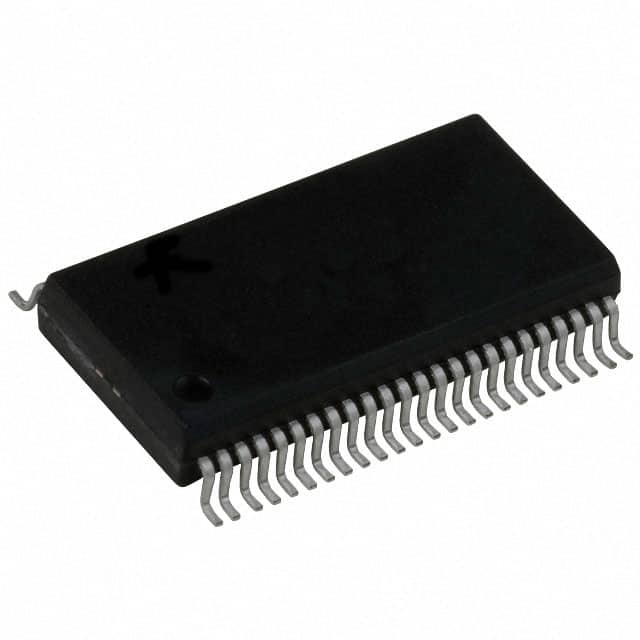

- What type of package does the SN74ALVC164245DGGR come in? It comes in a 48-pin TSSOP package.
- Does the SN74ALVC164245DGGR have ESD protection? Yes, it exceeds JESD 22 ESD protection standards.
- What logic family does the SN74ALVC164245DGGR belong to? It belongs to the ALVC logic family.
