Overview
The VND830LSP is a monolithic double-channel high-side driver designed using STMicroelectronics’ VIPower™ M0-3 Technology. This device is intended for driving various types of multiple loads with one side connected to ground. It features an Active VCC pin voltage clamp that protects the device against low energy spikes, as specified in the ISO7637 transient compatibility table. Additionally, the device includes active current limitation combined with thermal shutdown and automatic restart to protect against overload conditions.
Key Specifications
| Parameter | Value |
|---|---|
| Type | High-Side Driver |
| Mounting Style | SMD/SMT |

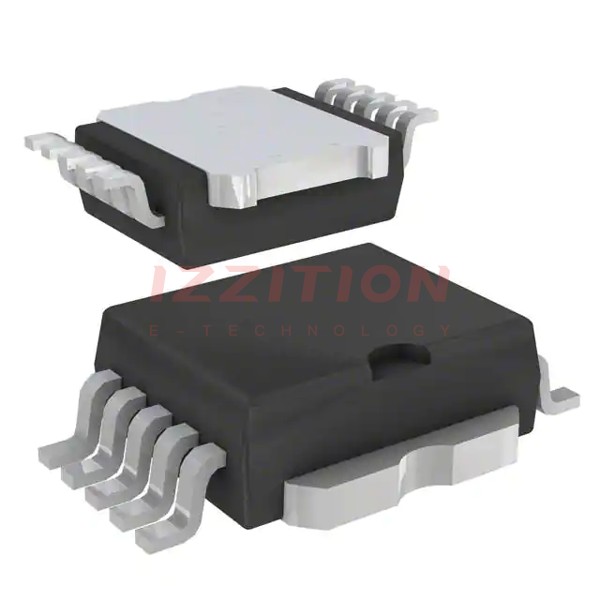

| Package / Case | PowerSO-10 |
| Number of Outputs | 2 |
| Supply Voltage - Min | 5.5 V |
| Minimum Operating Temperature | -40°C |
| RDS(on) | 60 mΩ (per channel) |
| Maximum Current | 18 A (per channel) |
| Maximum Voltage | 36 V |
Key Features
- CMOS compatible inputs
- Open drain status outputs
- On-state open-load detection
- Off-state open-load detection
- Shorted load protection
- Undervoltage and overvoltage shutdown
- Loss of ground protection
- Very low standby current
- Reverse battery protection
Applications
The VND830LSP is suitable for a variety of applications, including automotive systems, industrial control systems, and any scenario where high-side driving of multiple loads is required. Its robust protection features and low standby current make it an ideal choice for applications needing reliable and efficient load management.
Q & A
- What is the VND830LSP used for?
The VND830LSP is used for driving any type of multiple load with one side connected to ground, particularly in automotive and industrial applications.
- What technology is the VND830LSP based on?
The VND830LSP is based on STMicroelectronics’ VIPower™ M0-3 Technology.
- What is the minimum supply voltage for the VND830LSP?
The minimum supply voltage for the VND830LSP is 5.5 V.
- How many output channels does the VND830LSP have?
The VND830LSP has 2 output channels.
- What is the maximum current per channel for the VND830LSP?
The maximum current per channel for the VND830LSP is 18 A.
- Does the VND830LSP have open-load detection?
Yes, the VND830LSP has both on-state and off-state open-load detection.
- What kind of protection does the VND830LSP offer against overload?
The VND830LSP offers active current limitation combined with thermal shutdown and automatic restart to protect against overload.
- Is the VND830LSP protected against reverse battery conditions?
Yes, the VND830LSP includes reverse battery protection.
- What is the package type of the VND830LSP?
The VND830LSP comes in a PowerSO-10 package.
- Does the VND830LSP have loss of ground protection?
Yes, the VND830LSP includes loss of ground protection and will automatically turn off if the ground pin becomes disconnected.
