Overview

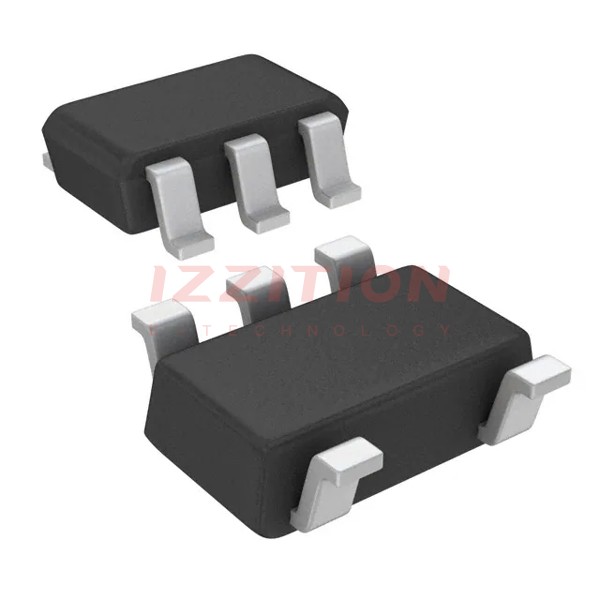

The TSV911AILT operational amplifier from STMicroelectronics is part of the TSV91x and TSV91xA series, offering low voltage operation with rail-to-rail input and output. This op-amp is characterized by its excellent speed/power consumption ratio, providing an 8 MHz gain-bandwidth product while consuming only 1.1 mA maximum at 5 V. It is unity gain stable and features an ultra-low input bias current, making it ideal for sensor interfaces, battery-supplied and portable applications, as well as active filtering.
Key Specifications
| Parameter | Conditions | Min. | Typ. | Max. | Unit |
|---|---|---|---|---|---|
| Supply Voltage | 2.5 | 5.5 | V | ||
| Input Offset Voltage | Top = 25 °C | 0.1 | 4.5 | 7.5 | mV |
| Input Offset Current | Top = 25 °C | 1 | 10 | 100 | pA |
| Input Bias Current | Top = 25 °C | 1 | 10 | 100 | pA |
| Common Mode Rejection Ratio | 0 V to 5 V, Vout = 2.5 V, Top = 25 °C | 62 | 82 | dB | |
| Gain Bandwidth Product | RL = 2 kΩ, CL = 100 pF, f = 100 kHz, Top = 25 °C | 8 | MHz | ||
| Unity Gain Frequency | RL = 2 kΩ, CL = 100 pF, Top = 25 °C | 7.5 | MHz | ||
| Phase Margin | RL = 2 kΩ, CL = 100 pF, Top = 25 °C | 45 | Degrees | ||
| Supply Current (per channel) | No load, Vout = VCC/2 | 0.78 | 1.1 | 1.1 | mA |
| High-Level Output Voltage | RL = 10 kΩ | 15 | 40 | 40 | mV |
| Low-Level Output Voltage | RL = 10 kΩ | 15 | 40 | 40 | mV |
| Slew Rate | RL = 2 kΩ, CL = 100 pF, Av = 1, Top = 25 °C | 4.5 | V/μs |
Key Features
- Rail-to-rail input and output
- Wide bandwidth of 8 MHz
- Low power consumption: 820 µA typical at 5 V
- Unity gain stability
- High output current: up to 35 mA
- Operating voltage range from 2.5 V to 5.5 V
- Ultra-low input bias current: 1 pA typical
- Low input offset voltage: 1.5 mV maximum (A grade)
- Internal ESD protection ≥ 5 kV
- Latch-up immunity
Applications
The TSV911AILT is ideal for various applications including:
- Sensor interfaces
- Battery-supplied and portable applications
- Active filtering
Q & A
- What is the gain-bandwidth product of the TSV911AILT?
The gain-bandwidth product of the TSV911AILT is 8 MHz.
- What is the typical supply current of the TSV911AILT?
The typical supply current is 0.78 mA per channel at no load and Vout = VCC/2.
- What is the operating voltage range of the TSV911AILT?
The operating voltage range is from 2.5 V to 5.5 V.
- What is the input bias current of the TSV911AILT?
The input bias current is 1 pA typical.
- Is the TSV911AILT protected against ESD?
Yes, it has internal ESD protection ≥ 5 kV.
- What are the typical applications of the TSV911AILT?
It is used in sensor interfaces, battery-supplied and portable applications, as well as active filtering.
- What is the phase margin of the TSV911AILT?
The phase margin is 45 degrees at RL = 2 kΩ, CL = 100 pF, and Top = 25 °C.
- What is the slew rate of the TSV911AILT?
The slew rate is 4.5 V/μs at RL = 2 kΩ, CL = 100 pF, Av = 1, and Top = 25 °C.
- Is the TSV911AILT unity gain stable?
Yes, it is unity gain stable.
- What is the high-level output voltage of the TSV911AILT?
The high-level output voltage is 15 to 40 mV at RL = 10 kΩ.
