Overview

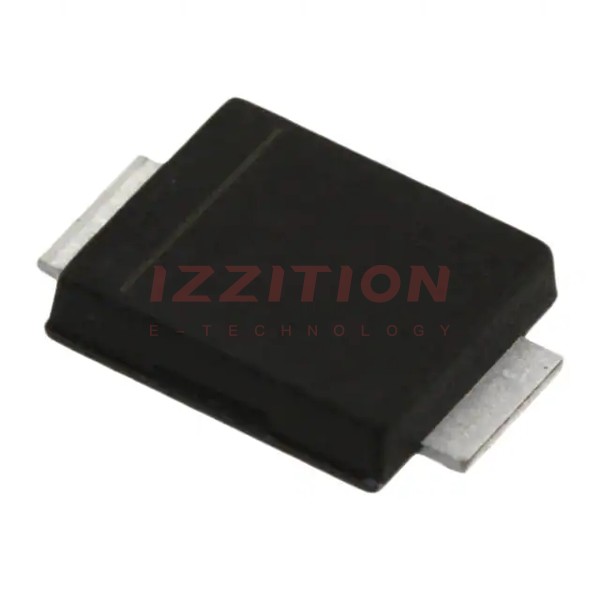

The STTH3L06UFY is a high-performance rectifier diode manufactured by STMicroelectronics. This component is part of the Automotive Turbo 2 ultrafast high voltage rectifier series, designed to meet the stringent requirements of automotive and industrial applications. It offers low forward voltage drop and ultrafast recovery times, making it suitable for a variety of high-frequency switching and rectification tasks.
Key Specifications
| Parameter | Value |
|---|---|
| Voltage Rating (VRRM) | 600 V |
| Current Rating (IF(AV)) | 3 A |
| Forward Voltage (VF) | 1.4 V |
| Reverse Recovery Time (trr) | Ultrafast |
| Package Type | SMBflat (Surface Mount) |
Key Features
- Ultrafast recovery time, reducing switching losses and improving efficiency in high-frequency applications.
- Low forward voltage drop, minimizing power dissipation and heat generation.
- High voltage rating of 600 V, suitable for high-voltage applications.
- Surface mount SMBflat package, facilitating easy integration into modern PCB designs.
- Automotive-grade reliability, meeting the stringent requirements of automotive and industrial environments.
Applications
- Automotive systems: power supplies, DC-DC converters, and rectification circuits.
- Industrial power supplies and converters.
- High-frequency switching applications.
- Rectification circuits in high-voltage systems.
- Power factor correction (PFC) circuits.
