ST7FLITE29F2M6TR
  • Share:

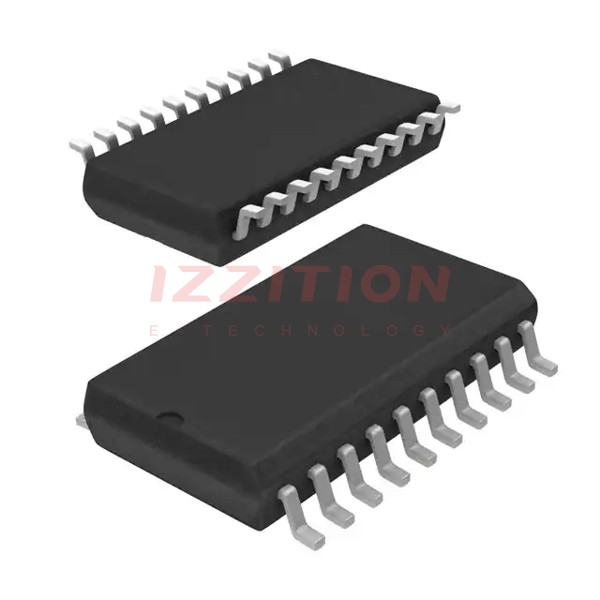

STMicroelectronics ST7FLITE29F2M6TR

Manufacturer No:
ST7FLITE29F2M6TR
Manufacturer:
STMicroelectronics
Package:
Tape & Reel (TR)
Description:
IC MCU 8BIT 8KB FLASH 20SO
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The ST7FLITE29F2M6TR is an 8-bit microcontroller from STMicroelectronics, designed for a variety of applications requiring low power consumption and robust performance. Although this specific part is now obsolete and no longer manufactured, it remains relevant for legacy systems and maintenance purposes. The ST7 series is known for its reliability and versatility in industrial, automotive, and consumer electronics.

Key Specifications

ParameterValue
Core Processor8-bit
Operating FrequencyUp to 8 MHz
Flash Memory8 KB (8K x 8)
PackagingTape & Reel (TR)
Part StatusObsolete

Key Features

  • Low power consumption, making it suitable for battery-powered devices.
  • High reliability and robustness, ideal for industrial and automotive applications.
  • 8-bit architecture with an operating frequency of up to 8 MHz.
  • 8 KB of flash memory for program storage.
  • Various peripheral interfaces and control functions.

Applications

The ST7FLITE29F2M6TR microcontroller is suitable for a range of applications, including:

  • Industrial control systems.
  • Automotive systems, such as dashboard controls and sensor interfaces.
  • Consumer electronics, like home appliances and remote controls.
  • Medical devices requiring low power and high reliability.

Q & A

  1. What is the ST7FLITE29F2M6TR?

    The ST7FLITE29F2M6TR is an 8-bit microcontroller produced by STMicroelectronics.

  2. What is the operating frequency of the ST7FLITE29F2M6TR?

    The operating frequency is up to 8 MHz.

  3. How much flash memory does the ST7FLITE29F2M6TR have?

    The microcontroller has 8 KB (8K x 8) of flash memory.

  4. What is the packaging type of the ST7FLITE29F2M6TR?

    The packaging type is Tape & Reel (TR).

  5. Is the ST7FLITE29F2M6TR still in production?

    No, the ST7FLITE29F2M6TR is obsolete and no longer manufactured.

  6. What are some common applications for the ST7FLITE29F2M6TR?

    Common applications include industrial control systems, automotive systems, consumer electronics, and medical devices.

  7. Why is the ST7FLITE29F2M6TR used in industrial applications?

    It is used due to its low power consumption and high reliability.

  8. Can the ST7FLITE29F2M6TR be used in automotive systems?

    Yes, it is suitable for automotive systems such as dashboard controls and sensor interfaces.

  9. What are some alternatives to the ST7FLITE29F2M6TR?

    Alternatives can be found through suppliers like Digi-Key, which lists similar microcontrollers.

  10. Where can I find detailed specifications for the ST7FLITE29F2M6TR?

    Detailed specifications can be found in the datasheet available from sources like Allicdata and Digi-Key.

Product Attributes

Core Processor:ST7
Core Size:8-Bit
Speed:8MHz
Connectivity:SPI
Peripherals:LVD, POR, PWM, WDT
Number of I/O:15
Program Memory Size:8KB (8K x 8)
Program Memory Type:Flash
EEPROM Size:256 x 8
RAM Size:384 x 8
Voltage - Supply (Vcc/Vdd):2.4V ~ 5.5V
Data Converters:A/D 7x10b
Oscillator Type:Internal
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Package / Case:20-SOIC (0.295", 7.50mm Width)
Supplier Device Package:20-SO
0 Remaining View Similar

In Stock

-
490

Please send RFQ , we will respond immediately.

Same Series
ST7FLITE20F2B6
ST7FLITE20F2B6
IC MCU 8BIT 8KB FLASH 20DIP
ST7FLITE25M6TR
ST7FLITE25M6TR
IC MCU 8BIT 8KB FLASH 20SO
ST7FLITE29F2M7TR
ST7FLITE29F2M7TR
IC MCU 8BIT 8KB FLASH 20SO
ST7FLITE29F2B6
ST7FLITE29F2B6
IC MCU 8BIT 8KB FLASH 20DIP
ST7FLITE20F2M6
ST7FLITE20F2M6
IC MCU 8BIT 8KB FLASH 20SO
ST7FLITE25F2B6
ST7FLITE25F2B6
IC MCU 8BIT 8KB FLASH 20DIP
ST7FLITE25F2M6
ST7FLITE25F2M6
IC MCU 8BIT 8KB FLASH 20SO
ST7FLITE20F1B6
ST7FLITE20F1B6
IC MCU 8BIT 8KB FLASH 20DIP
ST7FLITE25F1B6
ST7FLITE25F1B6
IC MCU 8BIT 8KB FLASH 20DIP
ST7FLITE29F1B6
ST7FLITE29F1B6
IC MCU 8BIT 8KB FLASH 20DIP
ST7FLITE29F2M6TR
ST7FLITE29F2M6TR
IC MCU 8BIT 8KB FLASH 20SO

Similar Products

Part Number ST7FLITE29F2M6TR ST7FLITE29F2M7TR ST7FLITE39F2M6TR
Manufacturer STMicroelectronics STMicroelectronics STMicroelectronics
Product Status Obsolete Not For New Designs Obsolete
Core Processor ST7 ST7 ST7
Core Size 8-Bit 8-Bit 8-Bit
Speed 8MHz 8MHz 16MHz
Connectivity SPI SPI LINbusSCI, SPI
Peripherals LVD, POR, PWM, WDT LVD, POR, PWM, WDT LVD, POR, PWM, WDT
Number of I/O 15 15 15
Program Memory Size 8KB (8K x 8) 8KB (8K x 8) 8KB (8K x 8)
Program Memory Type Flash Flash Flash
EEPROM Size 256 x 8 256 x 8 256 x 8
RAM Size 384 x 8 384 x 8 384 x 8
Voltage - Supply (Vcc/Vdd) 2.4V ~ 5.5V 2.4V ~ 5.5V 2.7V ~ 5.5V
Data Converters A/D 7x10b A/D 7x10b A/D 7x10b
Oscillator Type Internal Internal Internal
Operating Temperature -40°C ~ 85°C (TA) -40°C ~ 105°C (TA) -40°C ~ 85°C (TA)
Mounting Type Surface Mount Surface Mount Surface Mount
Package / Case 20-SOIC (0.295", 7.50mm Width) 20-SOIC (0.295", 7.50mm Width) 20-SOIC (0.295", 7.50mm Width)
Supplier Device Package 20-SO 20-SO 20-SO
