ST1510FX
  • Share:

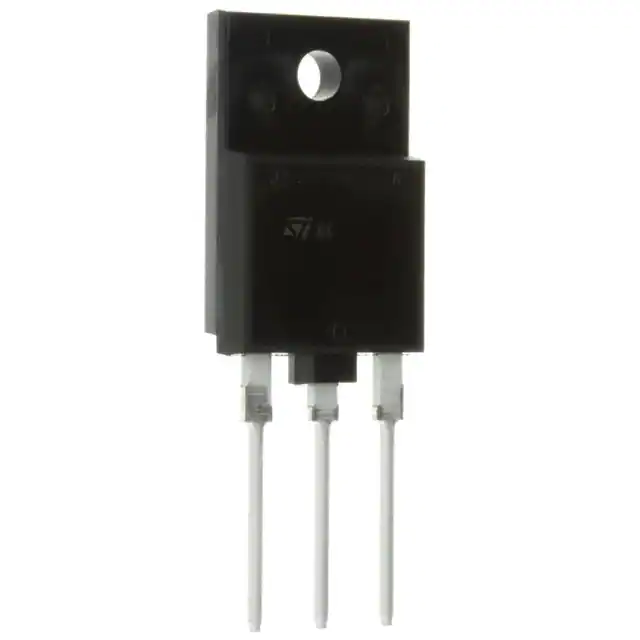

STMicroelectronics ST1510FX

Manufacturer No:
ST1510FX
Manufacturer:
STMicroelectronics
Package:
Tube
Description:
TRANS NPN 750V 12A ISOWATT-218FX
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The ST1510FX is a high-voltage, fast-switching NPN power transistor manufactured by STMicroelectronics. This transistor is produced using the Diffused Collector in Planar technology with an enhanced high voltage structure 1 (EHVS1), making it suitable for high-power applications. It is available in the TO3PF package and is known for its robust performance in various industrial and power management systems.

Key Specifications

ParameterValue
Transistor TypeNPN
Collector-Emitter Voltage (Vceo)1.5 kV
Collector Current (Ic)12 A
Power Dissipation (Pd)62 W
PackageTO3PF
MaterialSilicon (Si)

Key Features

  • High voltage capability up to 1.5 kV
  • High current handling up to 12 A
  • Fast-switching capabilities
  • Enhanced high voltage structure 1 (EHVS1) for improved performance
  • Robust TO3PF package for reliable operation in demanding environments

Applications

The ST1510FX transistor is suitable for a variety of high-power applications, including:

  • Power supplies and switching regulators
  • Motor control and drive systems
  • Industrial power management systems
  • High-voltage DC-DC converters
  • Automotive and aerospace systems requiring high reliability and performance

Q & A

  1. What is the collector-emitter voltage rating of the ST1510FX transistor?
    The collector-emitter voltage rating is 1.5 kV.
  2. What is the maximum collector current of the ST1510FX?
    The maximum collector current is 12 A.
  3. What is the power dissipation capability of the ST1510FX?
    The power dissipation capability is 62 W.
  4. In which package is the ST1510FX available?
    The ST1510FX is available in the TO3PF package.
  5. What technology is used to manufacture the ST1510FX?
    The ST1510FX is manufactured using Diffused Collector in Planar technology with an enhanced high voltage structure 1 (EHVS1).
  6. What are some typical applications of the ST1510FX transistor?
    Typical applications include power supplies, motor control systems, industrial power management, high-voltage DC-DC converters, and automotive/aerospace systems.
  7. What is the polarity of the ST1510FX transistor?
    The polarity of the ST1510FX transistor is NPN.
  8. What is the material used for the ST1510FX transistor?
    The material used is Silicon (Si).
  9. Is the ST1510FX suitable for high-switching frequency applications?
    Yes, the ST1510FX is designed for fast-switching applications.
  10. Where can I find detailed specifications for the ST1510FX?
    Detailed specifications can be found in the datasheet available on STMicroelectronics' official website and other electronics component distributors like Mouser, TME, etc.

Product Attributes

Transistor Type:NPN
Current - Collector (Ic) (Max):12 A
Voltage - Collector Emitter Breakdown (Max):750 V
Vce Saturation (Max) @ Ib, Ic:2V @ 1.5A, 6A
Current - Collector Cutoff (Max):200µA
DC Current Gain (hFE) (Min) @ Ic, Vce:6.5 @ 6A, 5V
Power - Max:62 W
Frequency - Transition:-
Operating Temperature:150°C (TJ)
Mounting Type:Through Hole
Package / Case:ISOWATT218FX
Supplier Device Package:ISOWATT-218FX
0 Remaining View Similar

In Stock

$3.09
104

Please send RFQ , we will respond immediately.
