Overview

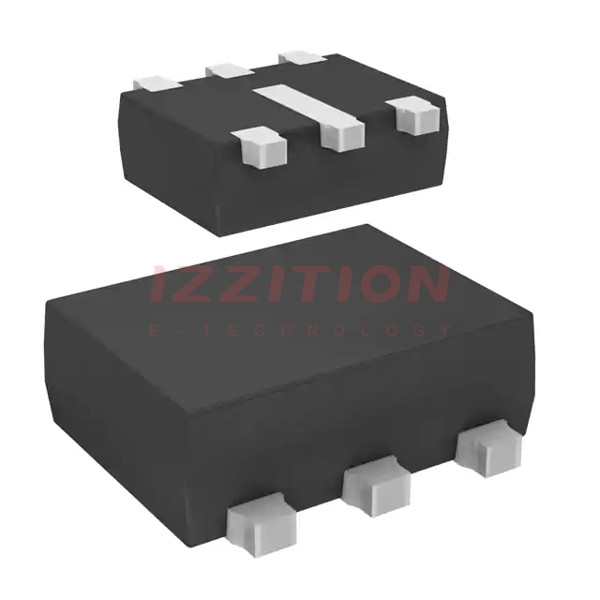

The ESDALCL6-4P6A is an Electrostatic Discharge (ESD) protection array designed and manufactured by STMicroelectronics. This component is engineered to protect data lines or other I/O ports against ESD transients, ensuring the reliability and longevity of electronic devices. It is characterized by its very low capacitance and low leakage current, making it suitable for a wide range of applications where high-speed data transmission and ESD protection are critical.
Key Specifications
| Parameter | Value |
|---|---|
| Package Type | SOT323 (SC-70-6) |
| Number of Channels | 6 |
| Capacitance (Typical) | 0.35 pF |
| Leakage Current (Typical) | 1 nA |
| ESD Protection | IEC 61000-4-2 Level 4 (±15 kV air, ±8 kV contact) |
| Operating Temperature Range | -40°C to 150°C |
| Lead Finish | Lead-free |
| Environmental Compliance | ECOPACK®, UL94 V0 |
Key Features
- Very low capacitance (0.35 pF typical) to minimize signal distortion.
- Low leakage current (1 nA typical) to reduce power consumption.
- High ESD protection level (IEC 61000-4-2 Level 4: ±15 kV air, ±8 kV contact).
- Lead-free package and ECOPACK® compliant for environmental sustainability.
- Meets UL94 V0 for flammability standards.
- Wide operating temperature range (-40°C to 150°C).
Applications
The ESDALCL6-4P6A is suitable for various applications requiring high-speed data transmission and robust ESD protection, including:
- Smartphones and mobile devices.
- Tablets and laptops.
- Automotive infotainment and navigation systems.
- Industrial control and automation systems.
- Medical devices and equipment.
- Consumer electronics such as TVs, set-top boxes, and gaming consoles.
Q & A
- What is the primary function of the ESDALCL6-4P6A?
The primary function of the ESDALCL6-4P6A is to protect data lines or other I/O ports against ESD transients. - What is the typical capacitance of the ESDALCL6-4P6A?
The typical capacitance is 0.35 pF. - What is the leakage current of the ESDALCL6-4P6A?
The typical leakage current is 1 nA. - What are the ESD protection levels of the ESDALCL6-4P6A?
The ESDALCL6-4P6A provides ESD protection up to IEC 61000-4-2 Level 4 (±15 kV air, ±8 kV contact). - Is the ESDALCL6-4P6A lead-free and environmentally compliant?
Yes, it is lead-free and ECOPACK® compliant, and it meets UL94 V0 for flammability standards. - What is the operating temperature range of the ESDALCL6-4P6A?
The operating temperature range is -40°C to 150°C. - In what types of applications is the ESDALCL6-4P6A commonly used?
It is commonly used in smartphones, tablets, laptops, automotive infotainment systems, industrial control systems, medical devices, and consumer electronics. - What package type does the ESDALCL6-4P6A come in?
The ESDALCL6-4P6A comes in a SOT323 (SC-70-6) package. - How many channels does the ESDALCL6-4P6A have?
The ESDALCL6-4P6A has 6 channels. - Who manufactures the ESDALCL6-4P6A?
The ESDALCL6-4P6A is manufactured by STMicroelectronics.
