Overview
The DSILC6-4P6 is a monolithic application-specific discrete component designed by STMicroelectronics for the protection of high-speed interfaces against electrostatic discharge (ESD). This component is particularly suited for safeguarding interfaces such as USB 2.0, Ethernet, display, and camera serial interfaces (LVDS).
Key Specifications
| Parameter | Value |
|---|---|
| Package Type | SOT-666 (Surface Mount) |
| Number of Elements | Quad-Element Uni-Directional |
| Power Rating | 90W |
| Pins | 6 |
| Application | ESD Protection for High-Speed Interfaces |
Key Features
- Monolithic design for robust ESD protection
- Quad-element uni-directional TVS diode array
- High power rating of 90W
- Suitable for high-speed interfaces such as USB 2.0, Ethernet, and LVDS
- Compact SOT-666 surface mount package
Applications
- Protection of USB 2.0 interfaces
- Protection of Ethernet interfaces
- Protection of display interfaces (e.g., LVDS)
- Protection of camera serial interfaces (e.g., LVDS)
- General high-speed data transmission lines
Q & A
- What is the primary function of the DSILC6-4P6?
The primary function of the DSILC6-4P6 is to provide ESD protection for high-speed interfaces.
- What types of interfaces can the DSILC6-4P6 protect?
The DSILC6-4P6 can protect interfaces such as USB 2.0, Ethernet, display, and camera serial interfaces (LVDS).
- What is the package type of the DSILC6-4P6?

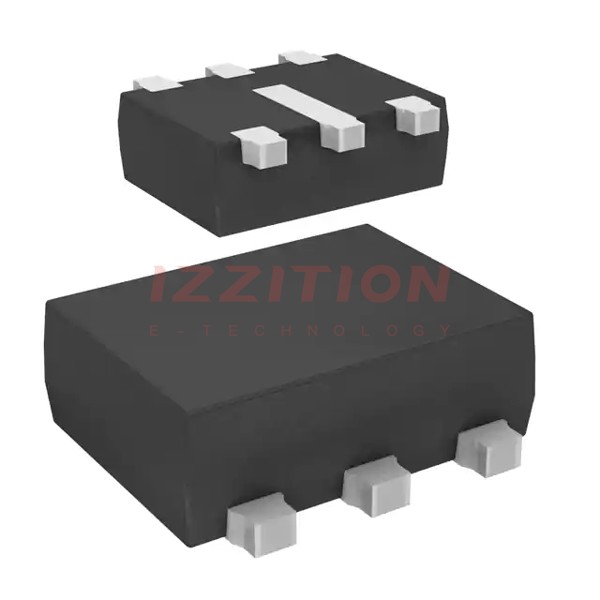

The DSILC6-4P6 comes in a SOT-666 surface mount package.
- How many elements does the DSILC6-4P6 contain?
The DSILC6-4P6 is a quad-element uni-directional TVS diode array.
- What is the power rating of the DSILC6-4P6?
The power rating of the DSILC6-4P6 is 90W.
- Why is the DSILC6-4P6 suitable for high-speed interfaces?
The DSILC6-4P6 is designed to protect high-speed interfaces due to its monolithic design and high power rating.
- Where can I find the datasheet for the DSILC6-4P6?
The datasheet for the DSILC6-4P6 can be found on the STMicroelectronics website or through distributors like Mouser and Digi-Key.
- What is the significance of the SOT-666 package?
The SOT-666 package is a compact surface mount package that is suitable for space-constrained designs.
- Can the DSILC6-4P6 be used in general data transmission lines?
Yes, the DSILC6-4P6 can be used to protect general high-speed data transmission lines.
- Where can I purchase the DSILC6-4P6?
The DSILC6-4P6 can be purchased from various electronic component distributors such as Digi-Key, Mouser, and RS Components.
