BULD741T4
  • Share:

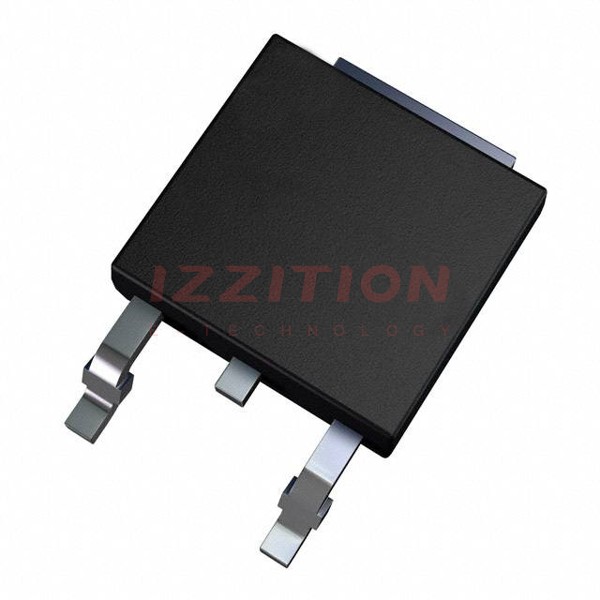

STMicroelectronics BULD741T4

Manufacturer No:
BULD741T4
Manufacturer:
STMicroelectronics
Package:
Tape & Reel (TR)
Description:
TRANS NPN 400V 2.5A DPAK
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BULD741T4 is a high voltage fast-switching NPN power transistor manufactured by STMicroelectronics. This device is produced using high voltage multi-epitaxial planar technology, which enhances its switching speeds and high voltage capability. It is designed to provide high performance and reliability in various power management applications.

Key Specifications

ParameterValue
Transistor TypeNPN
Collector-Emitter Voltage (Vce)1.05 kV
Collector Current (Ic)2.5 A
Power Dissipation (Pd)30 W
Package TypeTO-252 (DPAK), Surface Mount
Operating Temperature Range-65°C to 150°C
RoHS ComplianceEcopack2

Key Features

  • High voltage capability up to 1.05 kV
  • Fast-switching performance
  • High collector current level of 2.5 A
  • Intrinsic ruggedness due to increased intermediate layer
  • High power dissipation of 30 W
  • Surface mount package (TO-252 DPAK)
  • Wide operating temperature range from -65°C to 150°C
  • RoHS compliant (Ecopack2)

Applications

The BULD741T4 is suitable for a variety of power management and switching applications, including but not limited to:

  • Power supplies and DC-DC converters
  • Motor control and drive systems
  • High voltage switching circuits
  • Automotive and industrial power systems

Q & A

  1. What is the collector-emitter voltage of the BULD741T4?
    The collector-emitter voltage (Vce) of the BULD741T4 is 1.05 kV.
  2. What is the maximum collector current of the BULD741T4?
    The maximum collector current (Ic) of the BULD741T4 is 2.5 A.
  3. What is the power dissipation of the BULD741T4?
    The power dissipation (Pd) of the BULD741T4 is 30 W.
  4. What package type does the BULD741T4 use?
    The BULD741T4 uses a TO-252 (DPAK) surface mount package.
  5. What is the operating temperature range of the BULD741T4?
    The operating temperature range of the BULD741T4 is from -65°C to 150°C.
  6. Is the BULD741T4 RoHS compliant?
    Yes, the BULD741T4 is RoHS compliant (Ecopack2).
  7. What technology is used to manufacture the BULD741T4?
    The BULD741T4 is manufactured using high voltage multi-epitaxial planar technology.
  8. What are some typical applications of the BULD741T4?
    The BULD741T4 is typically used in power supplies, DC-DC converters, motor control systems, high voltage switching circuits, and automotive and industrial power systems.
  9. What are the key features of the BULD741T4?
    The key features include high voltage capability, fast-switching performance, high collector current level, intrinsic ruggedness, and high power dissipation.
  10. Where can I purchase the BULD741T4?
    The BULD741T4 can be purchased from various electronic component distributors such as Mouser, element14, and the STMicroelectronics eStore.

Product Attributes

Transistor Type:NPN
Current - Collector (Ic) (Max):2.5 A
Voltage - Collector Emitter Breakdown (Max):400 V
Vce Saturation (Max) @ Ib, Ic:1.5V @ 600mA, 2A
Current - Collector Cutoff (Max):250µA
DC Current Gain (hFE) (Min) @ Ic, Vce:25 @ 450mA, 3V
Power - Max:30 W
Frequency - Transition:-
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package:DPAK
0 Remaining View Similar

In Stock

$1.08
474

Please send RFQ , we will respond immediately.
