BUL58D
  • Share:

STMicroelectronics BUL58D

Manufacturer No:
BUL58D
Manufacturer:
STMicroelectronics
Package:
Tube
Description:
TRANS NPN 450V 8A TO220
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BUL58D is a high voltage fast-switching NPN power transistor manufactured by STMicroelectronics. It is produced using high voltage Multi Epitaxial Planar technology, which enhances switching speeds while maintaining a wide Reverse Bias Safe Operating Area (RBSOA). This transistor is part of the BUL series, designed for use in lighting applications and low-cost switch-mode power supplies.

Key Specifications

ParameterValue
Part NumberBUL58D
Marketing StatusActive

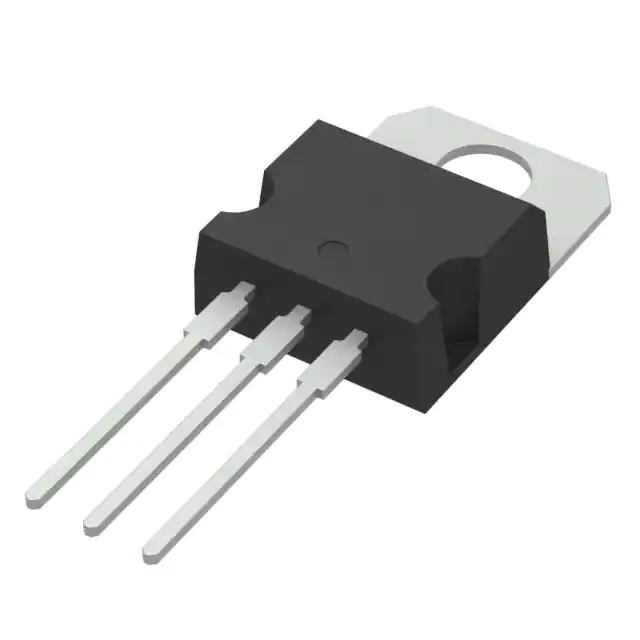

PackageTO-220
GradeIndustrial
RoHS Compliance GradeEcopack2
Collector Current (Ic)8 A
Collector-Emitter Voltage (Vce)450 V
Operating Temperature (°C)-40 to 150

Key Features

  • Integrated antiparallel collector-emitter diode
  • High ruggedness
  • Very high switching speed
  • Low base-drive requirements
  • High voltage capability
  • NPN transistor
  • Minimum lot-to-lot spread for reliable operation
  • Fully characterised at 125°C
  • Low spread of dynamic parameters

Applications

The BUL58D is designed for use in various applications, including lighting systems and low-cost switch-mode power supplies. Its high voltage and fast-switching capabilities make it suitable for a range of power management and control systems.

Q & A

  1. What is the BUL58D transistor?
    The BUL58D is a high voltage fast-switching NPN power transistor manufactured by STMicroelectronics.
  2. What technology is used in the BUL58D?
    The BUL58D is produced using high voltage Multi Epitaxial Planar technology.
  3. What are the typical applications of the BUL58D?
    The BUL58D is used in lighting applications and low-cost switch-mode power supplies.
  4. What is the collector current rating of the BUL58D?
    The collector current rating of the BUL58D is 8 A.
  5. What is the collector-emitter voltage rating of the BUL58D?
    The collector-emitter voltage rating of the BUL58D is 450 V.
  6. What is the operating temperature range of the BUL58D?
    The operating temperature range of the BUL58D is -40 to 150°C.
  7. What package type does the BUL58D come in?
    The BUL58D comes in a TO-220 package.
  8. Is the BUL58D RoHS compliant?
    Yes, the BUL58D is RoHS compliant with an Ecopack2 grade.
  9. What are some key features of the BUL58D?
    Key features include integrated antiparallel collector-emitter diode, high ruggedness, very high switching speed, and low base-drive requirements.
  10. Where can I find more detailed specifications and datasheets for the BUL58D?
    You can find detailed specifications and datasheets on the STMicroelectronics official website or through distributors like Digi-Key and RS Components.

Product Attributes

Transistor Type:NPN
Current - Collector (Ic) (Max):8 A
Voltage - Collector Emitter Breakdown (Max):450 V
Vce Saturation (Max) @ Ib, Ic:2V @ 1A, 5A
Current - Collector Cutoff (Max):200µA
DC Current Gain (hFE) (Min) @ Ic, Vce:5 @ 5A, 5V
Power - Max:85 W
Frequency - Transition:-
Operating Temperature:150°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-220-3
Supplier Device Package:TO-220
0 Remaining View Similar

In Stock

$1.43
84

Please send RFQ , we will respond immediately.

Same Series
CWN-300-10-0000
CWN-300-10-0000
CONN HEADER R/A 10POS 2.54MM
CWN-300-40-0000
CWN-300-40-0000
CONN HEADER R/A 40POS 2.54MM

Similar Products

Part Number BUL58D BUL38D
Manufacturer STMicroelectronics STMicroelectronics
Product Status Active Active
Transistor Type NPN NPN
Current - Collector (Ic) (Max) 8 A 5 A
Voltage - Collector Emitter Breakdown (Max) 450 V 450 V
Vce Saturation (Max) @ Ib, Ic 2V @ 1A, 5A 1.1V @ 750mA, 3A
Current - Collector Cutoff (Max) 200µA 250µA
DC Current Gain (hFE) (Min) @ Ic, Vce 5 @ 5A, 5V 10 @ 10mA, 5V
Power - Max 85 W 80 W
Frequency - Transition - -
Operating Temperature 150°C (TJ) 150°C (TJ)
Mounting Type Through Hole Through Hole
Package / Case TO-220-3 TO-220-3
Supplier Device Package TO-220 TO-220
