Overview

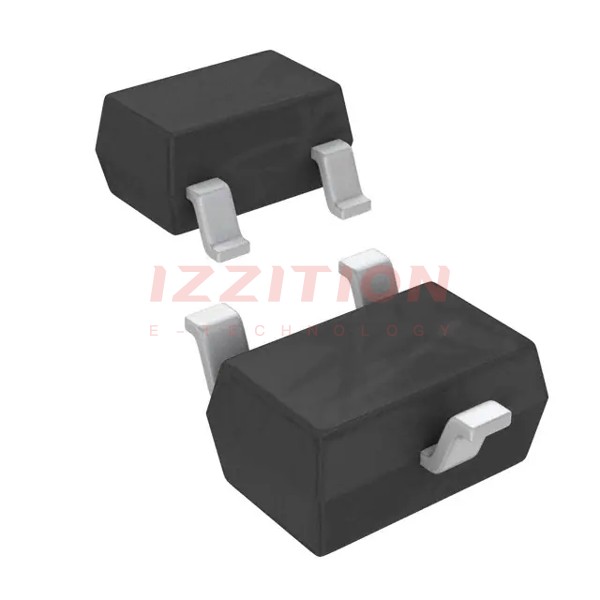

The BC857CW-AU_R1_000A1 is a PNP general-purpose transistor manufactured by Panjit International Inc. This transistor is part of the BC857 series, known for its versatility in various electronic applications. It is housed in a small SOT323 (SC-70) surface-mounted device (SMD) plastic package, making it suitable for compact and efficient designs.
Key Specifications
| Parameter | Value |
|---|---|
| Type | PNP General-Purpose Transistor |
| Package | SOT323 (SC-70) |
| Collector-Base Voltage (VCB) | 65 V |
| Collector-Emitter Voltage (VCE) | 65 V |
| Emitter-Base Voltage (VEB) | 5 V |
| Collector Current (IC) | 100 mA |
| Power Dissipation (Ptot) | 200 mW |
| Current Gain (hFE) | 420 - 800 |
| Junction Temperature (TJ) | 150°C |
| Transition Frequency (fT) | 100 MHz |
Key Features
- Low current capability up to 100 mA.
- Low voltage operation up to 65 V.
- High current gain (hFE) ranging from 420 to 800.
- Compact SOT323 (SC-70) package for space-efficient designs.
- Suitable for general-purpose amplifier and switching applications.
Applications
The BC857CW-AU_R1_000A1 transistor is widely used in various electronic applications, including:
- General-purpose amplification.
- Switching circuits.
- Automotive electronics.
- Industrial control systems.
- Consumer electronics.
Q & A
- What is the maximum collector current of the BC857CW-AU_R1_000A1 transistor?
The maximum collector current is 100 mA. - What is the package type of the BC857CW-AU_R1_000A1 transistor?
The package type is SOT323 (SC-70). - What are the typical applications of the BC857CW-AU_R1_000A1 transistor?
It is used in general-purpose amplification, switching circuits, automotive electronics, industrial control systems, and consumer electronics. - What is the maximum junction temperature of the BC857CW-AU_R1_000A1 transistor?
The maximum junction temperature is 150°C. - What is the transition frequency of the BC857CW-AU_R1_000A1 transistor?
The transition frequency is 100 MHz. - What is the current gain range of the BC857CW-AU_R1_000A1 transistor?
The current gain (hFE) ranges from 420 to 800. - Is the BC857CW-AU_R1_000A1 transistor RoHS compliant?
Yes, the BC857CW-AU_R1_000A1 transistor is RoHS compliant. - What is the power dissipation of the BC857CW-AU_R1_000A1 transistor?
The power dissipation is 200 mW. - What is the emitter-base voltage of the BC857CW-AU_R1_000A1 transistor?
The emitter-base voltage is 5 V. - Where can I purchase the BC857CW-AU_R1_000A1 transistor?
You can purchase it from various electronic component distributors such as Mouser, Avnet, and others.
