BC857C-AU_R1_000A1
  • Share:

Panjit International Inc. BC857C-AU_R1_000A1

Manufacturer No:
BC857C-AU_R1_000A1
Manufacturer:
Panjit International Inc.
Package:
Tape & Reel (TR)
Description:
TRANS PNP 45V 0.1A SOT23
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

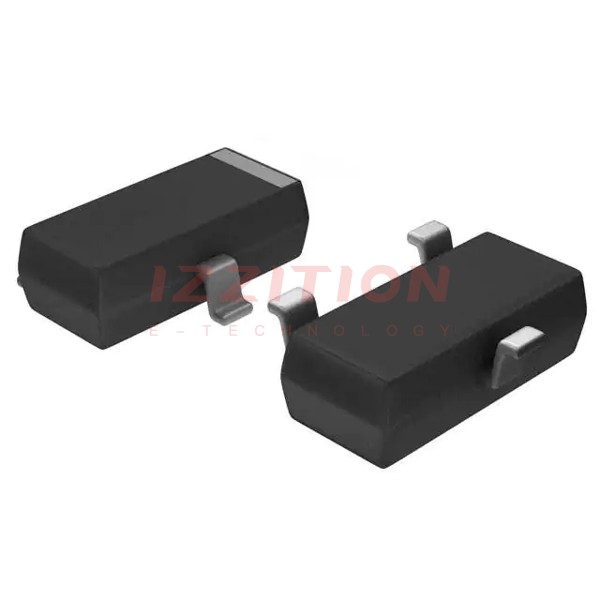

The BC857C-AU_R1_000A1, similar to the BC857C from Nexperia, is a 65 V, 100 mA PNP general-purpose transistor. It is packaged in a small SOT23 (TO-236AB) surface-mounted device (SMD) plastic package. This transistor is designed for low current and low voltage applications, making it suitable for a wide range of general-purpose switching and amplification tasks.

Key Specifications

ParameterValueUnit
Collector-Emitter Voltage (VCEO)-45V
Collector-Base Voltage (VCBO)-50V
Emitter-Base Voltage (VEBO)-5.0V
Collector Current (IC)-100mA
DC Current Gain (hFE)420 - 800
Junction Temperature (TJ)-55 to +150°C
Transition Frequency (fT)100MHz
PackageSOT23

Key Features

  • PNP general-purpose transistor in SOT23 package.
  • Low current (max. 100 mA) and low voltage (max. 65 V) capabilities.
  • High DC current gain (hFE) ranging from 420 to 800.
  • AEC-Q101 qualified and RoHS compliant.
  • Suitable for general-purpose switching and amplification.

Applications

The BC857C-AU_R1_000A1 is versatile and can be used in various applications across different industries, including:

  • Automotive systems.
  • Industrial control systems.
  • Consumer electronics.
  • Mobile and wearable devices.
  • Power and computing systems.

Q & A

  1. What is the maximum collector-emitter voltage of the BC857C-AU_R1_000A1?
    The maximum collector-emitter voltage is -45 V.
  2. What is the maximum collector current of the BC857C-AU_R1_000A1?
    The maximum collector current is -100 mA.
  3. What is the DC current gain range of the BC857C-AU_R1_000A1?
    The DC current gain ranges from 420 to 800.
  4. What package type is used for the BC857C-AU_R1_000A1?
    The transistor is packaged in a SOT23 (TO-236AB) surface-mounted device (SMD) plastic package.
  5. Is the BC857C-AU_R1_000A1 RoHS compliant?
    Yes, the BC857C-AU_R1_000A1 is RoHS compliant.
  6. What are the typical applications of the BC857C-AU_R1_000A1?
    The transistor is suitable for general-purpose switching and amplification in various industries including automotive, industrial, consumer electronics, and more.
  7. What is the junction temperature range of the BC857C-AU_R1_000A1?
    The junction temperature range is -55 to +150 °C.
  8. Is the BC857C-AU_R1_000A1 AEC-Q101 qualified?
    Yes, the BC857C-AU_R1_000A1 is AEC-Q101 qualified.
  9. What is the transition frequency of the BC857C-AU_R1_000A1?
    The transition frequency is 100 MHz.
  10. Where can I find more detailed specifications and datasheets for the BC857C-AU_R1_000A1?
    You can find detailed specifications and datasheets on the manufacturer's website or through authorized distributors like Mouser or Digi-Key.

Product Attributes

Transistor Type:PNP
Current - Collector (Ic) (Max):100 mA
Voltage - Collector Emitter Breakdown (Max):45 V
Vce Saturation (Max) @ Ib, Ic:650mV @ 5mA, 100mA
Current - Collector Cutoff (Max):15nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:420 @ 2mA, 5V
Power - Max:330 mW
Frequency - Transition:200MHz
Operating Temperature:-50°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-236-3, SC-59, SOT-23-3
Supplier Device Package:SOT-23
0 Remaining View Similar

In Stock

$0.22
4,267

Please send RFQ , we will respond immediately.

Same Series
DD15S2S5WV50/AA
DD15S2S5WV50/AA
CONN D-SUB HD RCPT 15P SLDR CUP
CBC46W4S100T2X
CBC46W4S100T2X
CONN D-SUB RCPT 46POS CRIMP
RD15S10HE30/AA
RD15S10HE30/AA
CONN D-SUB RCPT 15POS CRIMP
DD15S20W0S/AA
DD15S20W0S/AA
CONN D-SUB HD RCPT 15P SLDR CUP
CBC46W4S100E20/AA
CBC46W4S100E20/AA
CONN D-SUB RCPT 46POS CRIMP
DD26S200TX
DD26S200TX
CONN D-SUB HD RCPT 26P SLDR CUP
DD44S32000X
DD44S32000X
CONN D-SUB HD RCPT 44P VERT SLDR
DD26S200E0/AA
DD26S200E0/AA
CONN D-SUB HD RCPT 26P SLDR CUP
DD62M32S0V3S/AA
DD62M32S0V3S/AA
CONN D-SUB HD PLUG 62P VERT SLDR
DD44S32S600X
DD44S32S600X
CONN D-SUB HD RCPT 44P VERT SLDR
DD26S20W0X/AA
DD26S20W0X/AA
CONN D-SUB HD RCPT 26P SLDR CUP
DD44S32S50TX/AA
DD44S32S50TX/AA
CONN D-SUB HD RCPT 44P VERT SLDR

Similar Products

Part Number BC857C-AU_R1_000A1 BC857CW-AU_R1_000A1 BC857B-AU_R1_000A1
Manufacturer Panjit International Inc. Panjit International Inc. Panjit International Inc.
Product Status Active Active Active
Transistor Type PNP PNP PNP
Current - Collector (Ic) (Max) 100 mA 100 mA 100 mA
Voltage - Collector Emitter Breakdown (Max) 45 V 45 V 45 V
Vce Saturation (Max) @ Ib, Ic 650mV @ 5mA, 100mA 650mV @ 5mA, 100mA 650mV @ 5mA, 100mA
Current - Collector Cutoff (Max) 15nA (ICBO) 15nA (ICBO) 15nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 420 @ 2mA, 5V 420 @ 2mA, 5V 220 @ 2mA, 5V
Power - Max 330 mW 250 mW 330 mW
Frequency - Transition 200MHz 200MHz 200MHz
Operating Temperature -50°C ~ 150°C (TJ) -55°C ~ 150°C (TJ) -50°C ~ 150°C (TJ)
Mounting Type Surface Mount Surface Mount Surface Mount
Package / Case TO-236-3, SC-59, SOT-23-3 SC-70, SOT-323 TO-236-3, SC-59, SOT-23-3
Supplier Device Package SOT-23 SOT-323 SOT-23
