Overview

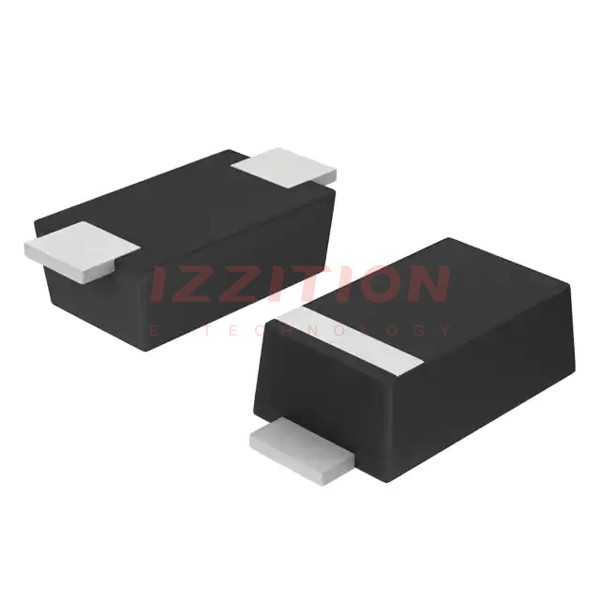

The NTS245SFT1G is a Schottky rectifier diode produced by onsemi, designed to offer low forward voltage drop and minimal reverse leakage current. This device is part of onsemi's trench-based Schottky rectifier technology, which enhances performance in various applications. The diode is packaged in a SOD123FL case, making it suitable for space-constrained designs. It is also Pb-Free and Halide-Free, complying with environmental regulations.
Key Specifications
| Parameter | Value |
|---|---|
| Part Number | NTS245SFT1G |
| Description | Schottky Diode, 45V, 2A, SOD123FL |
| Forward Voltage Drop | Low (typical for Schottky diodes) |
| Reverse Leakage Current @ Vr | 120 µA @ 45 V |
| Forward Surge Current (Ifsm) | 50 A |
| Minimum Operating Temperature | -65°C |
| Maximum Operating Temperature | +150°C |
| Package | SOD123FL |
| Lead Free Status / RoHS Status | Pb-Free and Halide-Free |
Key Features
- Low forward voltage drop, reducing power losses and improving efficiency.
- Minimal reverse leakage current, enhancing reliability and reducing heat generation.
- Trench-based Schottky rectifier technology for improved performance.
- Pb-Free and Halide-Free, compliant with environmental regulations.
- Wide operating temperature range (-65°C to +150°C), suitable for various environmental conditions.
- Compact SOD123FL package, ideal for space-constrained designs.
Applications
- Power supplies and DC-DC converters where low forward voltage drop is crucial.
- High-frequency switching applications due to its low reverse recovery time.
- Automotive and industrial systems requiring robust and reliable rectification.
- Consumer electronics where space and efficiency are key considerations.
Q & A
- What is the maximum forward current rating of the NTS245SFT1G?
The maximum forward current rating of the NTS245SFT1G is 2 A.
- What is the reverse leakage current of the NTS245SFT1G at 45 V?
The reverse leakage current is 120 µA at 45 V.
- What is the operating temperature range of the NTS245SFT1G?
The operating temperature range is -65°C to +150°C.
- Is the NTS245SFT1G Pb-Free and Halide-Free?
Yes, the NTS245SFT1G is Pb-Free and Halide-Free.
- What package type is the NTS245SFT1G available in?
The NTS245SFT1G is available in a SOD123FL package.
- What are the key benefits of the trench-based Schottky rectifier technology used in the NTS245SFT1G?
The key benefits include low forward voltage drop and minimal reverse leakage current, enhancing efficiency and reliability.
- Where can the NTS245SFT1G be used?
The NTS245SFT1G can be used in power supplies, DC-DC converters, automotive and industrial systems, and consumer electronics.
- What is the forward surge current rating of the NTS245SFT1G?
The forward surge current rating is 50 A.
- Does the NTS245SFT1G meet environmental regulations?
Yes, it is Pb-Free and Halide-Free, complying with environmental regulations.
- Why is the low forward voltage drop important in the NTS245SFT1G?
The low forward voltage drop reduces power losses and improves efficiency in various applications.
