Overview

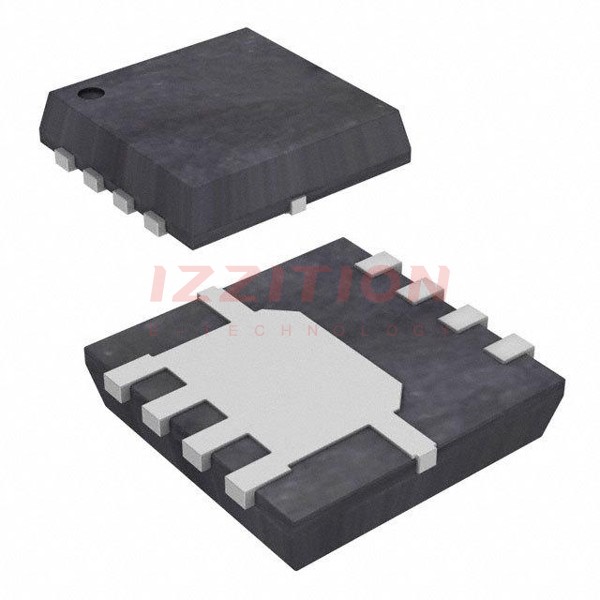

The NRVTS360ETFSWFTAG is a Very Low Leakage Trench-based Schottky Rectifier produced by onsemi. This component is designed to offer low forward voltage drop without high reverse leakage, making it ideal for applications requiring efficient and reliable rectification. The device features fast switching performance and soft recovery characteristics, packaged in a compact and thermally efficient 8-pin WDFN package.
Key Specifications
| Parameter | Value |
|---|---|
| Technology | Silicon (Si) |
| Forward Current (If) | 3 A |
| Repetitive Reverse Voltage (Vrrm) | 60 V |
| Forward Voltage (Vf) | 750 mV |
| Package Type | 8-Pin WDFN |
| Package Dimensions | 3.3 x 3.3 mm |
Key Features
- Very Low Leakage Trench-based Schottky Rectifier technology for low forward voltage drop and minimal reverse leakage.
- Fast switching performance with soft recovery characteristics.
- Compact and thermally efficient 8-pin WDFN package.
- High reliability and efficiency in rectification applications.
Applications
The NRVTS360ETFSWFTAG is suitable for a variety of applications where efficient rectification and fast switching are critical. These include:
- Power supplies and DC-DC converters
- High-frequency switching circuits
- Automotive and industrial power systems
- Renewable energy systems
Q & A
- What is the forward current rating of the NRVTS360ETFSWFTAG? The forward current rating is 3 A.
- What is the repetitive reverse voltage of the NRVTS360ETFSWFTAG? The repetitive reverse voltage is 60 V.
- What is the forward voltage drop of the NRVTS360ETFSWFTAG? The forward voltage drop is 750 mV.
- What package type does the NRVTS360ETFSWFTAG come in? It comes in an 8-Pin WDFN package.
- What are the key benefits of the Trench-based Schottky Rectifier technology in the NRVTS360ETFSWFTAG? The technology provides low forward voltage drop and minimal reverse leakage.
- What are some typical applications for the NRVTS360ETFSWFTAG? Typical applications include power supplies, DC-DC converters, high-frequency switching circuits, automotive and industrial power systems, and renewable energy systems.
- What are the dimensions of the WDFN package for the NRVTS360ETFSWFTAG? The package dimensions are 3.3 x 3.3 mm.
- Does the NRVTS360ETFSWFTAG have fast switching performance? Yes, it features fast switching performance with soft recovery characteristics.
- Is the NRVTS360ETFSWFTAG suitable for high-frequency applications? Yes, it is suitable for high-frequency applications due to its fast switching performance and low forward voltage drop.
- Where can I find detailed specifications for the NRVTS360ETFSWFTAG? Detailed specifications can be found on the datasheet available from onsemi’s official website or through distributors like Mouser, Digi-Key, and RS Components.
